Hackett WH-UBC Universal Beam Clamp 3,200 kg to 10,000 kg
Key Features
- High quality UBC Universal clamp range is precision engineered in W.L.L. capacities from 3,200 Kg to 10,000 kf
- Universal Beam Clamp has been designed not only for vertical use, but also for side load applications, where conventional clamps are not suitable.
- The Universal Beam Clamp is suitable for pulling and lifting at angles across the beam or as a semi-permanent anchor point.
- Fitted with an adjustable locking mechanism, ensuring secure clamping to the beam.
- Built-in suspension point for low headroom design.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Manufactured in accordance with BS EN13155: 2003 + A2: 2009 - Cranes - Safety – Non Fixed Load Lifting Attachments.
The William Hackett Universal Beam Clamp has been designed not only for vertical use, but also for side load applications, where conventional clamps are not suitable.
The Universal Beam Clamp is suitable for pulling and lifting at angles across the beam or as a semi-permanent anchor point.
It can be loaded at any angle and eliminates the use of spreader beams in various lifting operations.
Fitted with an adjustable locking mechanism, ensuring secure clamping to the beam.
Built-in suspension point for low headroom design.
Lightweight design allowing for quick clamping and unclamping.
W.L.L. capacities available at 3.2 tonnes, 5.0 tonnes and 10.0 tonnes and designed to accommodate a range of beam widths.

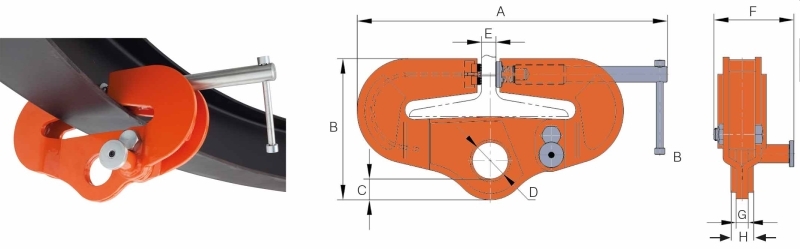

| Part Code |
WLL tonnes |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
H mm |
Beam Thickness mm |
Beam Width mm |
Mass kg |
| 028.320 | 3.20 | 550 | 237 | 28.0 | Ø60 | 32 | 133 | 20 | 20 | 25.4 | 125-204 | 14.70 |
| 028.500 | 5.00 | 615 | 275 | 37.5 | Ø75 | 32 | 157 | 24 | 44 | 25.4 | 125-305 | 28.30 |
| 028.1000 | 10.00 | 615 | 275 | 35.0 | Ø80 | 32 | 225 | 44 | 44 | 25.4 | 125-305 | 37.80 |
