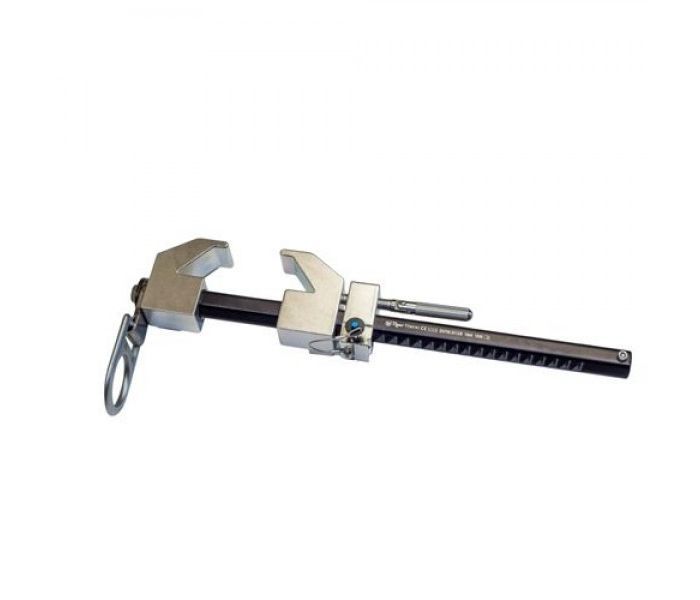

Tiger Fixed Type Single-Jaw Sliding Horizontal & Vertical Beam Anchor
Quick and versatile anchorage point for personal fall protection equipment CE Certified - CE 1019 Minimum Breaking Strength 22.3 kN (5,000 lb/2.27 tonnes) Capacity 140kg These units meet the requirements within EN 795:2012/B and ANSI/ASSE Z359.1-2007 We advise that structural calculations are carried out on all beams and supporting steelwork by qualified engineering departments to ensure safe operation. Range Main Features
Minimum Breaking Strength 22.3 kN (5,000 lb/2.27 tonnes)
Quick and versatile rigging point for personal fall protection equipmentEasy adjustment beam width ranges 2.5" to 24", 6.35cm to 60cmUnit weight from 1.9kg – 3.5kgThese units meet the requirements within EN 795:2012/B
Tiger Beam Anchors are used as anchorage connectors for personal fall arrest systems. They are designed to be attached to a Horizontal I-Beam. Single jaw sliding clamps can also be attached to a Vertical I-Beam. They might be used as an end termination for either a shock-absorbing lanyard or self-retracting lifeline for fall arrest, or with a positioning lanyard for fall restraint.
Certification:
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC. We advise that structural calculations are carried out on all beams and supporting steel work by qualified engineering departments to ensure safe operation.
Download technical data sheet
Technical Data
| Description | Product Code | A-Beam Flange Size | B(mm) | C(mm) | D(mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|
| Fixed Type Single-Jaw Sliding Horizontal & Vertical Beam Use | TYAA141 | 2.5” to 12” 6.35cm to 30.0cm | 531 | 209 | 76 | 2.54 |
| Fixed Type Single-Jaw Sliding Horizontal & Vertical Beam Use | TYAA142 | 2.5” to 18” 6.35cm to 45.0cm | 684 | 209 | 76 | 2.83 |
| Fixed Type Single-Jaw Sliding Horizontal & Vertical Beam Use | TYAA143 | 2.5” to 24” 6.35cm to 60.0cm | 781 | 209 | 76 | 3.12 |
