CAMLOK TKG-VHS "SELF WEIGHT" BALANCE CRANE FORKS
Key Features
- 4 models offer a lifting range of 200 kg to 5,000 kg capacities
- Up to 2,000 mm usable load height
- TKG-VHS range of crane forks are equipped with adjustable tines, adjustable self weight balancing system.
- For transporting rings or coils, simply push fork tines together. Easily adjustable tines for all pallet sizes. Supplied with chain for securing the load.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

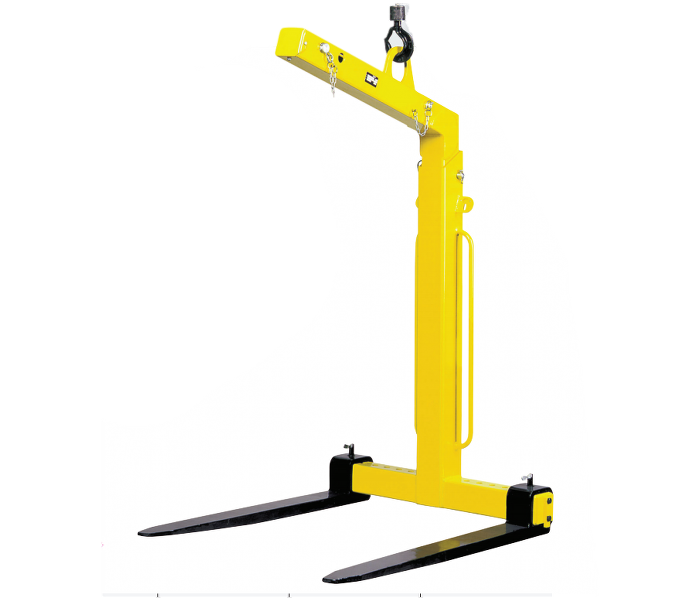

TKG-VHS "SELF WEIGHT" BALANCE CRANE FORKS
The TKG-VHS range of crane forks is equipped with adjustable tines, adjustable self-weight balancing system. Crane forks with self-weight balancing* tend to point the when being transported, this prevents the load from unintentionally slipping off the tines
The self-weight balancing mechanism returns the lifting point to the unloaded position wh down. For efficient operation of this mechanism, the load must be greater than 20% of the limit.
- The factor of safety 4: 1
- Maintenence free.
- Highly visible safety colour.
- For transporting rings or coils, simply push for
- Easily adjustable tines for all pallet sizes.
- Supplied with chain for securing the load.
*NB: The automatic balancing system requires a minimum
load of 20% of the crane forks working load limit.
| Model | WLL *kg |
Adjustment of tines (A) mm |
Useable height (B) mm |
Length of tines (C) mm |
Section of tines (D) mm |
Overall height (E) mm |
Weight kg |
| TKG1.0vhs | *200 - 1000 | 350 - 900 | 1100 - 1600 | 1000 | 100 x 30 | 1420 - 1920 | 140 |
| TKG2.0vhs | *400 - 2000 | 400 - 900 | 1300 - 2000 | 1000 | 120 x 40 | 1655 - 2355 | 220 |
| TKG3.0vhs | *600 - 3000 | 450 - 900 | 1300 - 2000 | 1000 | 120 x 50 | 1720 - 2420 | 280 |
| TKG5.0vhs | *1000 - 5000 | 500 - 1000 | 1300 - 2000 | 1000 | 150 x 60 | 1710 - 2410 | 380 |
This product is generally made to order - Lead Time 10 to 14 Working Days From Date Of Ordering
