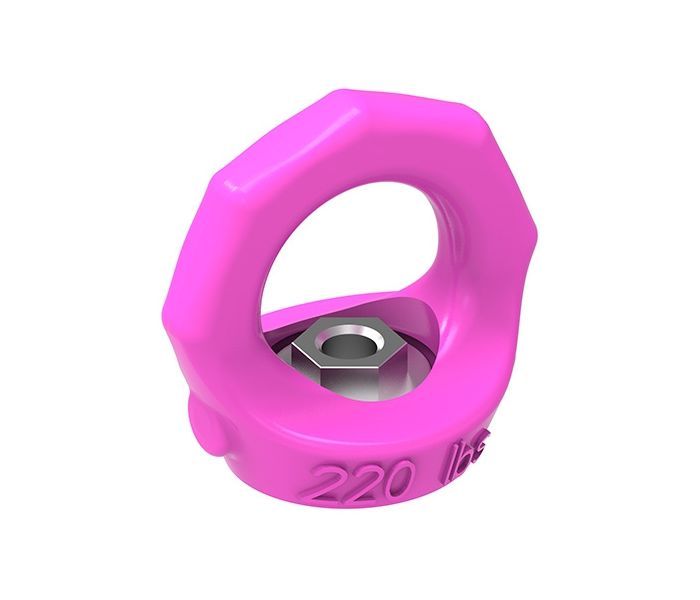

RUD VRM STARPOINT ( Eye Nut ) - Metric Thread
Key Features
- pivots 360° for adjustment in load direction
- clear marking of the minimum WLL
- quick and easy installation
- safety factor 4:1
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
RUD VRM STARPOINT ( Eye Nut ) - Metric Thread
Complies with the machinery directives 2006/42/EG
- pivots 360° for adjustment in load direction
- clear marking of the minimum WLL
- quick and easy installation
The body of the STARPOINT nut must be turnable 360° in bolted condition. Adjust in pull direction before attaching the sling means.
A plane bolting surface has to be assured. The nut thread must be engaged to 100 % with the bolt thread. The threaded pin mounted mustallow a perfect seat of the surface of the eye nut to the bolting surface.

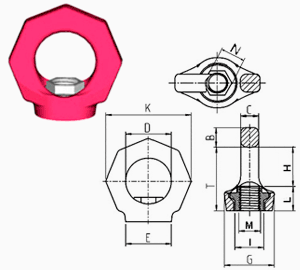

Sizes of VRM - see drawing VRS-StarPoint. Size „L“ corresponds with the minimum length of the bolt thread. In the case of flipping fixtures dies and moulds, under full load, we recommend using our double ball bearing power point collection. The given WLL is only valid in connection with threaded bolts of at least quality class 10.9.
| Type | WLL (t) |
Weight (kg) | A |
B |
C |
D |
E |
G |
H |
K |
L |
M |
Rmax |
S |
SW |
Ref.-No. |
| VRM-M6 | 0.1 | 0.06 | 28 | 9 | 7 | 20 | 23 | 28 | 16 | 37 | 11 | 6 | 16 | 13 | 9 | 7900786 |
| VRM-M8 | 0.3 | 0.1 | 34 | 11 | 8.5 | 25 | 25 | 28 | 20 | 47 | 14 | 8 | 20 | 16 | 12 | 7992989 |
| VRM-M10 | 0.4 | 0.1 | 34 | 11 | 8.5 | 25 | 25 | 28 | 20 | 47 | 14 | 10 | 20 | 16 | 12 | 7990311 |
| VRM-M12 | 0.75 | 0.2 | 42 | 13 | 10 | 30 | 30 | 34 | 25 | 56 | 17 | 12 | 24 | 20 | 14 | 7990312 |
| VRM-M16 | 1.5 | 0.3 | 51 | 15 | 14 | 35 | 35.5 | 40 | 30 | 65 | 21 | 16 | 30 | 22 | 19 | 7990314 |
| VRM-M20 | 2.3 | 0.5 | 57 | 17 | 16 | 40 | 40 | 50 | 34 | 75 | 23 | 20 | 37 | 29 | 24 | 7990315 |
| VRM-M24 | 3.2 | 0.9 | 69 | 21 | 19 | 48 | 50 | 60 | 40 | 90 | 29 | 24 | 45 | 35 | 30 | 7990316 |
| VRM-M30 | 4.5 | 1.5 | 86 | 26 | 24 | 60 | 60 | 75 | 52 | 112 | 34 | 30 | 56 | 44 | 36 | 7993008 |
