Thern 4WM2-CE 907 Kg with brake (for lifting) – enclosed gearing – drill driveable - Manual Drum Winches - Winches - Lifting, Hoisting and Winching

In stock
SKU
250040

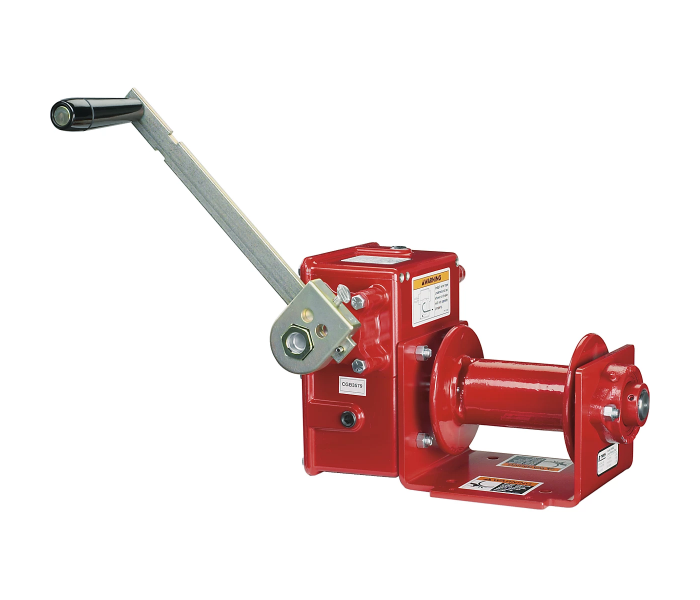

Thern 4WM2-CE 907 Kg with brake (for lifting) – enclosed gearing – drill driveable

Shipped direct from Manufacturer partner - Despatch generally 2 weeks - Prices ex works, for carriage and despatch request quotation to your address.

£1,387.20 £1,156.00
In stock
Quantity

Key Features

  • Machine Cut Worm Gears - For accurate operation and long lasting service.
  • Hex drive and handle are included. 4WM2 can be power driven with a maximum 400 rpm drill-motor.
  • Equipped with an internal mechanical brake that provides positive load control for lifting applications.
  • Corrosion Resistant - Durable paint finish protects against corrosion in harsh environments.
  • Mounting Options Include floor, wall, or ceiling. Adapter plate may be required, contact us
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

4WM2-CE 907 Kg with brake (for lifting) – enclosed gearing – drill driveable

QUICK FACTS

  • Up to 907 kg capacity
  • Machine-cut worm gears
  • Automatic brake
  • Mounting options
  • Corrosion resistant
  • Two-Year Limited Warranty
  • Ropes sold separately

Machine-Cut Bronze Gears Bronze worm gears reduce noise, enhance precision, and extend service life while facilitating
drill-drivable operation

Flexible Operation Design - Operate winch using the adjustable handle or portable drill drive for longer lift applications that lack a permanent power supply. Drill drive operation* allows faster lifting/lowering speed (400 RPM Drive Maximum).

Enclosed Oil Bath - An oil bath provides continuous lubrication of gearbox components to minimize wear, extend life, and reduce maintenance

Large-Diameter Drum- Large diameter drum extends wire rope life and increases aluminium gear Box travel distance. Lightweight, corrosion-resistant design enhances portability and increases service life.

Worm Gear Hand Winches Performance Characteristics — Metric



Load Rating



Drum Capacity1



Model No.

Description

1st Layer

Mid Drum

Full Drum

Wire Rope Dia.

1st Layer

Mid Drum

Full Drum

Gear Ratio

Force to Lift 1000 lb

Approx. Ship Wt.



(kg)

(kg)

(kg)

(mm)

(m)

(m)

(m)



(kg)

(kg)

4WM2-CE

907 kg — enclosed gearing with brake (for lifting) – Drill Driveable

907.1

680.3

544.3

6.3

3.3

10.6

23.4

32:1

6.3

18.5

 Actual drum capacities may be 25-30% less, due to nonuniform winding. Wire rope tension will also affect drum capacity. 2 Approximate handle force required to lift an empty drum and maximum handle length.

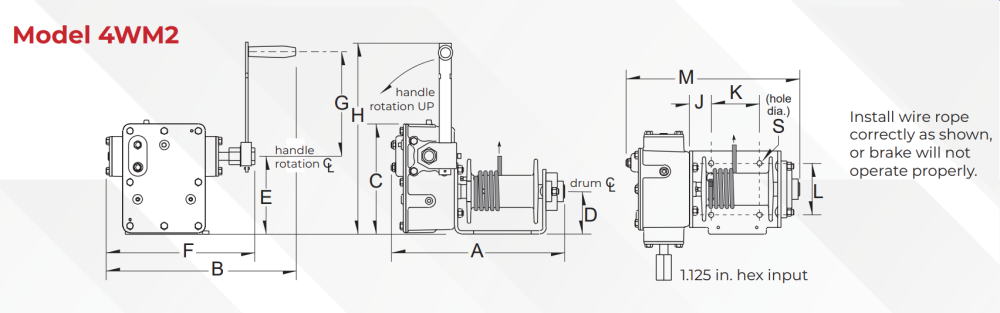

4WM2-CE-Diagram

Worm Gear Hand Winches — Metric Dimensions

Model No.

Drum Dia.

Flange Dia.

Drum Width

A

B

C

D

E

F

G

H

J

K

L

M

S (hole dia.)

T



(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

4WM2

63.5

127

127

342.9

395.2

217.4

84.0

153.4

293.6

268.9

439.4

44.4

95.2

101.6

342.9

10.4

IMPORTANT: It is the owner’s or operator’s responsibility to determine the suitability of the equipment to its intended use. Study all applicable codes, manuals and regulations. Be sure to read the Owner’s Manual supplied with the equipment before operating it.
