Hand winch with load pressure brake model OMEGA-ATEX Lifting capacity 1000 daN

Use in the areas EX II 2 DG ck 195° C (II T3)

The hand winch OMEGA Ex is a completely new construction and was developed especially for the high safety requirements in potentially explosive atmospheres.
All components of the OMEGA-Ex are designed to avoid effectively an inadmissible heating of the surfaces. Carefully selected materials and the sophisticated construction of the winch prevent the occurrence of mechanically caused sparks, for example by the intrusion of foreign materials.

**recommended rope: DIN 3069 SE 1960 N/mm² - Wire ropes are sold separately


Features

• Winch housing made of aluminium permanent mould casting for a low own weight, rope drum made of steel, chemically nickel-plated for a high versatility.
• Integrated load pressure brake.
• Closed gear with oil bath lubrication. The large oil volume ensures a high cooling effect.
• Equipotential bonding to avoid electrostatic charging.
• Pivotable crank handle.
• Suitable for ambient temperatures of -20° C to +40° C.

Application area
Chemical or petrochemical industry, biogas plants, paint shops

ATEX   Winch accessories

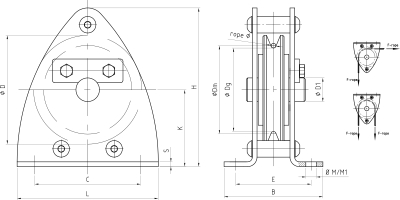

Wire rope sheave block for  ATEX  wire rope winches
model DSRB
Protection classification Ex II 2 GD IIB T4 135° C

Choose the easy way for rope guidance! - The steel sheave block for wire rope guidance DSRB S for BETA-EX electric wire rope winches. The dynamic all-rounder with variable rope and sheave diameters and cable deflections of up to 180° can move loads of up to 8 t with ease and absolute reliability.
Typical for Pfaff-silberblau is the high standard of quality:
With a sheave block for manual and powered operation, equipped with grease-filled, sealed ball bearings as standard.
A carefully coordinated system of application-specific cable diameters and matching turned precision cable groove ensures that the unit is also wear-free.
