Liftket Star Speedline Electric Chain Hoists - Electric Hoists - Hoists - Lifting, Hoisting and Winching

In stock
SKU
Liftket SLS

Liftket Star Speedline Electric Chain Hoists

Be the first to review this product
Price on Request
In stock
Quantity
Add to Compare

Key Features

  • 250 kg to 5,000 kg capacities
  • Dual lifting speed for accurate load positioning
  • Top lug, Top hook, Push travel and Power travel suspensions
  • 24VAC low voltage control, operating voltage 3ph / 380-415V / 50Hz, upper and lower limit switches, pendant with quick-change connection
  • Made in Germany - Ex stock UK
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

main product photo
For more information about this, or any of our other products contact our team on 0161 223 1990 or send us a message >

Liftket Star Speedline Electric Chain Hoists 250 kg to 5,000 kg

  • A selection of standard STAR LIFTKET hoists ready for preparation and despatch ex stock UK
  • Dual speed for accurate load placement
  • 24VAC low voltage control, operating voltage 3ph / 380-415V / 50Hz, upper and lower limit switches, pendant with quick-change connection
  • All Models are “Made in Germany” and of excellent quality
  • Up to around 20m hook path with one hole suspension eye, hook suspension (non-rotating), hand- or electric trolley (5+20m/min)

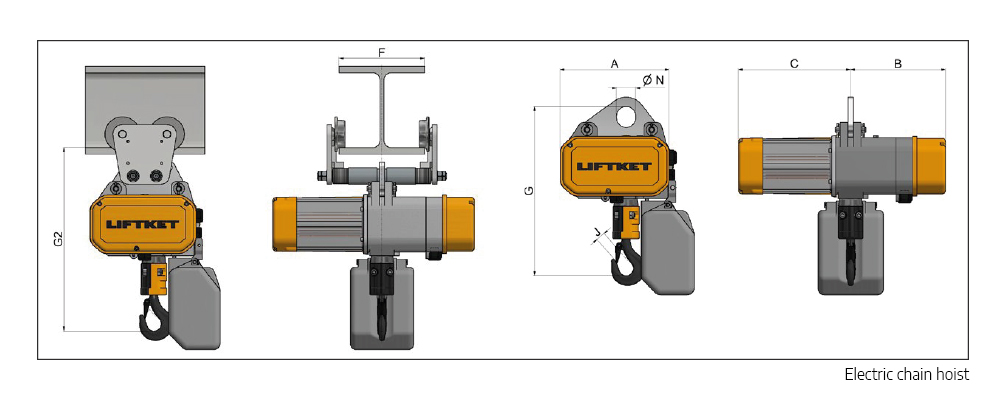

Hoist dimensions key

Hoist Specification Lifting speed [m/min] Model
WLL ISO / FEM Type   Chain Chain weight ED Switches Power [kW] Weight [kg]       Dimensions [mm]       Hook type Trolley type
kg   50 Hz     mm kg/m % s/h 50 Hz HH=3m; EAÖ A B C G (EAÖ) G2 ø N (EAÖ) J DIN 15401
250 M6 / 3m 8/2 031/51 1/1 5,2x15 0,59 50/25 300 0,32/0,08 18 212 192 220 380 406 37 20 012 EFW 500
500 M6 / 3m 4/1 031/51 2/1 5,2x15 0,59 50/25 300 0,32/0,08 21 212 192 220 428 454 37 22 025 EFW 500
500 M5 / 2m 8/2 071/54 1/1 7,2x21 1,13 60/25 240 0,90/0,20 42 266 232 274 413 460 47 22 025 EFW 2000
1000 M5 / 2m 4/1 071/54 2/1 7,2x21 1,13 60/25 240 0,90/0,20 47 266 232 274 514 561 47 28 05 EFW 2000
1000 M5 / 2m 6/1,5 071/55 1/1 7,2x21 1,13 60/25 240 1,1/0,20 42 266 232 274 413 460 47 22 025 EFW 2000
2000 M5 / 2m 3/0,75 071/55 2/1 7,2x21 1,13 60/25 240 1,1/0,20 47 266 232 274 514 561 47 28 05 EFW 2000
3200 M5 / 2m 4/1 091/55 2/1 9x27 1,8 60/25 240 3,0/0,75 97 357 283 359 620 655 58 30 1 EFW 3200
5000 M5 / 2m 5/1,25 111/52 2/1 11,3x31 2,85 40/25 150 4,4/1,1 130 357 291 410 740 807 67 42 2.5 EFW 6300

Beam Trolleys

  • The higher capacity wheels have undergone a special heat treatment procedure in order to reduce wear
  • The profile of the wheels makes them suitable for use on parallel and tapered flanges
  • All trolleys are equipped with safety drop stops
  • All parts are virtually maintenance-free
  • All the electric trolleys are equipped with our robust electromagnetic disk brake
  • All bolts, distance tubes and spacing washers are galvanized to protect them from corrosion

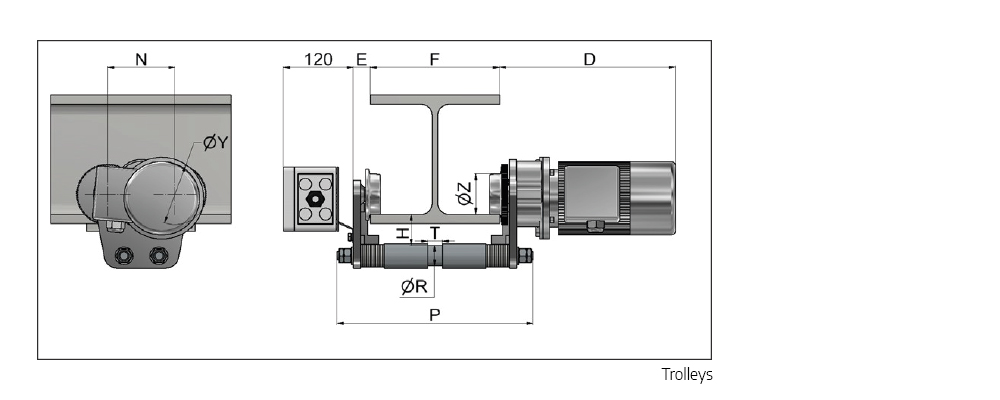

Trolley dimensions key

Trolley Specificatiom               Push trolley Trolley speed I Trolley power I D Trolley Nom. wheel Min.
Electric trolley Push trolley Beam width F ø T H ø Z W ø Y P Curve radius
weight 50 Hz 50 Hz power I load p. wheel
    mm mm mm mm mm mm mm kg m/min kW mm kN m
EFW 500 HFW 500 50-106 22 46 70 112 88 214 8 5+20 0,04/0,18 292 2,5 1
EFW 500 HFW 500 110-200 22 46 70 112 88 306 9 5+20 0,04/0,18 292 2,5 1
EFW 500 HFW 500 210-300 22 46 70 112 88 406 10 5+20 0,04/0,18 292 2,5 1
EEFW 1000 EHFW 1000 66-135 22 67 70 112 104/8 248 10 5+20 0,04/0,18 292 2,5 1
EEFW 1000 EHFW 1000 137-215 24 67 70 112 104/8 331 11 5+20 0,04/0,18 292 2,5 1
EEFW 1000 EHFW 1000 220-300 24 67 70 112 104/8 415 12 5+20 0,04/0,18 292 2,5 1
EEFW 2000 EHFW 2000 66-135 22 82 70 112 104/8 253 12 5+20 0,04/0,18 292 5 1
EEFW 2000 EHFW 2000 137-215 30 82 70 112 104/8 333 13 5+20 0,04/0,18 292 5 1
EEFW 2000 EHFW 2000 220-300 32 82 70 112 104/8 417 15 5+20 0,04/0,18 292 5 1
EEFW 3200 EHFW 3200 82-155 32 90 103 152 140/13 312 26 5+20 0,04/0,18 387 8 1,5
EEFW 3200 EHFW 3200 137-215 32 90 103 152 140/13 370 29 5+20 0,04/0,18 387 8 1,5
EEFW 3200 EHFW 3200 220-300 32 90 103 152 140/13 462 30 5+20 0,04/0,18 387 8 1,5
EFW 6300 HFW 6300 90-155 35 64 122 191 160 345 49 4+16 0,06/0,25 410 16 2
EFW 6300 HFW 6300 160-236 36 64 122 191 160 424 53 4+16 0,06/0,25 410 16 2
EFW 6300 HFW 6300 230-310 36 64 122 191 160 496 56 4+16 0,06/0,25 410 16 2

Specification subject to change without notice
