Camlok DC500 Quick Drum Clamp - Drum & Cylinder Handling - Material Handling
Camlok DC500 Quick Drum Clamp
Key Features
- Drum Clamp 500 kg capacity
- Clamp permist the safe handling of all types of flanged drums with or without lids.
- Can be used to lift sealed drums on their own, if an open drum is to be lifted without spilling the contents, two clamps can be used with either a two leg chain sling or a small lifting beam and two slings.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

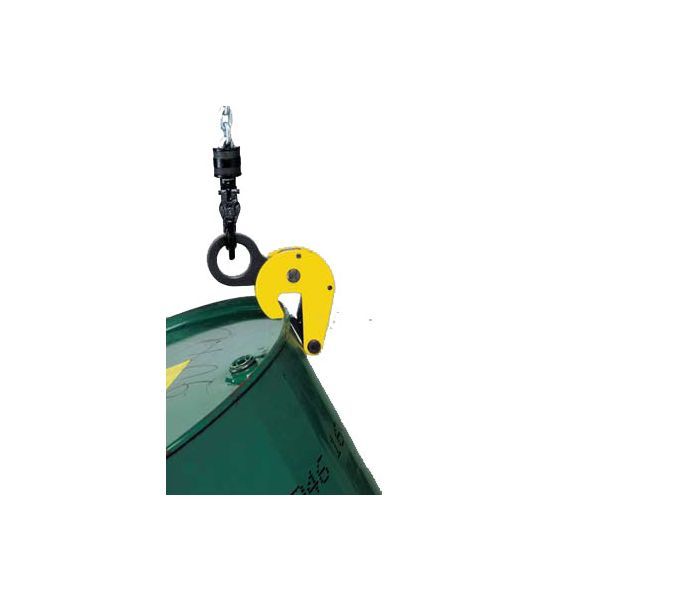

Camlok Drum Clamp 500kg SWL - Camlok DC 500 Drum Handling Clamp
DC500 Drum Clamp (Price is per clamp)
This clamp permits the safe handling of all types of flanged drums with or without lids.
DC500 clamps can be used to lift sealed drums on their own, if an open drum is to be lifted without spilling the contents, two clamps can be used with either a two-leg chain sling or a small lifting beam and two slings.
Restrictions
The clamp is not suitable for materials over 120° surface temperature. The working load limit of the clamp should be as close as possible to the actual load to be lifted.This ensures that the clamp is working at maximum efficiency. Loads below 20% of the working load limit should be avoided extra care must be taken when lifting drums of less than 20% of the rated jaw capacity. if an open drum is to be lifted without spilling the contents two clamps can be used with either a two-leg chain sling or a small lifting beam and two slings.
 |
 |

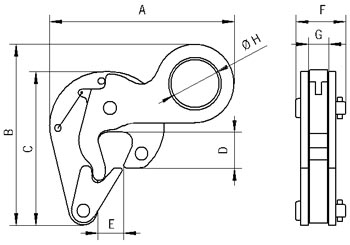

| Model | WLL | Weight (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) |
| DC500 | 500kg | 1.2 | 152 | 150 | 40 | 21 | 30 | 41 | 17 | 127 |
