Requirement: Pallet loading safety gate onto a narrow width loading platform for tall pallets access through warehouse opening with shared pedestrian access.
Problems:
- Loading platform 1.84 m wide x 1.19 m deep.
- Platform access to warehouse partially blocked on one side by a wall
- Warehouse opening also used for pedestrian opening with dis-used sliding door
Solution:

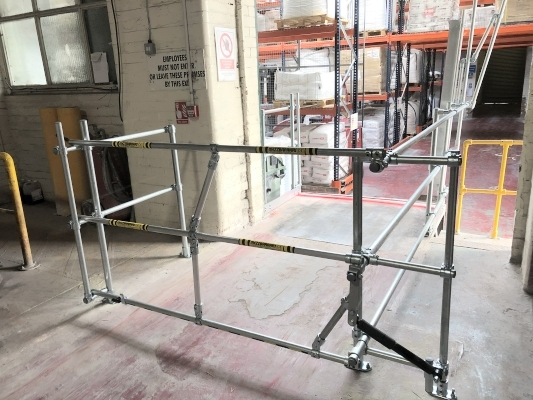

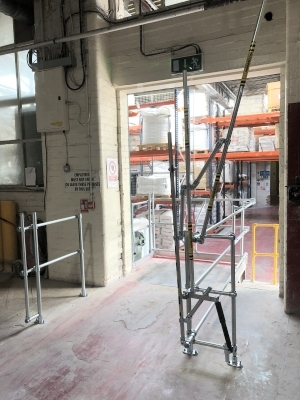

Supply of a Hi-Gate open top (Unlimited load height) pallet gate system in galvanised finish

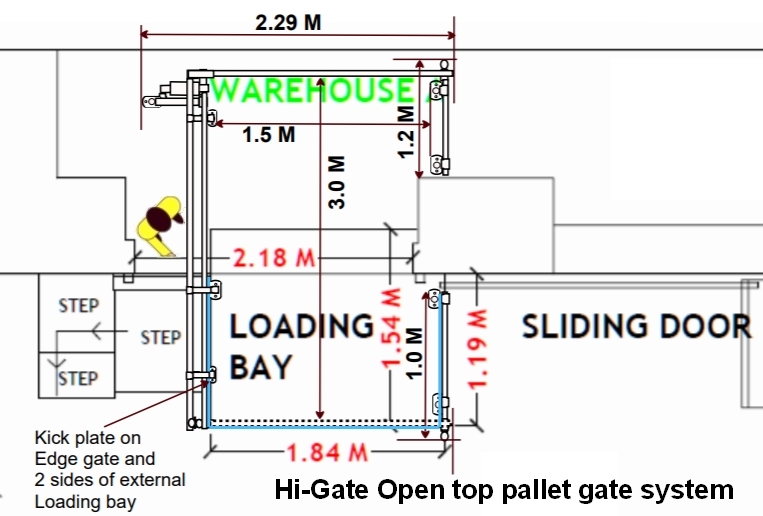

Bespoke design with split side frame positioned either side or wall.
Mechanism revised to inside adjacent to pedestrian access
Gate area with increased 3.0 m depth to provide a barrier between moving loads and pedestrians
We can help you too!
Q05927
The pallet gate design and manufacturing services (To ISO 9001) provided by our in-house mezzanine barrier division meet the recommendations of the Health and Safety Executive
Do you need help in providing a suitable HSE recommended double barrier system for your loading operation? - We here to help!
You can select from many different models in the Safety Pallet Gates section of this website. You will also find a helpful 'How do I select the right pallet gate?' guide. Or on each of the model pages, there is detailed information on what the model does and the full dimensions, etc. Plus there is a specific enquiry form for a custom application for you to use.
