Pewag winner profilift Lifting Eyebolt PLDW - DELTA - UNC Thread
Key Features
- The eyebolt has 360° rotatable, comes with an interchangeable special screw that is 100% crack-tested
- UNC thread 3/8" - 2.1/2"
- pewag winner profilift DELTA to withstand a 4-fold safety against break in all directions
- A strength class of 12.9 is used for the PLDW screw.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
PLDW Delta Lifting Point - UNC Threads
Product Description

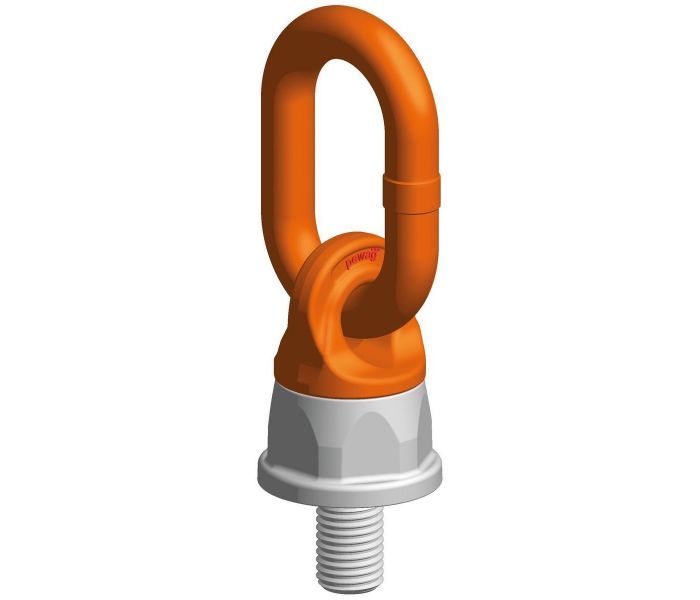

pewag winner profile lifting point Delta.
t PLDW Rotatable even under load. This lifting point comes with a ball bearing and is rotatable by 360° even under load. The high-strength lifting eye is movable by 180°. The special screw is 100% crack-tested, protected against corrosion and marked with the load capacity and thread size. In addition, each lifting point is marked with its serial number. The high-strength lifting eye comes with a ring and is wide enough to accommodate even larger hooks.
All load capacities, categorised by method of lifting, number of legs, and angle of inclination, are contained in a table that forms an integral part of the operating manual and is included with each lifting point. The pewag winner profilift delta lifting points are marked with the admissible load capacity for the most unfavourable application mode, allowing for an increased load capacity in case of vertical loads and four-fold safety against break in all directions.
A strength class of 12.9 is used for the PLDW screw.
Also available with peTAG upon request.
Product description
Permitted usage
For load capacities in the permitted directions of pull, please refer to the load capacity table.
Non-permitted usage
During assembly, ensure that improper loading cannot arise due to any of the following factors:
- Direction of pull is obstructed.
- Direction of pull is not within the indicated area.
- Loading ring rests against edges or loads.
Although the upper part is ball bearing and rotatable 360°, before usage you should adjust the ring in the correct direction of tension (fig. Permitted directions of pull). That applies in particular when lifting with multi leg slings. With a non-aligned ring (fig. Non-permitted directions of pull), the ring holder could turn suddenly under load, and it comes to high risk for the load and/or people.
The full operating manual contains further details and information on safe usage.
Calculating the required thread length (L):
L = H + S + K + X
H = Material height
S = Thickness of the washer
K = Height of the nut (depending on the thread size of the screw)
X = Excess length of the screw (twofold pitch of the screw)
L max. = n max.
In addition to the standard and maximum thread lengths, pewag also offers cut-to-length thread lengths. Customised and maximum thread lengths are supplied with a washer and a screw nut (applicable up to size M64). From thread size M72, the delivery is made with a nut (1.5 times the height) manufactured according to DIN 6331.
See dimensional image above for key to measurements
Specification table
|
Method of lifting |
|||||||||||||
| Number of legs | 1 | 1 | 2 | 2 | 2 | 2 | 3+4 | 3+4 | 2 | 3+4 | |||
| Angle of inclination | 0° | 90° | 0° | 90° | 0‑45° | 45‑60° | 0‑45° | 45‑60° | asymm° | asymm° | |||
| PLDW Delta | Code / Type | thread | fastening torque | load capacity | |||||||||
| [inch] | [ft-lbs] | [lbs] | |||||||||||
| PLDW U 1 1/4 | 1 1/4"-7 | 170 | 22,000 | 14,700 | 44,000 | 29,500 | 20,800 | 14,700 | 31,300 | 22,100 | 14,700 | 14,700 | |
| PLDW U 1 1/2 | 1 1/2"-6 | 330 | 27,500 | 17,600 | 55,100 | 35,200 | 24,600 | 17,600 | 37,400 | 26,400 | 17,600 | 17,600 | |
| PLDW U 3/4 | 3/4"-10 | 60 | 8,800 | 4,400 | 17,600 | 8,800 | 6,200 | 4,400 | 9,300 | 6,600 | 4,400 | 4,400 | |
| PLDW U 5/8 | 5/8"-11 | 22 | 6,100 | 3,300 | 12,300 | 6,600 | 4,600 | 3,300 | 7,000 | 4,900 | 3,300 | 3,300 | |
| PLDW U 1/2 | 1/2"-13 | 11 | 3,900 | 1,500 | 7,900 | 3,000 | 2,100 | 1,500 | 3,200 | 2,300 | 1,500 | 1,500 | |
| PLDW U 3/8 | 3/8"-16 | 7.5 | 2,640 | 1,100 | 5,290 | 2,200 | 1,550 | 1,100 | 2,330 | 1,650 | 1,100 | 1,100 | |
| PLDW U 1 | 1"-8 | 110 | 15,400 | 8,800 | 30,800 | 17,600 | 12,400 | 8,800 | 18,700 | 13,200 | 8,800 | 8,800 | |
| PLDW U 1 3/4 | 1 3/4"-5 | 440 | 35,200 | 22,000 | 70,500 | 44,000 | 31,100 | 22,000 | 46,700 | 33,000 | 22,000 | 22,000 | |
| PLDW U 2 1/2 | 2 1/2"-4 | 600 | 61,700 | 39,600 | 123,400 | 79,300 | 56,100 | 39,600 | 84,100 | 59,500 | 39,600 | 39,600 | |
| PLDW U 2 | 2"-4.5 | 440 | 35,200 | 27,500 | 70,500 | 55,100 | 38,900 | 27,500 | 58,400 | 41,300 | 27,500 | 27,500 | |
| 1) No stock item, delivery time on request | |||||||||||||
| Safety factor 4 | |||||||||||||
| Important: Subject to technical changes! | |||||||||||||
| PLDW Delta | Code / Type | thread | load capacity | a | b | c | d | e | n | n max |
|
weight | |
| [inch] | [lbs] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [lbs/pc.] | |||
| PLDW U 1 1/4 | 1 1/4"-7 | 14,700 | 1.97 | 2.76 | 3.62 | 0.91 | 2.83 | 1.77 | - | 2.36 | 5.7 | ||
|
PLDW Delta |
PLDW U 1 1/2 | 1 1/2"-6 | 17,600 | 1.97 | 3.58 | 4.72 | 0.91 | 3.62 | 2.17 | - | 2.95 | 9.5 | |
| PLDW U 3/4 | 3/4"-10 | 4,400 | 1.38 | 2.17 | 2.95 | 0.63 | 2.17 | 1.18 | - | 1.81 | 2.43 | ||
| PLDW U 5/8 | 5/8"-11 | 3,300 | 1.38 | 1.89 | 2.13 | 0.51 | 1.5 | 0.98 | - | 1.34 | 1.1 | ||
| PLDW U 1/2 | 1/2"-13 | 1,500 | 1.38 | 1.89 | 2.13 | 0.51 | 1.5 | 0.79 | - | 1.34 | 1.06 | ||
| PLDW U 3/8 | 3/8"-16 | 1,100 | 1.18 | 1.5 | 2.13 | 0.51 | 1.5 | 0.59 | - | 1.34 | 1 | ||
| PLDW U 1 | 1"-8 | 8,800 | 1.57 | 2.6 | 3.23 | 0.67 | 2.48 | 1.57 | - | 1.97 | 3.3 | ||
| PLDW U 1 3/4 | 1 3/4"-5 | 22,000 | 2.56 | 3.58 | 4.72 | 1.06 | 3.62 | 2.36 | - | 2.95 | 11.2 | ||
| PLDW U 2 1/2 | 2 1/2"-4 | 39,600 | 2.76 | 4.13 | 6.06 | 1.3 | 4.33 | 3.78 | - | 3.74 | 22.4 | ||
| PLDW U 2 | 2"-4.5 | 27,500 | 2.56 | 4.57 | 4.72 | 1.06 | 3.62 | 2.68 | - | 2.95 | 11.9 |
