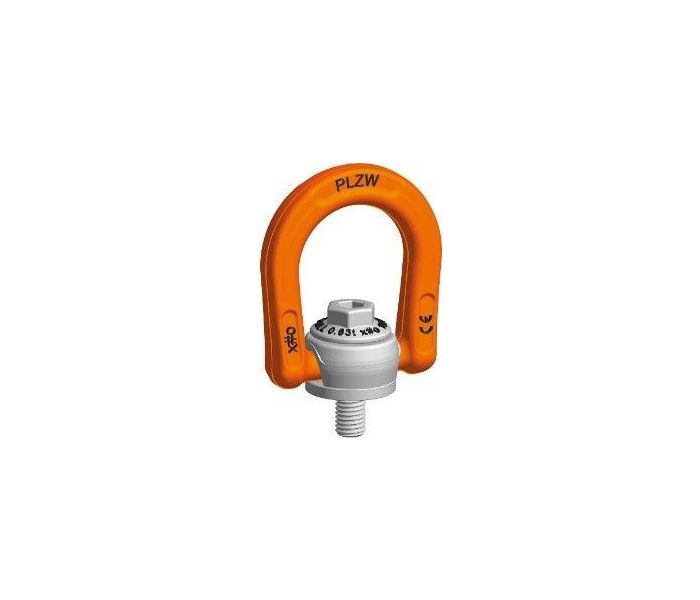

Pewag winner profilift Lifting Eyebolt PLZW Zeta - Metric thread
Key Features
- The eyebolt has 360° rotatable, comes with an interchangeable special screw that is 100% crack-tested
- Metric thread M8 to M48
- pewag winner profilift Zeta can be rotated 360° and can be loaded in all directions.
- PLZW Zeta can be assembled and disassembled without tools (applies up to thread size M24).
- The PLZW Zeta enables the attachment of closed lifting equipment such as eye sling hooks or rope loops without the use of additional shackles.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
PLZW ZETA Lifting Point - Metric Threads
Product Description
Pewag winner Profilift lifting point PLZW Zeta. Dismantled in one easy step.
Thanks to the innovative design of the lifting point, the Pewag winner Profilift lifting point PLZW Zeta can be assembled and disassembled without tools (applies up to thread size M24). The PLZW Zeta thus enables the attachment of closed lifting equipment such as eye sling hooks or rope loops without the use of additional shackles.
The latest addition to pewag‘s range of lifting points is released with a five-fold security against breakage, can be rotated 360° and can be loaded in all directions. In addition, the individual serial number as well as the batch code enable the lifting point to be clearly identified at any time. The PLZW Zeta protects the surface of the load from damage by integrating a sleeve. The replaceable bolt is 100% crack-tested and has a chrome-VI-free corrosion protection as well as a marking with load capacity, thread size and tightening torque. The lifting point is mounted in the desired position by using tools
Specification Table
| Method of lifting |
|
|
|
|
|
|
|
|
|
|
|||||||||||||
| Number of legs | 1 | 1 | 2 | 2 | 2 | 2 | 3+4 | 3+4 | 2 | 3+4 | |||||||||||||
| Angle of inclination | 0° | 90° | 0° | 90° | 0‑45° | 45‑60° | 0‑45° | 45‑60° | asymm° | asymm° | |||||||||||||
| PLZW Zeta | Code / Type | thread | fastening torque | load capacity | |||||||||||||||||||
| [mm] | [Nm] | [kg] | |||||||||||||||||||||
| PLZW 0,4 t 1) | M8 | 10 | 800 | 400 | 1,600 | 800 | 560 | 400 | 840 | 600 | 400 | 400 | |||||||||||
|
PLZW Zeta |
PLZW 0,95 t 1) | M12 | 15 | 1,100 | 950 | 2,200 | 1,900 | 1,340 | 950 | 2,010 | 1,420 | 950 | 950 | ||||||||||
| PLZW 0,63 t 1) | M10 | 10 | 1,100 | 630 | 2,200 | 1,260 | 890 | 630 | 1,330 | 940 | 630 | 630 | |||||||||||
| PLZW 2,2 t | M18 | 70 | 2,900 | 2,200 | 5,800 | 4,400 | 3,110 | 2,200 | 4,660 | 3,300 | 2,200 | 2,200 | |||||||||||
| PLZW 1,3 t | M14 | 30 | 2,900 | 1,300 | 5,800 | 2,600 | 1,830 | 1,300 | 2,750 | 1,950 | 1,300 | 1,300 | |||||||||||
| PLZW 2,5 t 1) | M20 | 100 | 2,900 | 2,500 | 5,800 | 5,000 | 3,530 | 2,500 | 5,300 | 3,750 | 2,500 | 2,500 | |||||||||||
| PLZW 1,8 t 1) | M16 | 50 | 2,900 | 1,800 | 5,800 | 3,600 | 2,540 | 1,800 | 3,810 | 2,700 | 1,800 | 1,800 | |||||||||||
| PLZW 3,7 t | M22 | 120 | 6,500 | 3,700 | 13,000 | 7,400 | 5,230 | 3,700 | 7,840 | 5,550 | 3,700 | 3,700 | |||||||||||
| PLZW 5,4 t | M27 | 200 | 6,500 | 5,400 | 13,000 | 10,800 | 7,600 | 5,400 | 11,400 | 8,100 | 5,400 | 5,400 | |||||||||||
| PLZW 6,3 t | M30 | 250 | 6,500 | 6,300 | 13,000 | 12,600 | 8,900 | 6,300 | 13,360 | 9,450 | 6,300 | 6,300 | |||||||||||
| PLZW 4 t 1) | M24 | 160 | 6,500 | 4,000 | 13,000 | 8,000 | 5,650 | 4,000 | 8,480 | 6,000 | 4,000 | 4,000 | |||||||||||
| PLZW 8 t | M33 | 270 | 15,000 | 8,000 | 30,000 | 16,000 | 11,300 | 8,000 | 16,900 | 12,000 | 8,000 | 8,000 | |||||||||||
| PLZW 15 t | M48 | 600 | 15,000 | 15,000 | 30,000 | 30,000 | 21,200 | 15,000 | 31,800 | 22,500 | 15,000 | 15,000 | |||||||||||
| PLZW 13 t | M42 | 400 | 15,000 | 13,000 | 30,000 | 26,000 | 18,300 | 13,000 | 27,500 | 19,500 | 13,000 | 13,000 | |||||||||||
| PLZW 10 t | M36 | 320 | 15,000 | 10,000 | 30,000 | 20,000 | 14,100 | 10,000 | 21,200 | 15,000 | 10,000 | 10,000 | |||||||||||
1) These sizes are dismountable without tools
| Code / Type | thread | load capacity | a | b | c | d | e | f | g | n | n max |
|
|
weight | ||
| [mm] | [kg] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg/pc.] | |||
| PLZW 0,4 t 1) | M8 | 400 | 40 | 64 | 29 | 14 | 34 | 30 | 77 | 12 | 80 | 8 | 15 | |||
|
PLZW Zeta |
PLZW 0,95 t 1) | M12 | 950 | 40 | 64 | 29 | 14 | 34 | 30 | 77 | 18 | 180 | 8 | 15 | ||
| PLZW 0,63 t 1) | M10 | 630 | 40 | 64 | 29 | 14 | 34 | 30 | 77 | 15 | 100 | 8 | 15 | |||
| PLZW 2,2 t | M18 | 2,200 | 50 | 83 | 43 | 19 | 50 | 45 | 112 | 27 | 330 | 10 | 24 | |||
| PLZW 1,3 t | M14 | 1,300 | 50 | 83 | 43 | 19 | 50 | 45 | 112 | 21 | 220 | 10 | 24 | |||
| PLZW 2,5 t 1) | M20 | 2,500 | 50 | 83 | 43 | 19 | 50 | 45 | 112 | 30 | 330 | 10 | 24 | |||
| PLZW 1,8 t 1) | M16 | 1,800 | 50 | 83 | 43 | 19 | 50 | 45 | 112 | 24 | 260 | 10 | 24 | |||
| PLZW 3,7 t | M22 | 3,700 | 70 | 121 | 64 | 28 | 69 | 68 | 161 | 33 | 355 | 14 | 36 | |||
| PLZW 5,4 t | M27 | 5,400 | 70 | 121 | 64 | 28 | 69 | 68 | 161 | 40 | 355 | 14 | 36 | |||
| PLZW 6,3 t | M30 | 6,300 | 70 | 121 | 64 | 28 | 69 | 68 | 161 | 45 | 355 | 14 | 36 | |||
| PLZW 4 t 1) | M24 | 4,000 | 70 | 121 | 64 | 28 | 69 | 68 | 161 | 36 | 355 | 14 | 36 | |||
| PLZW 8 t | M33 | 8,000 | 110 | 183 | 106 | 38 | 114 | 108 | 259 | 54 | 328 | 19 | 55 | |||
| PLZW 15 t | M48 | 15,000 | 110 | 183 | 106 | 38 | 114 | 108 | 259 | 74 | 328 | 19 | 55 | |||
| PLZW 13 t | M42 | 13,000 | 110 | 183 | 106 | 38 | 114 | 108 | 259 | 69 | 328 | 19 | 55 | |||
| PLZW 10 t | M36 | 10,000 | 110 | 183 | 106 | 38 | 114 | 108 | 259 | 59 | 328 | 19 | 55 | |||
| 1) These sizes are dismountable without tools | ||||||||||||||||
