PLGW Gamma Eyebolts - Metric Threads

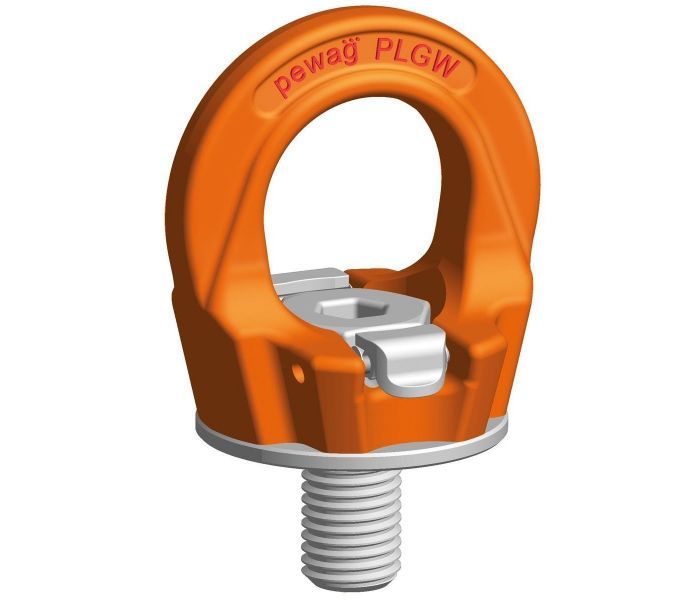

pewag winner profilift lifting point PLGW Gamma supreme eyebolt.
Close to perfection.
A lifting point developed and manufactured according to the very latest standards also deserves a promising name: pewag winner profilift gamma supreme.
Simply tighten by hand, then align in the load direction—a system ideally suited for frequent mounting/demounting. This patented system has proven itself from the beginning and promises unsurpassed ease of use.
The eyebolt is 360° rotatable, comes with an interchangeable special screw that is 100% crack-tested as well as chrome VI-free finish protection against corrosion and is marked with the load capacity and the thread size. An integrated sleeve protects the surface of the load. The batch number displayed on all load-bearing parts, such as the eye and screw, as well as the serial number, make identification, traceability and performance of mandatory, regular inspections simpler than ever.
PLGW supreme: tool-free assembly and disassembly
Latch in position 1: Latch is not in contact with the screw (fig. PLGW supreme rotatable)
- The latch is held in place with a patented spring
- The eyebolt is rotatable
Latch in position 2: Latch is in contact with the screw (fig. PLGW supreme disassembly)
- The latch is held in place with a patented spring.
- The eyebolt is not rotatable, i.e. the fastening torque is transmitted to the screw and thus the eyebolt can be (re)assembled.
PLGW basic: (Contact us for Prices)
A simplified alternative is the pewag PLGW pewag winner profilift gamma basic. Offering the same benefits as the pewag PLGW supreme in terms of measurement, load capacity and application, the pewag PLGW basic differs only when it comes to assembly.
This lifting point can be mounted hand-tight using a standard Allen key and then aligned in the load direction.
However, if the lifting point is to be utilised in a more permanent application, the torque settings in the user manual must be observed.
For lifting point sizes M8-M20 use the special Allen key sold seperately (fig. Special Allen key).
Product Description
Permitted usage
Please refer to the load capacity table for load capacities in the permitted directions of pull. Adjust the lifting point in the permitted load direction before loading.
- Loadable with a 4-fold safety factor under break in all directions.
Non-permitted usage
During assembly, ensure that improper loading cannot arise due to any of the following factors:
- The direction of the pull is obstructed.
- The direction of the pull is not within the indicated area.
- Loading ring rests against edges or loads.
- Assembly with additional tools (e.g. extension) is not permitted.
For additional details and information, please refer to the full operating manual.
Calculating the required thread length (L):
L = H + S + K + X
H = Material height
S = Thickness of the washer
K = Height of the nut (depending on the thread size of the screw)
X = Excess length of the screw (twofold pitch of the screw)
L max. = n max.
In addition to the standard and maximum thread lengths, pewag also offers cut-to-length thread lengths. Customised and maximum thread lengths are supplied with a washer and a screw nut. Each lifting point comes with an individual serial number. Also available with peTAG upon request.
Please refer to the tables with the technical data for detailed information such as the method of lifting, the number of legs, the angle of inclination, etc.
Specification tables
| Method of lifting |
|
|
|
|
|
|
|
|
|
|
|||||||||||||
| Number of legs | 1 | 1 | 2 | 2 | 2 | 2 | 3+4 | 3+4 | 2 | 3+4 | |||||||||||||
| Angle of inclination | 0° | 90° | 0° | 90° | 0‑45° | 45‑60° | 0‑45° | 45‑60° | asymm° | asymm° | |||||||||||||
| PLGW Gamma | Code / Type | thread | fastening torque | load capacity | |||||||||||||||||||
| [mm] | [Nm] | [kg] | |||||||||||||||||||||
| PLGW 0,3 t | M8 | Simply tighten by hand | 1,000 | 300 | 2,000 | 600 | 420 | 300 | 630 | 450 | 300 | 300 | |||||||||||
|
PLGW Gamma |
PLGW 0,5 t | M10 | Simply tighten by hand | 1,500 | 500 | 3,000 | 1,000 | 700 | 500 | 1,060 | 750 | 500 | 500 | ||||||||||
| PLGW 0,7 t | M12 | Simply tighten by hand | 2,000 | 700 | 4,000 | 1,400 | 980 | 700 | 1,480 | 1,050 | 700 | 700 | |||||||||||
| PLGW 1,5 t | M16 | Simply tighten by hand | 4,000 | 1,500 | 8,000 | 3,000 | 2,100 | 1,500 | 3,180 | 2,200 | 1,500 | 1,500 | |||||||||||
| PLGW 2,3 t | M20 | Simply tighten by hand | 5,000 | 2,300 | 10,000 | 4,600 | 3,200 | 2,300 | 4,800 | 3,400 | 2,300 | 2,300 | |||||||||||
| PLGW 3,2 t | M24 | Simply tighten by hand | 6,500 | 3,200 | 13,000 | 6,400 | 4,500 | 3,200 | 6,700 | 4,800 | 3,200 | 3,200 | |||||||||||
| PLGW 4,9 t | M30 | Simply tighten by hand | 12,000 | 4,900 | 24,000 | 9,800 | 6,900 | 4,900 | 10,300 | 7,300 | 4,900 | 4,900 | |||||||||||
| PLGW 7 t | M36 | Simply tighten by hand | 15,000 | 7,000 | 30,000 | 14,000 | 9,800 | 7,000 | 14,800 | 10,500 | 7,000 | 7,000 | |||||||||||
| PLGW 9 t | M42 | Simply tighten by hand | 22,000 | 9,000 | 44,000 | 18,000 | 12,600 | 9,000 | 19,000 | 13,500 | 9,000 | 9,000 | |||||||||||
| PLGW 12 t | M48 | Simply tighten by hand | 30,000 | 12,000 | 60,000 | 24,000 | 16,900 | 12,000 | 25,400 | 18,000 | 12,000 | 12,000 | |||||||||||
Dimensions (For key see images above)
| PLGW Gamma | Code / Type | thread | load capacity | a | b | c | d | e | f | n | n max |
|
weight | |
| [mm] | [kg] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg/pc.] | |||
| PLGW 0,3 t | M8 | 300 | 25 | 45 | 10 | 27 | 53 | 35 | 15 | 90 | 6 | 0.2 | ||
|
PLGW Gamma |
PLGW 0,5 t | M10 | 500 | 25 | 45 | 10 | 27 | 53 | 35 | 15 | 160 | 6 | 0.21 | |
| PLGW 0,7 t | M12 | 700 | 30 | 55 | 12 | 32 | 63 | 43 | 20 | 160 | 8 | 0.29 | ||
| PLGW 1,5 t | M16 | 1,500 | 35 | 64 | 14 | 36 | 70 | 50 | 25 | 160 | 10 | 0.48 | ||
| PLGW 2,3 t | M20 | 2,300 | 40 | 73 | 16 | 41 | 81 | 54 | 30 | 160 | 12 | 0.58 | ||
| PLGW 3,2 t | M24 | 3,200 | 50 | 86 | 18 | 50 | 93 | 69 | 35 | - | 14 | 1.1 | ||
| PLGW 4,9 t | M30 | 4,900 | 60 | 110 | 25 | 60 | 114 | 90 | 45 | - | 17 | 2.2 | ||
| PLGW 7 t | M36 | 7,000 | 70 | 132 | 31 | 70 | 136 | 108 | 55 | - | 19 | 3.8 | ||
| PLGW 9 t | M42 | 9,000 | 80 | 152 | 36 | 72 | 153 | 126 | 65 | - | 22 | 5.7 | ||
| PLGW 12 t | M48 | 12,000 | 95 | 179 | 42 | 88 | 179 | 148 | 75 | - | 24 | 8.9 |
