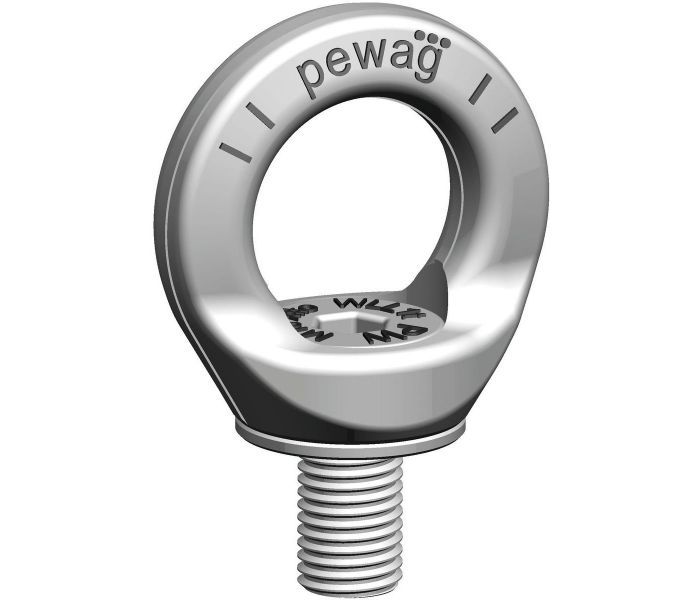

Pewag winner profilift Lifting Eyebolt PLGWI - Gamma Inox - Metric Thread
Key Features
- The eyebolt has 360° rotatable, comes with an interchangeable special screw that is 100% crack-tested
- Metric thread M12, M18 and M20
- pewag winner profilift Gamma to withstand a 4-fold safety against break in all directions
- INOX - Each lifting point comes with an individual serial number.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
PLGWI Gamma INOX Eyebolts - Metric Threads
Product description
Permitted usage
Please refer to the load capacity table for load capacities in the permitted pull directions.
- Adjust the lifting point in the permitted load direction before loading.
- Loadable with a 4-fold safety factor under break in all directions.
Non-permitted usage
During assembly, ensure that improper loading cannot arise due to any of the following factors.
- The direction of the pull is obstructed.
- The direction of the pull is not within the indicated area.
- Loading ring rests against edges or loads.
For additional details and information, please refer to the full operating manual.
Each lifting point comes with an individual serial number.
For detailed information such as method of lifting, number of legs, angle of inclination etc., please refer to the tables with the technical data.
| Method of lifting |
|
|
|
|
|
|
|
|
|
|
|||||||||||||
| Number of legs | 1 | 1 | 2 | 2 | 2 | 2 | 3+4 | 3+4 | 2 | 3+4 | |||||||||||||
| Angle of inclination | 0° | 90° | 0° | 90° | 0‑45° | 45‑60° | 0‑45° | 45‑60° | asymm° | asymm° | |||||||||||||
| PLGWI Gamma inox | Code / Type | thread | fastening torque | load capacity | |||||||||||||||||||
| [mm] | [Nm] | [kg] | |||||||||||||||||||||
| PLGWI 0,5 t | M12 | 25 | 1,500 | 500 | 3,000 | 1,000 | 700 | 500 | 1,060 | 750 | 500 | 500 | |||||||||||
|
PLGWI Gamma inox |
PLGWI 1 t | M16 | 50 | 3,000 | 1,000 | 6,000 | 2,000 | 1,400 | 1,000 | 2,100 | 1,500 | 1,000 | 1,000 | ||||||||||
| PLGWI 2 t | M20 | 115 | 3,800 | 2,000 | 7,600 | 4,000 | 2,800 | 2,000 | 4,200 | 3,000 | 2,000 | 2,000 | |||||||||||
For key to dimensions, refer to the image of dimensions above
| PLGWI Gamma inox | Code / Type | thread | load capacity | a | b | c | d | e | f | n | n max |
|
weight | |
| [mm] | [kg] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg/pc.] | |||
| PLGWI 0,5 t | M12 | 500 | 30 | 55 | 12 | 30 | 59 | 30 | 18 | 160 | 8 | 0.23 | ||
|
PLGWI Gamma inox |
PLGWI 1 t | M16 | 1,000 | 35 | 64 | 14 | 35 | 67 | 35 | 24 | 160 | 10 | 0.36 | |
| PLGWI 2 t | M20 | 2,000 | 40 | 72 | 17 | 40 | 80 | 45 | 30 | 160 | 12 | 0.6 |
