Pfaff Silberblau HX Scissor Lift Trolleys
Key Features
- Five models offering 150kgs - 750kgs lifting capacity and 220 - 1000mm lift heights.
- Hydraulic foot pump lifts the table with minimal effort. safely lowers load
- Lockable wheel feature for added stability and safety.
- Workshop platform with adjustable height, suitable for manufacturing, packing and workshop applications.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
HX 150, HX 300, HX 500, HX 750 and HX-D 350 scissor lift trolleys
Lifting capacities 150kgs - 750kgs
Workshop platform with adjustable height, suitable for manufacturing, packing and
workshop applications.
Features include: -
- Five models offering 150kgs - 750kgs lifting capacity and 220 - 1000mm lift heights.
- Hydraulic foot pump lifts the table with minimal effort. safely lowers load.
- Lockable wheel feature for added stability and safety.
- HX-D 0350 offers double-scissor feature.
- HX-D 0350 has greater lifting potential, up to 1.3mtrs.

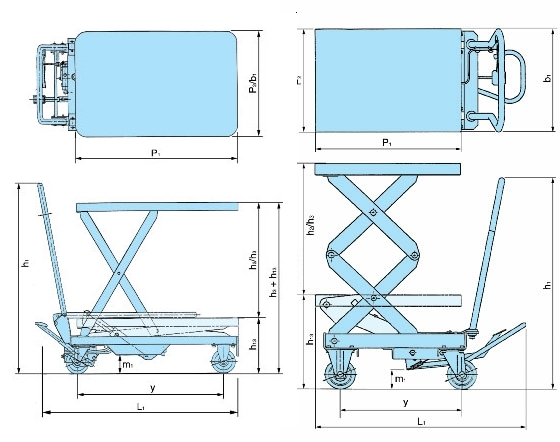

| Type | Dims | HX 150 | HX 300 | HX 500 | HX 750 | HX-D 0350 | |
| Lifting capacity | kg | 150 | 300 | 500 | 750 | 350 | |
| Wheel size | mm | 100 x 36 | 128 x 40 | 128 x 40 | 147 x 50 | 128 x 40 | |
| Rollers | PUR / PUR | PUR / PUR | PUR / PUR | PUR / PUR | PUR / PUR | ||
| Overall unit height | h¹ | mm | 960 | 984 | 984 | 990 | 965 |
| Overall unit length | L¹ | mm | 908 | 1093 | 1093 | 1330 | 1140 |
| Max. height of platform | h³ + h¹³ | mm | 720 | 880 | 880 | 1000 | 1300 |
| Min. height of platform | h¹³ | mm | 220 | 285 | 285 | 420 | 370 |
| Platform length | p¹ | mm | 700 | 850 | 850 | 1000 | 910 |
| Platform width | b¹ | mm | 450 | 500 | 500 | 510 | 500 |
| Floor/ground clearance | m¹ | mm | 26 | 53 | 53 | 72 | 31 |
| Lift height per pump stroke | mm | 27 | 31 | 31 | 15 | 21 | |
| Weight | kg | 49 | 78 | 82 | 120 | 136 |
* Polyurethane (PUR).
