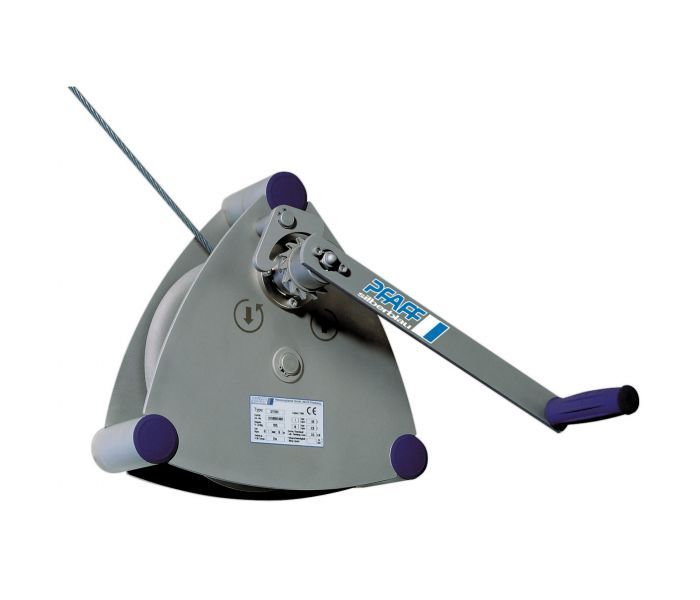

Pfaff SW-W Alpha Wall Mounted Hand Winch
Key Features
- SW-W ALPHA, wall-mounted, wire rope winches Capacities: 300 - 1000 kg
- Multi-positional and easily mountable winch, compact, low-weight and available in zinc-plated or galvanised options.
- Toothed spur wheel back gear giving high efficiency.
- Low pressure brake to prevent unintentional lowering of load.
- Rope output possible in every direction.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
HAND WINCH TYPE SW-W ALPHA WALL MOUNTED
Full specification available in PDF download
Lifting capacity from 300 kg to 1,000 kg
The Alpha winch is a lightweight, robustly constructed winch. It offers a high degree of safety with a load pressure brake, which prevents unintentional lowering of the load.
| Model | Art.-No. | Capacity 1st layer kg |
Capacity top layer kg |
Drum length mm |
Rope diameter* mm |
Useable rope length 1st layer m |
Useable rope length top layer m |
Lift per crank rotation mm | Required crank effort daN |
Weight without rope kg |
| SW-W ALPHA 300 | 030272006 | 300 | 130 | 50 | 5 | 1.3 | 28 | 57 | 13 | 10 |
| SW-W ALPHA 500 | 030272005 | 500 | 230 | 50 | 6 | 1 | 20 | 55 | 17 | 10 |
| SW-W ALPHA 750 | 030272002 | 750 | 270 | 50 | 7 | 1 | 26 | 45 | 17 | 16 |
| SW-W ALPHA 1000 | 030272001 | 1000 | 360 | 50 | 7 | 1 | 26 | 45 | 18 | 16 |
*recommended rope: DIN 3060 FE-znk 1770 sZ-spa
Winch supplied without wire rope -- To purchase CLICK HERE
For a better guiding of the rope to the suspension point, we recommend the use of sheaves or sheave blocks also available online
