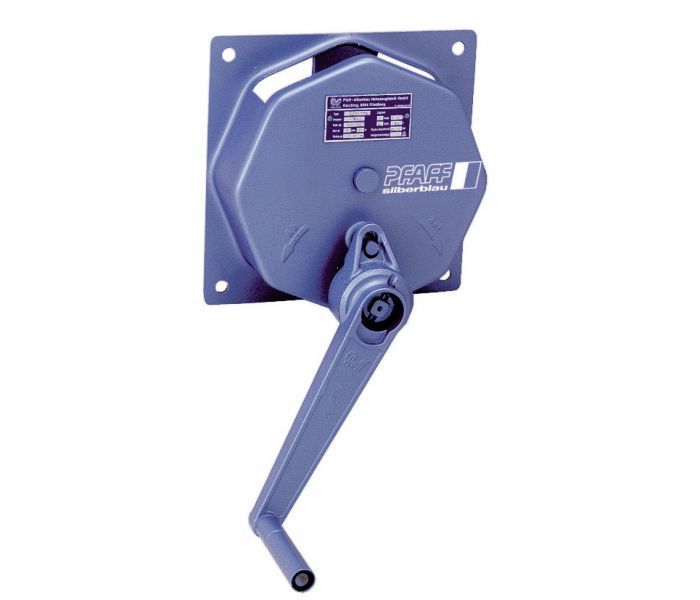

Pfaff SW-W ( SG ) Hand Winch
Key Features
- SW-W (Formerly SG) wall-mounted, wire rope winches Capacities: 125 - 750kg
- Robust and well-designed, the SW-W (SG) is well-suited to industrial and plant construction, agriculture and wholesale applications.
- External braked safety crank for 300 kg to 750 kg units. - Removable hand crank on 125 kg unit.
- Aluminium body on 125 kg unit.
- Heavy duty steel body for 300 kg to 750 kg units.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
SW-W (Formerly SG) Wall mounting lifting winches - Lifting capacity from 125 Kg to 750 Kg.download
Full specifications available in PDF
These spur gear hand operated winches are compact, unobtrusive and suitable for many lifting applications. Robust and well-designed, the SW-W is well-suited to industrial and plant construction, agriculture and wholesale applications.
Features and benefits include:
- External braked safety crank for 300kg to 750kg units
- Removable hand crank on 125kg unit.
- Aluminium body on the 125 kg unit.
- Heavy duty steel for 300 kg to 750 kg units.
- Lightweight.
- Smooth running.
- Mounting is possible in every position.
| Model | Art.-No. | Capacity 1st layer kg |
Capacity top layer kg |
Drum diameter mm |
Rope diameter mm |
Useable rope length 1st layer m |
Useable rope length top layer m |
Lift per crank rotation mm | Required crank effort daN |
Weight without rope kg |
| SW-W (SG)125 | N040271008 | 125 | 65 | 40 | 4* | 2 | 12 | 138 | 13 | 3 |
| SW-W (SG) 300 | 030271001 | 300 | 220 | 108 | 5** | 2.1 | 15 | 68 | 15 | 10 |
| SW-W (SG)500 | 030271136 | 500 | 350 | 108 | 6** | 2.4 | 15 | 35 | 13 | 11 |
| SW-W (SG)750 | 030271019 | 750 | 550 | 108 | 7** | 2 | 10 | 35 | 20 | 11 |
*recommended rope: DIN 3055 FE-znk 1770 sZ-spa
**recommended rope: DIN 3060 FE-znk 1770 sZ-spa
For a better guiding of the rope to the suspension point we recommend the use of sheaves or sheave blocks also available online
