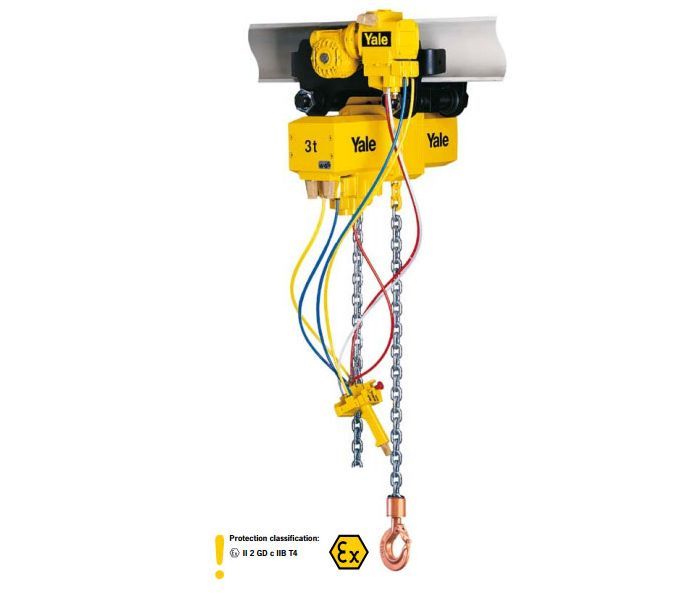

Pneumatic chain hoist
model CPA ATEX
with suspension hook or with integrated trolley
Capacity 2000 - 10000 kg
The conception is in accordance with the design of the model CPE. With 100 % duty rating and an unlimited number of starts the model CPA is suitable for heavy duty applications. It is insusceptible to contamination, humidity and aggressive mediums from the outside. The hoists are composed of three main components which makes service easy and inexpensive.
| Model | Hoist Capacity in kg/ Number of falls |
Lifting with rated load* m/min |
Lifting speed without load* m/min | Lowering speed with rated load* m/min |
Hoist motor | Weight** suspension hook | Weight** push trolley | Weight** geared trolley | Weight** pneumatic trolley |
| kW | kg | kg | kg | kg | |||||
| CPA ATEX 20-8 | 2000/1 | 7.4 | 9.9 | 11.0 | 2.6 | 121 | 184 | 188 | 199 |
| CPA ATEX 30-6 | 3000/1 | 6.0 | 9.9 | 13.0 | 3.2 | 121 | 184 | 188 | 199 |
| CPA ATEX 40-4 | 4000/2 | 3.7 | 5.0 | 5.5 | 2.6 | 140 | 202 | 206 | 218 |
| CPA ATEX 50-3 | 5000/2 | 3.4 | 5.0 | 6.0 | 3.0 | 140 | 202 | 206 | 218 |
| CPA ATEX 60-3 | 6000/2 | 3.0 | 5.0 | 6.5 | 3.2 | 140 | 202 | 206 | 218 |
| CPA ATEX 75-2 | 7500/3 | 2.0 | 3.3 | 4.3 | 3.2 | – | – | – | – |
| CPA ATEX 100-2 | 10000/4 | 3.4 | 5.0 | 6.0 | 2 x 3.0 | – | – | – | – |
*Value for 6 bar (flow pressure), air consumption with rated load 4.7 m3/min. For CPA 100-2: 9.4 m3/min.
** Weight for standard 3 m lift. Other lifting heights available.
Features
** Weight for standard 3 m lift. Other lifting heights available.
| Capacity | Size |
Beam flange width b |
Beam flange thickness t max. |
Curve radius min. |
Pneumatic trolley travel speed |
Pneumatic trolley motor |
| kg | mm | mm | m | m/min | kW | |
| 2000 - 6000 | A | 98 - 180 | 27 | 2.0 | 18 | 0.55 |
| 2000 - 6000 | B | 180 - 300 | 27 | 1.8 | 18 | 0.55 |
| 7500 - 10000 | B | 125 - 310 | 40 | 1.8 | – | – |
Features
- Robust rotating piston motor has an adjustable spring pressure brake that holds the load secure even in the event of an air failure.
- High starting torque due to switching valves in the motor body.
- Sensitive control by means of resp. 4 button pendant control with emergency stop.
- Low noise emission due to large dimension silencer.
- Designed for operating pressures of 4 to bar.
- The standard, oil bath lubricated planetary gearbox is particularly smooth running and enables a low overall height.
- The 5-pocket load chain sheave, manufactured from wear resistant case hardening steel, is matched perfectly to the load chain to guarantee smooth and precise chain motion.
- The assembly of component parts result in a low overall height (up to 000 kg only one chain fall).
- The replaceable chain guide is robust and precision machined.
- Copper-plated suspension and load hooks.
- The standard case hardened and zinc-plated link chain is matched perfectly to the load chain to guarantee smooth and precise chain motion.
- All requirements of national and international standards and regulations are fulfilled.
Options:
- Pneumatic, push and geared trolleys with solid bronze wheels.
- Rope control
- Load chain from stainless steel.
- Chain container
- Beam locking device for push and geared trolley

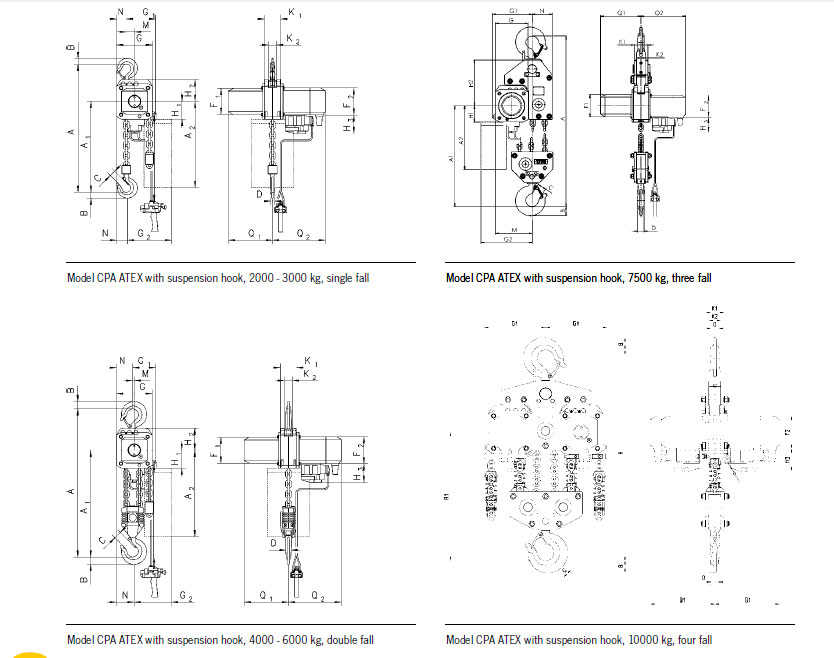

| Model |
CPA ATEX 20-8 |
CPA ATEX 30-6 |
CPA ATEX 40-4 |
CPA ATEX 50-3 |
CPA ATEX 60-3 |
CPA ATEX 75-2 |
CPA ATEX 100-2 |
| A, mm | 516 | 516 | 681 | 681 | 681 | 950 | 1.068 |
| A1, mm | 286 | 286 | 428 | 428 | 428 | 479 | 651 |
| B, mm | 35 | 35 | 45 | 45 | 47 | 60 | 60 |
| C, mm | 37 | 37 | 46 | 46 | 42 | 52 | 52 |
| D, mm | 24 | 24 | 30 | 30 | 30 | 40/45 | 40/45 |
| F1, mm | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
| F2, mm | 165 | 165 | 165 | 165 | 165 | 165 | 165 |
| G, mm | 220 | 220 | 220 | 220 | 220 | 220 | 581 |
| G1, mm | 180 | 180 | 140 | 140 | 140 | 268 | 311 |
| G2 (13 m), mm | 258 | 258 | 218 | 218 | 218 | – | – |
| G2 (21 m), mm | 278 | 278 | 238 | 238 | 238 | 345 | 408 |
| H1, mm | 110 | 110 | 110 | 110 | 110 | 110 | 110 |
| H2, mm | 135 | 135 | 135 | 135 | 135 | 307 | 256 |
| H3, mm | 115 | 115 | 115 | 115 | 115 | 115 | 115 |
| K1, mm | 100 | 100 | 100 | 100 | 100 | 92 | 92 |
| K2, mm | 51 | 51 | 51 | 51 | 51 | 62 | 62 |
| M, mm | 50 | 50 | 9,6 | 9,6 | 9,6 | 139 | 181 |
| N, mm | 60 | 60 | 100 | 100 | 100 | 136 | 291 |
| Q1, mm | 272 | 272 | 272 | 272 | 272 | 272 | 272 |
| Q2, mm | 325 | 325 | 325 | 325 | 325 | 325 | 325 |
| Model |
CPA ATEX 20-8 |
CPA ATEX 30-6 |
CPA ATEX 40-4 |
CPA ATEX 50-3 |
CPA ATEX 60-3 |
CPA ATEX 75-2 |
CPA ATEX 100-2 |
| A2 (13 m), mm | 430 | 430 | 430 | 430 | 430 | – | – |
| A2 (21 m), mm | 530 | 530 | 530 | 530 | 530 | 530 | 530 |
| A4, mm | 465 | 465 | 615 | 615 | 615 | 855 | 965 |
| A5, mm | 298 | 298 | 298 | 298 | 298 | 477 | 425 |
| A6, mm | 190 | 190 | 190 | 190 | 190 | 182 | 182 |
| b, mm | A = 98 - 180/ B = 180 - 300 |
A = 98 - 180/ B = 180 - 300 |
A = 98 - 180/ B = 180 - 300 |
A = 98 - 180/ B = 180 - 300 |
A = 98 - 180/ B = 180 - 300 |
125 - 310 | 125 - 310 |
| F, mm | 150 | 150 | 150 | 150 | 150 | 113 | 113 |
| I, mm | 142,5 | 142,5 | 142,5 | 142,5 | 142,5 | 130 | 130 |
| L1, mm | 209 | 209 | 209 | 209 | 209 | 200 | 200 |
| L2, mm | 262,5 | 262,5 | 262,5 | 262,5 | 262,5 | 215 | 215 |
| L3, mm | 265 | 265 | 265 | 265 | 265 | 265 | 265 |
| L4, mm L5, mm L6, mm O, mm |
213 312 315 125 |
213 312 315 125 |
253 272 275 125 |
253 272 275 125 |
253 272 275 125 |
291 – – 150 |
291 – – 150 |
| P, mm | 208 | 208 | 208 | 208 | 208 | 208 | 208 |
| P1, mm S, mm t, mm T1 size A T1 size B |
284 b + 70 27 182 242 |
284 b + 70 27 182 242 |
284 b + 70 27 182 242 |
284 b + 70 27 182 242 |
284 b + 70 27 182 242 |
