PORTC Workshop gantry cranes - 250 kg to 1,000 kg capacities - Mobile & Portable Gantries - Cranes
PORTC Workshop gantry cranes - 250 kg to 1,000 kg capacities
Key Features
- Load range 250 kg up up to 1000 kg.
- PROSYSTEM® Channel track in two optimised steel profiles. Profiles 125 and 200
- Fitted with patented hoist trolley - Nearly silent with a rolling resistance only approx. 1% of the moved load
- Spans 2,0, 3.0, 4.0 and 5.0 metres
- Height 2.0, 2.5, 3.0 and 3.5 metres
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

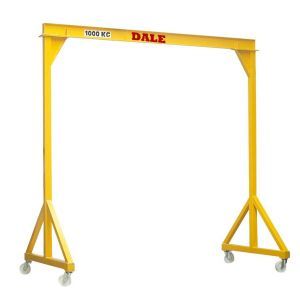

PORTC are general purpose workshop gantry. Ideal for workstations etc. where gantry can be positioned for load movements along the line of beam only.
Features:
- PROSYSTEM® Light Crane System is based on two optimised steel profiles. Profiles 125,and 200 cover load range 250up up to 1000 kg.
- Workshop gantry crane mounted on rotating wheels
- Patented hoist trolley is nearly silent with a rolling resistance only approx. 1% of the moved load
- For indoor use only
- Mechanically welded construction can be dismantled into 3 parts.
- 4 swivel casters with white polyamide wheels
- Load trolley and power supply cable provided
- Protection: 3 layers
- RAL 1028 yellow polyurethane finish
- Maximum hoisting speed = 16 m/min
Options (Contact us for details):
- Custom dimensions
- 4 wheels with polyurethane tyres Wheels lock (price per wheel)
- Manual Hoist
- Electric hoist
- Tool balancer
- Power feed cable
- Lockable mains switch
| Capacity | Spans | Height under beam (mm) | |||
| 250 kg | 2 m | 2000 | 2500 | 3000 | 3500 |
| 3 m | 2000 | 2500 | 3000 | 3500 | |
| 4 m | 2000 | 2500 | 3000 | 3500 | |
| 5 m | 2000 | 2500 | 3000 | 3500 | |
| 500 kg | 2 m | 2000 | 2500 | 3000 | 3500 |
| 3 m | 2000 | 2500 | 3000 | 3500 | |
| 4 m | 2000 | 2500 | 3000 | 3500 | |
| 5 m | 2000 | 2500 | 3000 | 3500 | |
| 1000 kg | 2 m | 2000 | 2500 | 3000 | 3500 |
| 3 m | 2000 | 2500 | 3000 | 3500 | |
| 4 m | 2000 | 2500 | 3000 | 3500 | |
| 5 m | 2000 | 2500 | 3000 | 3500 | |
Standard range - Full dimensions provided with your quotation
