RUD PP-B PowerPoint® Ring Connection - Metric Thread - RUD Lifting Points Bolted - RUD Lifting Points - By Brand

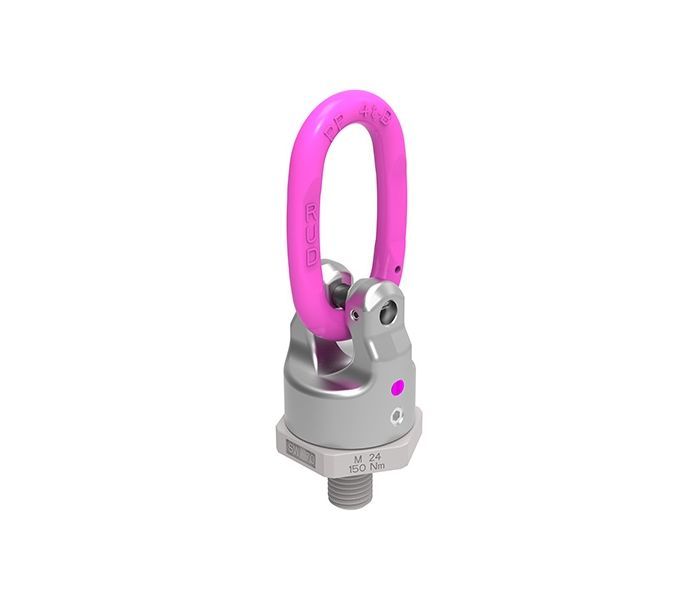

RUD PP-B PowerPoint® Ring Connection - Metric Thread
Key Features
- Rotating 360°, pivoting 230°
- Thread range M12 to M36
- Ring connection for hook assemblies
- Double ball bearing for turning/rotating operations
- Safety factor 4:1
PP-B PowerPoint® Ring connection, metric thread
Complies with the machinery directives 2006/42/EG
Available for quotation with metric threads standard lengths (For for Special thread lengths please contact us for quotation)
■ Double ball bearing for free turning and soft winding
■ Suitable for all lifting/lashing means for example hooks, rings and slings.
■ Non-protruding hook tip
■ Forged safety latch, engages in the tip of the hook therefore protected against lateral bending.
■ Triple coiled corrosions protected double leg spring
■ Thickened tip of the hook prevents handling malpractices and resists bending.
■ Wearing edges on both sides and gauge marks for measuring the width of the hook opening.
■ Not suitable for permanent swivelling under load
■ Even under full load, can be turned into a 90°position from the bolt centre line.
PP-B The ring connection
| Type |
WLL (t) |
A |
B |
C |
D |
E |
F |
G |
M |
SW |
R1 |
Weight (kg) |
Ref.-No. Metric |
| PP-B-0.63t-M12 |
0.63 |
9 |
65 |
35 |
40 |
105 |
18 |
41 |
12 |
36 |
15 |
0.35 |
7989522 |
| PP-B-1.5t-M16 |
1.5 |
11 |
65 |
35 |
46 |
115 |
24 |
50 |
16 |
41 |
15 |
0.6 |
7989523 |
| PP-B-2.5t-M20 |
2.5 |
13 |
75 |
40 |
61 |
135 |
30 |
61 |
20 |
55 |
18 |
1.1 |
7989081 |
| PP-B-4t-M24 |
4.0 |
16 |
95 |
45 |
78 |
172 |
36 |
77 |
24 |
70 |
20 |
2.1 |
7989082 |
| PP-B-5t-M30 |
5.0(6.7) |
21 |
130 |
60 |
95 |
223 |
45 |
93 |
30 |
85 |
25 |
4.5 |
7989524 |
| PP-B-8t-M36 |
8.0(10) |
24 |
140 |
65 |
100 |
242 |
54 |
102 |
36 |
90 |
28 |
6.1 |
7989083 |
PP-S/PP-B/PP-VIP – all types in special thread lengths available
Please contact us with your requirements for special quotation
| Type |
WLl (t) |
Thread size |
F
Vario max |
Thread sise |
F
Vario max |
| So-PP-S/PP-B/PP-VIP |
0.6 (0.63) |
M 12 |
140 |
1/2”-13UNC |
45 |
| So-PP-S/PP-B/PP-VIP |
1.0 (1.5) |
M 14 |
65 |
– |
– |
| So-PP-S/PP-B/PP-VIP |
1.3 (1.5) |
M 16 |
180 |
5/8”-11UNC |
55 |
| PP-S/PP-B/PP-VIP |
2.5 |
M 20 |
200 |
– |
– |
| So-PP-S/PP-B/PP-VIP |
3.5 (4) |
M 24 |
255 |
1”-8UNC |
74 |
| So-PP-S/PP-B/PP-VIP |
5.0 (6.7) |
M 30 |
330 |
1 1/4”-7UNC |
91 |
|
The warranty can only be guaranteed with originally assembled RUD components and chains!
- Easy identification of WLL
- Loadable in any direction. Safety factor 4: 1
- Double ball bearing for free turning and soft winding
- Cr, Ni, Mo-steel special quenched and tempered
- All parts 100 % crack detected
- Max. load limit at smallest thread diameter
- Variable screw lengths available
- Can also be used for through holes
- Surface: pink powder coated
Fast amortisation because of easy handling
Notice: Follow the Instructions for use!
Can be turned under full load even in a 90-degree position from the bolt centre line.
Not suitable for permanent swivelling under full load
