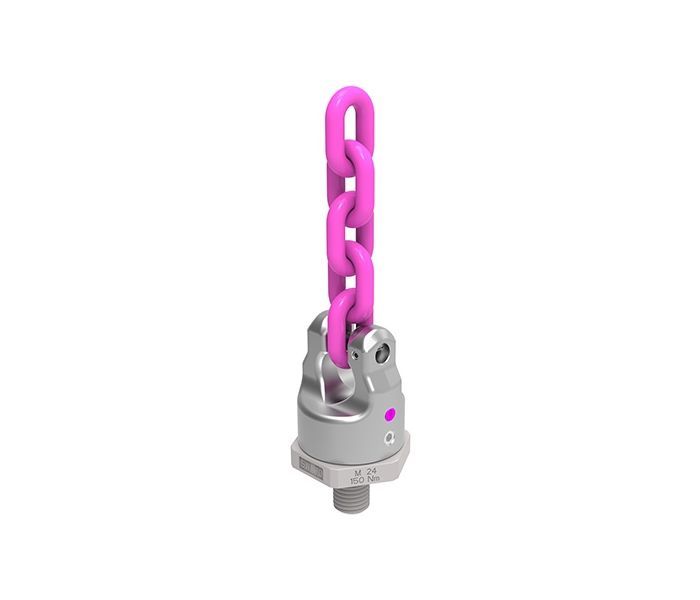

RUD PP-VIP PowerPoint® Direct VIP Chain Connection - Metric Thread Max Length

From £134.42 £112.02
In stock
Quantity

Key Features

  • Rotating 360°, pivoting 230°
  • Tread range M12 to M30
  • Universal, unmistakable VIP connection for chain, hook and eye
  • Double ball bearing for turning/rotating operations
  • Safety factor 4:1
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

PP-VIP PowerPoint® direct VIP chain connection, metric thread

Complies with the machinery directives 2006/42/EG

Available for quotation with metric threads standard lengths (For for Special thread lengths  please contact us for quotation)

 ■ Double ball bearing for free turning and soft winding

■ Suitable for all lifting/lashing means for example hooks, rings and slings.

■ Non-protruding hook tip

■ Forged safety latch, engages in the tip of the hook therefore protected against lateral bending.

■ Triple coiled corrosions protected double leg spring

■ Thickened tip of the hook prevents handling malpractices and resists bending.

 Wearing edges on both sides and gauge marks for measuring the width of the hook opening.

■ Not suitable for permanent swivelling under load

■  Even under full load, can be turned into a 90°position from the bolt centre line.

 PP-VIP - For direct chain connection of VIP chain

PP-VIP-Key

Type WLL
(t)
A
VIP-Chain-
connection
D  F  G  M  SW Weight (kg) Ref.-No.
 metric
PP-VIP4-0.63t-M12 0.63 4 40 18 41 12 36 0.25 7989525
PP-VIP6-1.5t-M16 1.5 6 46 25 50 16 41 0.45 7989526
PP-VIP8-2.5t-M20 2.5 8 61 30 61 20 55 0.95 7989527
PP-VIP10-4t-M24 4.0 10 78 36 77 24 70 2.2 7989528
PP-VIP13-5t-M30 5.0(6.7) 13 95 45 93 30 85 3.5 7989529
Up to M42 To special order (Please contact us

PP-S/PP-B/PP-VIP – all types in special thread lengths available

Please contact us with your requirements for special quotation

The warranty can only be guaranteed with originally assembled RUD components and chains!

  • Easy identification of WLL
  • Loadable in any direction. Safety factor 4: 1
  • Double ball bearing for free turning and soft winding
  • Cr, Ni, Mo-steel special quenched and tempered
  • All parts 100 % crack detected
  • Max. load limit at smallest thread diameter
  • Variable screw lengths available
  • Can also be used for through holes
  • Surface: pink powder coated
  • Fast amortisation because of easy handling

Notice: Follow the Instructions for use!

Can be turned under full load even in a 90-degree position from the bolt centre line.

Not suitable for permanent swivelling under full load
