RUD RS Eye Bolt - Metric Thread - RUD Lifting Points Bolted - RUD Lifting Points - By Brand

In stock
Only %1 left
SKU
RSEB

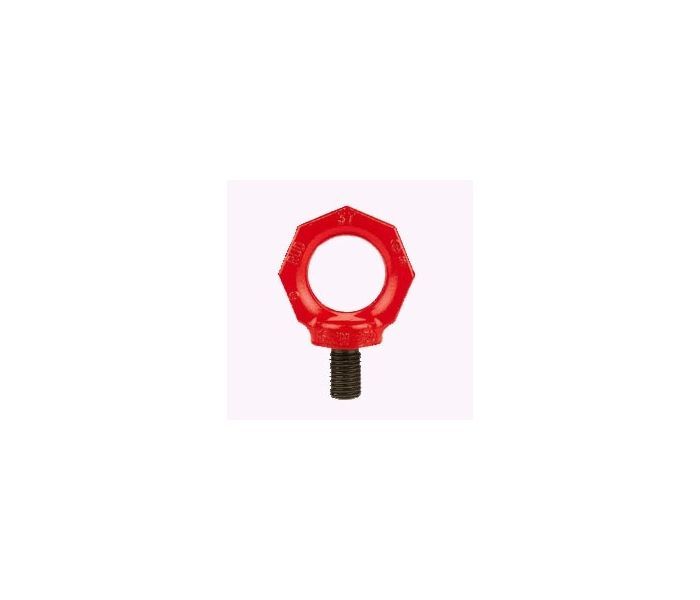

RUD RS Eye Bolt - Metric Thread

From £38.65 £32.21
In stock
Quantity

Key Features

  • Metric thread range form M6 to M48
  • Considerably higher WLL in comparison to DIN 580
  • Clear marking of the minimum WLL (Capacity)
  • Safety factor 4:1
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

RUD RS Eye Bolt - Metric Thread

For detailed specification, dimensions and load ratings please download PDF

High-tensile eye bolts - Higher WLL than DIN 580 or BS Eyebolts

Forged, tempered and 100% crack detected. Fool-proof compared with common DIN eye bolts by:

Shape: Octagonal means quality class 8
Identification: a Distinct indication of WLL for the most unfavourable case (lateral load - not allowed with DIN 580).

Ensure the eye bolt is bolted down flush to the surface! Avoid twisting movements during transport.

Complies with the machinery directives 2006/42/EG


Metric Threads
Type WLL F (t) Weight kg
RS
RS – M   6 0.1 0.1 61401
RS – M   8 0.2 0.1 61402
RS – M 10 0.25 0.1 56397
RS – M 12 0.4 0.2 56398
RS – M 14 0.75 0.25 56403
RS – M 16 1 0.3 56404
RS – M 20 1.5 0.45 56407
RS – M 24 2 0.7 56408
RS – M 30 3 1.6 56409
RS – M 36 4 6.0 56954
RS – M 42 6 6.2 56955
RS – M 48 8 6.4 56956
  • Also available in imperial and special threads.
  • Before lifting check the tightness of the eye bolt and nut!
  • Avoid rotating movement during transport.
  • Assure a plane bolting surface.
  • Attention: Refer to RUD user instruction!
