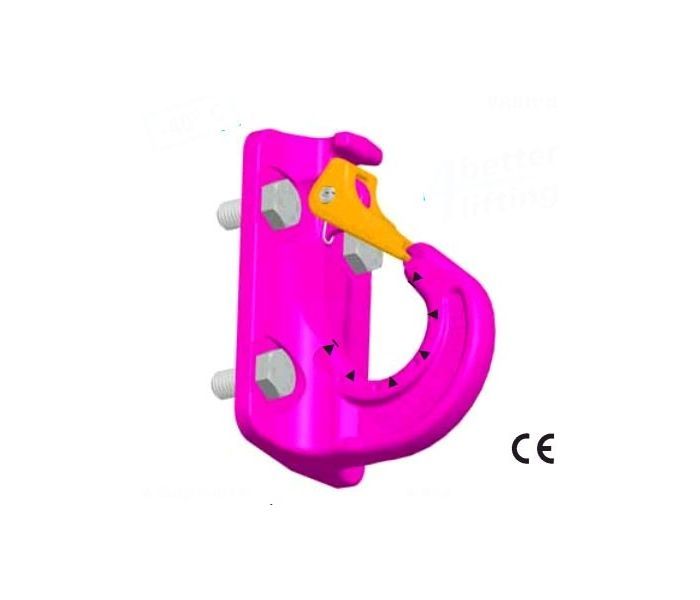

RUD VABH-B Excavator Hook
Key Features
- Rated capacities form 1,500 kg to 6,700 kg
- Safety factor 4: 1
- Can be used as lifting point on cross bars and beams
- For wire rope slings and round slings
- For lifting means with loop or oval suspension ring
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
VABH-B Excavator hook
For detailed specification, dimensions and load ratings please download PDF
Extremely robust forged safety latch.Supplied with RUD special bolts 100 % crack detected and provided with special corrosion protection Deltaton.Non-protruding tip of the hook – no unintentional hooking inEnlarged hook tip avoids improper use - thus no hooking - in smaller openingsPatented wear marks on the hook.Measurable overload indicator.Can also be used as an excavator hook

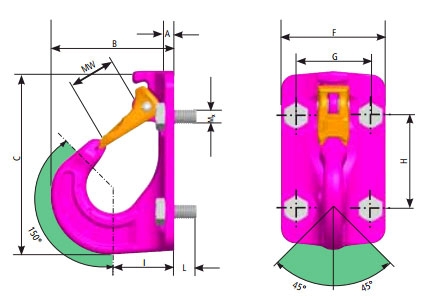

| Type | WLL | MW | A | B | C | F | G | H | I | L | RUD | Weight | Ref.-No. |
| (t) | Universal-bolt Mx | (kg) | with RUD-bolts | ||||||||||
| VABH-B 1.5t | 1.5 | 25 | 6.5 | 78 | 117 | 70 | 48 | 60 | 38 | 15 | 4 x M10 | 0.9 | 7991205 |
| VABH-B 2.5t | 2.5 | 30 | 7.5 | 101 | 148 | 85 | 60 | 75 | 49 | 18 | 4 x M12 | 1.75 | 7991206 |
| VABH-B 4t | 4 | 35 | 10 | 122 | 171 | 104 | 70 | 90 | 59 | 25 | 4 x M16 | 3.2 | 7991207 |
| VABH-B 6.7t | 6.7 | 40 | 12 | 156 | 208 | 120 | 85 | 110 | 70 | 30 | 4 x M20 | 5.6 | 8502238 |
