RUD VWBG Load Ring - Metric Thread with Variable Length - RUD Lifting Points Bolted - RUD Lifting Points - By Brand

In stock
Only %1 left
SKU
VWBGV

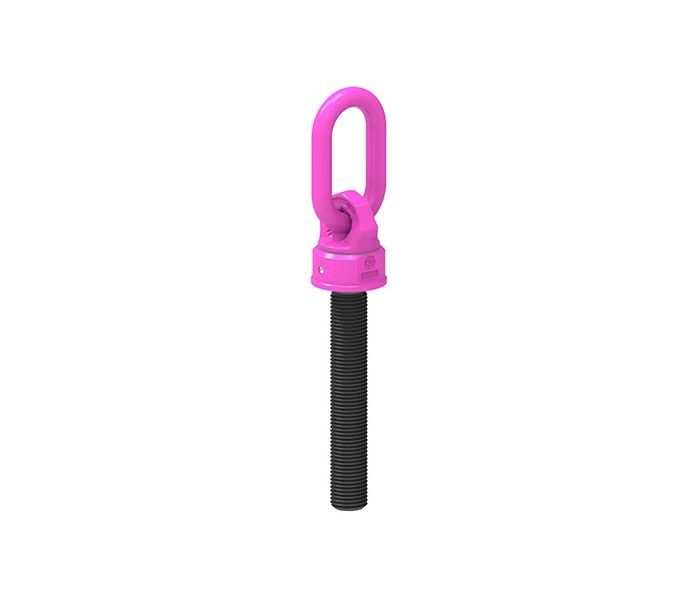

RUD VWBG Load Ring - Metric Thread with Variable Length

Price on Request
In stock
Quantity

Key Features

  • Rotating 360°, pivoting 230°
  • Optical markings for easy determination for withdraw from service
  • Ball bearing
  • Safety factor 4:1
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

VWBG Load ring, metric thread with variable length

Complies with the machinery directives 2006/42/EG

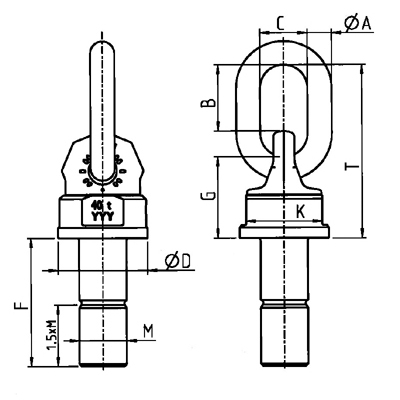

VWBG-key

Nomination

WLL

[t]

A

[mm]

B

[mm]

C

[mm]

D

[mm]

Fvario [mm]

G

[mm]

K

[mm]

M

[mm]

T

[mm]

Bolting
torque [Nm]

Ref.-No.:

VWBG 6(7,5) M33

6(7,5)

22

86

50

90

33-300

94

80

33

208

350

8600150

VWBG 8(10) Vario

8(10)

22

86

50

90

36-300

94

80

36-39

208

410

8600451

VWBG 12(13) Vario

12(13)

26

111

65

98

42-300

96

85

42-45

235

550

8600452

VWBG 13(16) Vario

13(16)

26

111

65

98

48-300

96

85

48-52

235

550

8600453

VWBG 16(22) Vario

16(22)

32

119

70

120

56-300

120

95

56-62

274

800

8600454

VWBG 16(25) Vario

16(25)

32

119

70

120

64-300

120

95

64-76

274

800

8600455

VWBG 31.5(40) Vario

31.5(40)

46

130

90

170

72-300

159

145

72-76

338

1200

8600456

VWBG 35(48) Vario

35(48)

46

130

90

170

80-300

159

145

80-85

338

1500

8600457

VWBG 40(50) Vario

40(50)

46

170

110

170

90-300

159

145

90-150

378

2000

8600458




*Caution: During lifting, the ring of the lifting point can engage in any position. The embossed WLL is for the worst case scenario (see image X). If the ring is manually adjusted to the horizontal position, higher WLL values in brackets ( ) can be chosen (see image Y). In the case of straight pull (see image Z: vertical load direction) Maximum WLL can be chosen. The nominal WLL can be increased acc. the chart from page 7!

 For heavy loads which have to be turned and swivelled. With ball bearings. Swivels under full load. N not suitable for permanent swivelling under full load, especially in 90° directions. Loadable in any direction. Safety factor 4:1.                                                                                                                                             Suspension ring manufactured acc. EN 1677-4 grade 80 (100 % proof loaded). S  = max. allowed gap, see hints for Installation page 39. V WBG: Wear marks in the main load directions 45°, 60° and 90°. Safety notice:

Please provide a plain bolting surface. The countersunk for the thread should be: thread diameter plus 4 mm (0,15 inch). The base material
of the workpiece must be capable of withstanding the occurring lifting forces. Minimum required material = ST 37 (1.0037).
  • Loadable in any direction. Safety factor 4:1.
  • Turntable under load in a vertical direction.
  • Not suitable for permanent swivelling under full load, especially in 90° directions.
  • Simple installation, just a thread hole is required.
  • Variable lengths (Vario) available.
  • Can also be used for through holes.
  • Bolts 100 % magnetic crack detected!
  • Surface protection CORRUD-DT (20 times better than zinc plating).
  • High tensile, approved suspension ring acc. EN 1677-4.
  • Surface: Ring pink powder coating, housing zinc plated.
  • Type Vario with washer and 100 % crack detected nut.
  • VWBG-V and VWBG are also available with Imperial thread.
  • Turning without jerk due to the additional bush bearing washer.
  • Wear marks in the main load directions 45°, 60° and 90°.
