RUD WPP-VIP PowerPoint® Direct VIP Chain Connection For Welding
Key Features
- Rotating 360°, pivoting 230°
- Universal, unmistakable VIP connection for chain, hook and eye
- Double ball bearing for rotating and turning actions
- Safety factor 4:1
WPP-VIP PowerPoint® direct VIP chain connection
Complies with the machinery directives 2006/42/EG

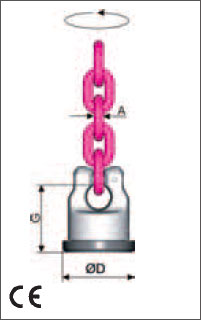

WPP-VIP – for direct connection with VIP chain
| Type | WLL (t) |
A VIP-chain connection |
D | G | Weld HY+ | Weight (kg) approx. | Ref.-No. without VIP-chain |
| WPP-VIP4-0.63t | 0.63 | 4 | 40 | 40 | 3.5 | 0.25 | 7989960 |
| WPP-VIP6-1.5t | 1.5 | 6 | 46 | 50 | 4.5 | 0.45 | 7989961 |
| WPP-VIP8-2.5t | 2.5 | 8 | 61 | 61 | HY3+5 | 0.85 | 7989962 |
| WPP-VIP10-4t | 4.0 | 10 | 78 | 77 | HY3+6 | 2.1 | 7989963 |
| WPP-VIP13-5t | 5.0 (6.7) | 13 | 95 | 93 | HY3+8 | 3.4 | 7989964 |
| WPP-VIP16-8t | 8.0 (10) | 16 | 100 | 102 | HY3+10 | 4.5 | 7989965 |
( ) increased WLL in axial load direction
Can be turned even in a 90° position under full load from the bolt centre line.The warranty can only be given when assembled with original RUD components and chains!Clear identification of the WLLSafety factor 4 : 1Cr, Ni, Mo steel quenched and tempered in special steelAll components 100 % crack detectedMax. WLL with smallest welding surfaceFluorescent pink powder coatedNo damage due to safe transport, fast amortisation because of easy handlingNot suitable for permanent swivelling under full load. Notice: Follow the Instructions for use!
