Small Bow Shackle - Galvanised with Type A Screw Pin collar - BS3032 - Table 4 - 1958 ) - Lifting Shackles - Lifting, Hoisting and Winching

In stock
Only %1 left
SKU
SBG-shackles

Small Bow Shackle - Galvanised with Type A Screw Pin collar - BS3032 - Table 4 - 1958 )

Price on Request
In stock
Quantity

Key Features

  • Capacities 0.5t to 12.5t
  • Body diameters 3/8" ro 1.3/4"
  • Pin diameters 1/2" to 2"
  • As standard an EC declaration of conformity is supplied,
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

Small Bow Shackle - Galvanised with Type A Screw Pin collar - BS3032 - Table 4 - 1958 )

  • Material                      : body and pin high tensile steel
  • Safety Factor:            : MBL equals 5 x WLL
  • Standard                    : B.S. 3032 table 4 - 1958
  • Finish                        : Galvanised
  • Certificates                : As standard an EC declaration of conformity is supplied, also upon request a certificate of basic raw material
  •

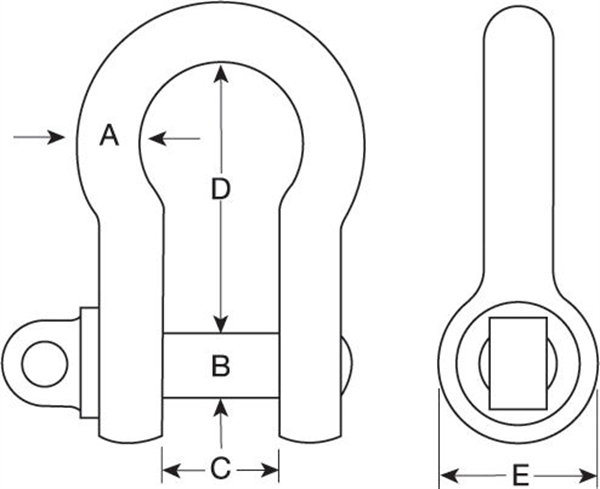

bow shackle diagram


Working
Load
Limit
Diameter
Bow
Diameter
Pin
Diameter
Eye
Inside
Width
Inside
Length
Width
Bow
Product
Code
Weight
Each
tons a itch b inch c inch d inch e inch f inch   kg
0.50 3/8 1/2 1 5/8 1.1/2 7/8 11401A 0.18
1.00 1/2 5/8 1.1/4 7/8 2 1.1/8 11402A 0.34
1.50 5/8 3/4 1.1/2 1.1/8 2.1/2 1.1/2 11403A 0.62
2.00 3/4 7/8 1.3/4 1.3/8 3 1.3/4 11404A 1.05
3.00 7/8 1 2 1.1/2 3.1/2 2 11405A 1.63
4.00 1 1.1/8 2.1/4 1.3/4 4 2.3/8 11406A 2.28
5.00 1.1/8 1.1/4 2.1/2 2 4.1/2 2.5/8 11407A 3.20
*6.25 1.1/4 1.3/8 2.3/4 2.1/4 5 3 11408A 4.54
*7.50 1.3/8 1.1/2 3 2.3/8 5.1/2 3.1/4 11409A 5.74
*9.25 1.1/2 1.3/4 3.1/2 3.5/8 6 3.1/2 11410A 8.51
*10.50 1.5/8 1.7/8 3.3/4 2.7/8 6.1/2 3.7/8 11411A 11.23
*12.50 1.3/4 2 4 3.1/8 7 4.1/8 11412A 13.47
*Special order - Contact us for quotation
