Stainless Steel Wire Ropes 1x19 construction - Wire Rope & Accessories - Lifting, Hoisting and Winching
Stainless Steel Wire Ropes 1x19 construction
Key Features
- Available from 2 mm to 26 mm

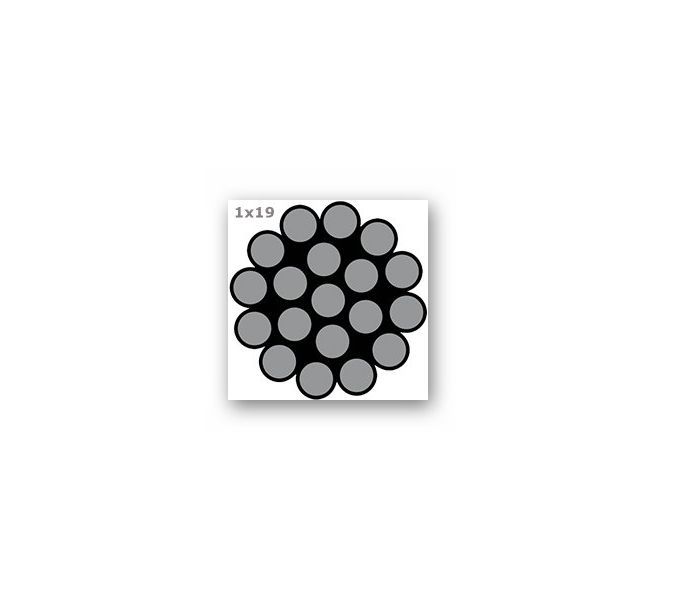

- 1x19 construction AISI316 stainless steel
- Available with choice of terminations and end fittings
- Suitable for many applications including marine use
- Request your quotation today!
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
To receive quotation provide the following:
| Diameter | see chart below |
| Length | in metres |
|
Terminations |
e.g.Plain end, Tapered and fused. Talurit spliced plain or thimbles |
| Attachments | e.g swaged fitting etc. |
| 1 x 19 Specifications | |||
1x19 AISI316 stainless steel strand is a very poplar stainless steel construction. Used heavily throughout the marine industry, 1x19’s excellent breaking load and low stretch characteristics along with its’ aesthetic appeal make it a favourite for marine, structural and balustrade applications as well as many others, examples of which are shown below:
|
|||
|
Nominal Diameter
|
Approximate Mass
|
Minimum breaking loads - 1570 Mpa
|
|
|
[mm]
|
[kg/m]
|
[kN]
|
[Kg]
|
|
2.0
|
0.019
|
3.14 | 320 |
|
2.5
|
0.030
|
4.90 | 499 |
|
3.0
|
0.043
|
7.06 | 719 |
|
4.0
|
0.078
|
12.6 | 1,284 |
|
5.0
|
0.122
|
19.6 | 1,998 |
|
6.0
|
0.176
|
28.2 | 2,875 |
|
7.0
|
0.239
|
34.8 | 3,548 |
|
8.0
|
0.312
|
45.5 | 4,639 |
|
9.0
|
0.395
|
57.6 | 5,873 |
|
10.0
|
0.488
|
71.1 | 7,250 |
|
11.0
|
0.591
|
86.0 | 8,769 |
|
12.0
|
0.703
|
102.0 | 10,401 |
|
14.0
|
0.957
|
139.0 | 14,174 |
|
16.0
|
1.250
|
182.0 | 18,558 |
|
19.0
|
1.760
|
212.0 | 21,617 |
| 22.0 | 2.360 | 285.00 | 29,061 |
| 26.0 | 3.300 | 398.00 | 40,584 |
