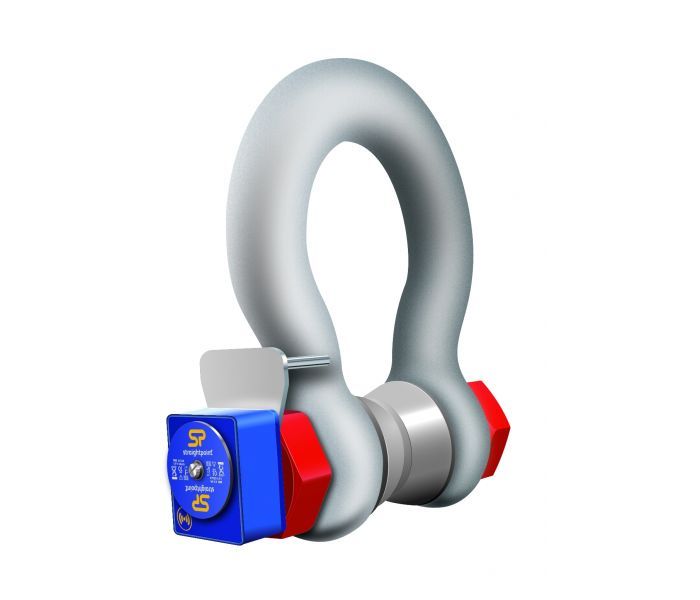

STRAIGHTPOINT LOADSHACKLES - WIRELESS ( WLS ) With Bobbin
Key Features
- Designed For Use With SW-HHP or SW-MWLC Software
- Proprietary 2.4 GHz wireless / Industry Leading Wireless Range of 700m/2300ft / Unmatched battery life of 1200hrs
- Manufactured using leading brand shackles / Each WLS is supplied with a load-centring bobbin
- Environmentally sealed to IP67/NEMA6 / Design validated by F.E.A.
- Capacities form 3.25 tonne to 400 tonnes
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Complies with ASME B30.26
Straightpoint’s Wireless Loadshackle provides the perfect solution for limited headroom applications. Each Wireless Loadshackle is proof tested, then equipped with a hard anodised aluminium electronics enclosure. Contained within this aluminium enclosure is a new internal chassis providing IP67/NEMA6 environmental protection even with the battery cover plate missing.
Featuring industry-leading wireless technology and range of 700m/2300ft, the Wireless Loadshackle is supplied with an update rate of 3Hz and can be easily configured to run at industry leading speeds of up to 200Hz. Data is transmitted wirelessly utilising the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error-free transmission of both static weight and dynamic load to a wireless handheld controller or wireless Windows PC data logging software package.
Straightpoint’s wireless data logging software allows for simultaneous control, display and real-time data logging of up to 100 Straightpoint telemetry load cells. Logged data is captured in a .csv file format and opens in MS Excel providing easy visual presentation, analysis of logged data, and simple test certificate generation.
|
Part Number |
WLS3.25T |
WLS6.5T |
WLS12T |
WLS25T |
WLS55T |
WLSSST |
WLS120T |
WLS200T |
WLS300T |
WLS400T |
|
Capacity |
3.25te |
6.5te |
12te |
25te |
SSte |
85te |
120te |
200te |
300te |
400te |
|
7150lb |
14300lb |
26400lb |
SSOOOlb |
120000lbs |
185000lbs |
260000lbs |
440000lbs |
660000lbs |
880000lbs |
|
|
Resolution |
O.OOSte |
O.OOSte |
0.01te |
0.02te |
O.OSte |
O.OSte |
0.1te |
0.2te |
O.Ste |
O.Ste |
|
10lb |
10lb |
20Lb |
SOlb |
100lb |
100lb |
200lb |
200lb |
1000lb |
1000lb |
|
|
Units |
tonne |
|||||||||
|
lb |
||||||||||
|
Weight |
2.8kg |
3.2kg |
8kg |
18kg |
25kg |
45kg |
85kg |
254kg |
374kg |
614kg |
|
6.16lb |
7lb |
17.6 lb |
40lb |
SSlb |
99lb |
187lb |
560lb |
825lb |
1354lb |
|
|
Safety Factor |
5:1 when used with load bobbin |
|||||||||
|
Battery Typ e |
Load cell 4 x AA I Ex Loadcell 4 x Energizer ® U l timate Lithium AA Batteries |
|||||||||
|
Battery Life |
Load cell 1,200 hours continuous |
|||||||||
|
Operating Temp |
-10°C ta +S0°C / 14°F ta 122 °F |
|||||||||
|
Accuracy |
±1% af applied load |
|||||||||
|
Frequency |
2.4 GHz |
|||||||||
|
System Range |
700 metres I 2300 feet |
|||||||||
|
Data Rate |
3 updates per second |
|||||||||
|
Protection |
IP67 / NEMA 6 |
|||||||||
Download PDF for full dimensions
A full array of wireless accessories are also available including signal boosters, LED wireless scoreboards and base stations with analogue (4-20mA, 0-10v, 0-5v) or digital (RS232/485, Modbus RTU, and ASCII serial communications protocol) outputs.
|
FEATURES AND BENEFITS
SUPPLIED WITH THE FOLLOWING AS STANDARD
|
APPLICATIONS
|
There is no better choice than Straightpoint’s Wireless Loadshackle for limited headroom applications.
