STRAIGHTPOINT WIRELINK PLUS ( WLP ) CABLED LOAD CELL
Key Features
- Available in capacities ranging from 1 to 300 tonnes
- Constructed of lightweight aluminium
- High accuracy
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

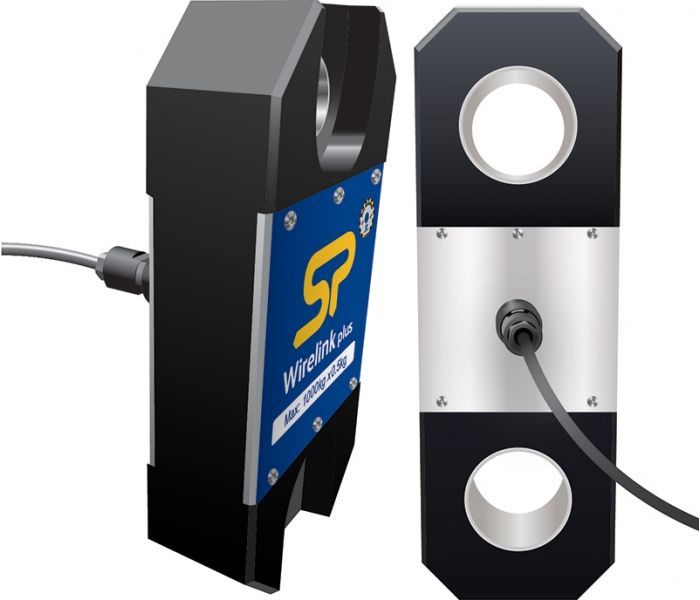

The Wirelink plus is the non-indicating version of Straightpoint’s very popular Radiolink plus and Loadlink plus digital dynamometer tension load cells. This non-indicating Loadlink is designed for use with Straightpoint’s Handheld plus digital display, desktop controller PC software (DCP10M) or other form of instrumentation.
Manufactured from aerospace grade aluminium and utilising an advanced internal design structure, this range of non-indicating load cells are extremely lightweight, easy to handle and are used worldwide in an array of industries for lifting, pulling, proof and structural load testing. The extremely versatile platform can be used with digital displays including the Straightpoint Handheld plus, PLCs, data acquisition systems (DAQ) etc. and configured with a vast array of output formats to include mV/V, RS-422, RS-485, utilising the ASCII, MODBUS TRU and CAN-BUS protocols.
A standard analogue output option is available to include: 3 wire 0-10v 3 wire 0-5v 4 wire +/-10v 3 wire 4-20mA 2 wire 4-20mA The Wirelink plus is supplied with a 10 metre cable as standard, however, usable cable length varies greatly with lengths available to 1,500 metres depending on output format.
|
Part Number WLP1T WLP2T5 WLP5T WLP12T WLP25T WLP35T WLP50T WLP75T WLP100T WLP150T WLP200T WLP250T WLP300T |
|||||||||||||
|
Capacity |
1,000kg |
2.5te |
5te |
12te |
25te |
35te |
50te |
75te |
100te |
150te |
200te |
250te |
300te |
|
2200lb |
5500lb |
11000lb |
26000lb |
55000lb |
77000lb |
110000lb |
165000lb |
220000lb |
330000lb |
440000lb |
550000lb |
660000lb |
|
|
Resolution |
0.5kg |
0.001te |
0.001te |
0.002te |
0.005te |
0.005te |
0.01te |
0.01te |
0.05te |
0.05te |
0.1te |
0.1te |
0.1te |
|
1lb |
2lb |
2lb |
5lb |
10lb |
10lb |
20lb |
20lb |
100lb |
100lb |
200lb |
200lb |
200lb |
|
|
Units |
kg |
te |
te |
te |
te |
te |
te |
te |
te |
te |
te |
te |
te |
|
lb |
lb |
lb |
lb |
lb |
lb |
lb |
lb |
lb |
lb |
lb |
lb |
lb |
|
|
Weight |
1.4kg |
1.4kg |
2kg |
3.2kg |
5kg |
8.6kg |
11.5kg |
16kg |
34kg |
46kg |
72kg |
72kg |
118kg |
|
3.1lb |
3.1lb |
4.4lb |
7.1lb |
11lb |
19lb |
25.3lb |
35.3lb |
75lb |
101.4lb |
158.7lb |
158.7lb |
260lb |
|
|
Safety Factor |
12:1 |
5:1 |
5:1 |
5:1 |
5:1 |
5:1 |
5:1 |
5:1 |
5:1 |
4:1 |
5:1 |
4:1 |
5:1 |
|
Operating Temp |
-10°C to +50°C / 14°F to 122°F |
||||||||||||
|
Accuracy |
± 0.3% of applied load |
||||||||||||
|
Protection |
IP67 / NEMA 6 |
||||||||||||
|
Dimension A |
204 |
204 |
249 |
305 |
340 |
393 |
424 |
470 |
608 |
670 |
700 |
700 |
806 |
|
8.03” |
8.03” |
9.80” |
12.01” |
13.39” |
15.47” |
16.69” |
18.50” |
23.94” |
26.38” |
27.56” |
27.56” |
31.73” |
|
|
Dimension B |
43 |
43 |
43 |
47 |
60 |
75 |
75 |
75 |
99 |
99 |
144 |
144 |
150 |
|
1.69” |
1.69” |
1.69” |
1.85” |
2.36” |
2.95” |
2.95” |
2.95” |
3.90” |
3.90” |
5.67” |
5.67” |
5.91” |
|
|
Dimension C |
101 |
101 |
101 |
101 |
115 |
126 |
163 |
202 |
255 |
303 |
320 |
320 |
426 |
|
3.98” |
3.98” |
3.98” |
3.98” |
4.53” |
4.96” |
6.42” |
7.95” |
10.04” |
11.93” |
12.60” |
12.60” |
16.77” |
|
|
Dimension D |
146 |
146 |
165 |
193 |
215 |
225 |
230 |
260 |
320 |
360 |
350 |
350 |
350 |
|
5.75” |
5.75” |
6.50” |
7.60” |
8.46” |
8.86” |
9.06” |
10.24” |
12.60” |
14.17” |
13.78” |
13.78” |
13.78” |
|
|
Dimension ØE |
24.5 |
24.5 |
38 |
47.5 |
55 |
60 |
76 |
76 |
109 |
109 |
132 |
132 |
160 |
|
0.96” |
0.96” |
1.50” |
1.87” |
2.17” |
2.36” |
2.99” |
2.99” |
4.29” |
4.29” |
5.20” |
5.20” |
6.30” |
|
|
Dimension F |
48 |
48 |
66 |
Not relevant in this capacity |
|||||||||
|
1.89” |
1.89” |
2.60” |
|||||||||||
|
Dimension G |
19 |
19 |
32 |
||||||||||
|
0.75” |
0.75” |
1.26” |
|||||||||||
|
Crosby Shackle |
G2130 |
G2140 |
|||||||||||
|
Loading Pin Ø |
19 |
19 |
25 |
35 |
51 |
57 |
57 |
70 |
83 |
95 |
121 |
127 |
152 |
|
3/4” |
3/4” |
1” |
1 3/8” |
2” |
2 1/4” |
2 1/4” |
2 3/4” |
3 1/4” |
3 3/4” |
4 3/4” |
5” |
6” |
|
