Telescopic Spreader Beam Type DTS - 2t to 15t upto 6 metres spread
Key Features
- Easy Adjustable Spreader Beam designed to use when headroom is not limited
- Adds stability to the lifting operation
- Flexible connection points allow for standard chain or wire rope two leg sling.
- The use of COG adjustment grab hooks (Chain option only) allows for off-centre load adjustment).
- Fitted with bottom connecting shackles with swivel safety latch hooks as standard.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
DTS Telescopic Spreader Beam Applications
Lifting of various loads up to 15 tonnes in spans from 1200 to 6 metres
Description
DTS Adjustable Spreader Beam is designed to use when headroom is not limited. Adds stability to the lifting operations.
- Flexible connection points allow for standard chain or wire rope two leg sling.
- The use of COG adjustment grab hooks (Chain option only) allows for off-centre load adjustment).
- Available from 2, 000 kg to 15,000 kg
- 1200mm to 6 metre spread.
- Fitted with swivel safety latch hooks as standard.
- Delivered with user's instuctions and EC certificate of compliance
- For alternative capacities and dimensions - contact us.
Top sling options
Option C - with Chain Top Chain Sling
Option CS - with Chain Top Chain Sling with COG adjustment
Option W - with Wire Rope Top Sling

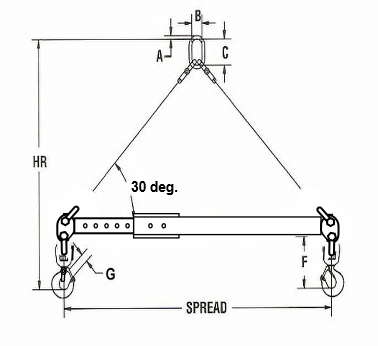

| Capacity WLL kg |
Spread min/max mm |
Headroom min/man c.w. chain sling mm |
Weight Beam and hooks kg | A mm |
B mm |
C mm |
F mm |
G mm |
| 2,000 | 1200/1800 | 1200/1450 | 32 | 16 | 110 | 60 | 140 | 23 |
| 1800/3000 | 1800/2235 | 39 | ||||||
| 2400/4250 | 2440/2870 | 80 | ||||||
| 3650/6000 | 3350/4220 | 110 | ||||||
| 5,000 | 1200/1800 | 1400/1625 | 48 | 23 | 160 | 90 | 213 | 29 |
| 1800/3000 | 2010/2415 | 73 | ||||||
| 2400/4250 | 2590/3200 | 93 | ||||||
| 3650/6000 | 3505/4370 | 305 | ||||||
| 10,000 | 1200/1800 | 1524/1752 | 43 | 33 | 200 | 110 | 269 | 39 |
| 1800/3000 | 1880/2819 | 80 | ||||||
| 2400/4250 | 2743/3353 | 209 | ||||||
| 3650/6000 | 3660/4140 | 309 | ||||||
| 15,000 | 1200/1800 | 1626/1830 | 75 | 36 | 260 | 140 | 346 | 43 |
| 1800/3000 | 2210/2642 | 166 | ||||||
| 2400/4250 | 2820/3430 | 217 | ||||||
| 3650/6000 | 3734/4572 | 318 |
