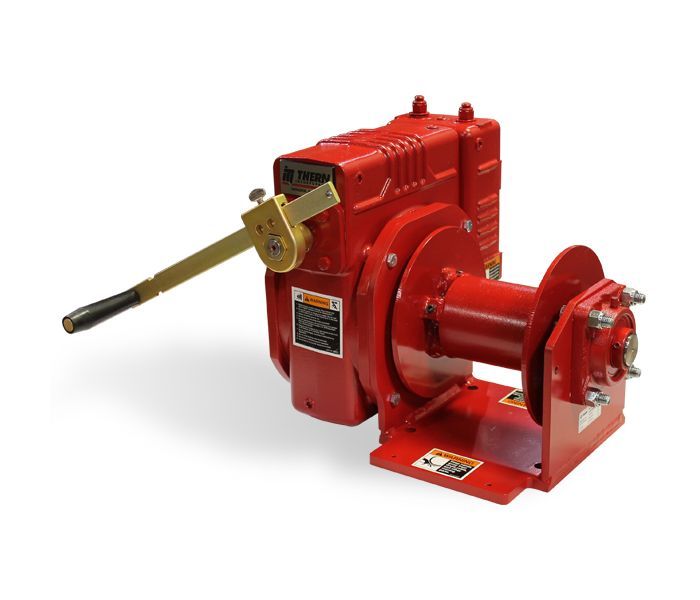

Thern 2W40-BM-CE 2,087 Kg with brake (for lifting) – enclosed gearing - drill driveable
Shipped direct from Manufacturer partner - Despatch generally 2 weeks - Prices ex works, for carriage and despatch request quotation to your address.
Key Features
- Machine Cut Worm Gears - For accurate operation and long lasting service.
- Hex drive and handle are included. 2W40-BM can be power driven with a maximum 400 rpm drill-motor.
- Internal mechanical brake that provides positive load control for lifting applications.
- Corrosion Resistant - Durable paint finish protects against corrosion in harsh environments.
- Mounting Options Include floor, wall, or ceiling. Adapter plate may be required, contact us
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
2W40-BM -CE 2087 Kg with brake (for lifting) – enclosed gearing - drill driveable
- Cast aluminium construction
- Machine-cut worm gears
- Enclosed oil bath
- Internal mechanical brake
- Corrosion resistant
- Two-Year Limited Warranty
- Ropes sold separately
MEASURED, STEADY PRECISION - with Less Force. The Worm Gear hand winch is designed to lift and lower heavy loads quietly, with less effort. The worm-gear design allows for more precise positioning and extra load-holding power for secure control.
Machine-cut bronze gearing and a cast aluminium gearbox enhance durability and resist the elements. Multiple configurations make it ideal for maritime, rail yards, construction, and manufacturing.
Flexible Operation Design - Operate winch using the adjustable handle or portable drill-drive for longer lift applications that lack a permanent power supply Drill drive operation allows faster lifting/lowering speed (400 RPM Drive Maximum)
Automatic Brake - Adjustable brake provides positive load control for lifting/lowering Oil bath provides continuous lubrication to reduce heat, minimize wear, and extend service life
Load-Locking Mechanism - Frame-based, gear-locking mechanism enhances load control
2W40-BM Series Worm Gear Hand Winch Performance Characteristics – Drill Drive1 |
||||||||||||
|
Load Rating |
ED300-DW11 (US)2 |
ED220-MT03-50HZ (EU)2 |
||||||||||
|
Model No. |
1st Layer |
Mid Drum |
Full Drum |
RPM |
Volts |
Duty Cycle3 |
RPM |
Volts |
Duty Cycle3 |
|||
|
(lb) |
(kg) |
(lb) |
(kg) |
(lb) |
(kg) |
Max |
Max |
|||||
|
2W40-BM |
2300 |
1043 |
1650 |
748 |
1250 |
567 |
300 |
120 |
40ft / 5min |
220 |
230 |
12m / 10min |
|
1 Performance Characteristics refer to standard products. Non-standard products may vary from the original design. Contact Thern for this information. |
||||||||||||

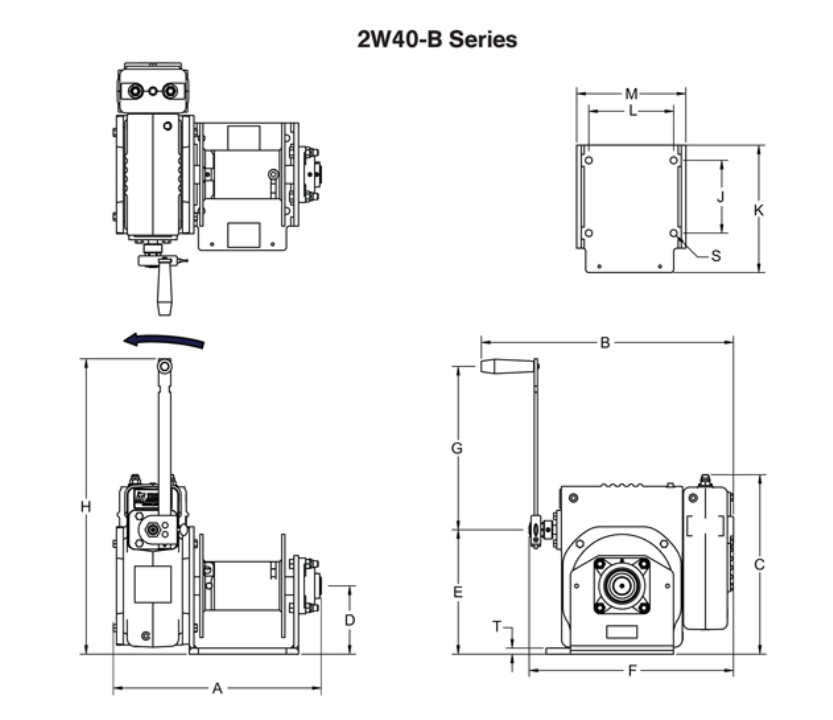

2W40-BM Worm Gear Hand Winch Dimensions |
||||||||||||||||
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
||||||||
|
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
|
|
2W40-BM |
17.16 |
436 |
20.79 |
528 |
14.81 |
376 |
5.63 |
144 |
10.25 |
261 |
16.84 |
428 |
13.47 |
343 |
24.34 |
619 |
|
Model |
J |
K |
L |
M |
S (hole dia.) |
T |
Flange Dia. |
Drum Width |
||||||||
|
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
|
|
2W40-BM |
6.00 |
153 |
10.50 |
267 |
7.00 |
178 |
9.00 |
229 |
9/16 |
15 |
.50 |
13 |
4.00 |
102 |
8.50 |
216 |
|
Dimensions are for reference only and subject to change without notice. |
||||||||||||||||
IMPORTANT: It is the owner’s or operator’s responsibility to determine the suitability of the equipment to its intended use. Study all applicable codes, manuals and regulations. Be sure to read the Owner’s Manual supplied with the equipment before operating it.
