Thern Commander 1000 Series Lifting Davit System up to 540 kg capacity

Shipped directly from manufacturer partner - Delivery generally takes two weeks - For prices, carriage and lead time, request a quotation to your address - Please download the PDF E-form below for a quotation with all configurations and optional extras.

Thern Commander 1000 Configurations and Optional Extras



Price on Request
In stock

Key Features

  • 544 kg capacity - 360 degree rotation
  • Choice of finish, bases and manual or electric winch
  • Adjustable height and reach
  • 2-Year Standard Warranty
  • Declaration of conformity
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

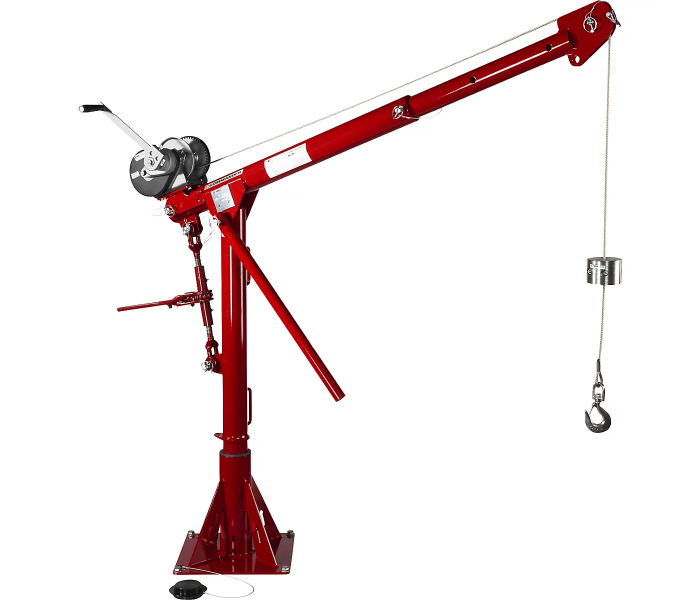

Commander 1000 Lifting Davit/Crane System

A WORKHORSE DAVIT CRANE
Packed with Thoroughbred Features

The 5PT10 Commander, a 1000 portable Davit crane up to 540 kg, has features that make it the “go to” Davit crane for many applications. It is designed to lift, lower, and rotate loads 360 degrees easily and smoothly. Add an optional rotational bearing and 12-position lock system to facilitate moving heavier loads. Easy disassembly and reassembly with quick-release hardware and pins maximize portability. Various base options, manual or power operation, and a telescoping boom with adjustable boom angles make it perfect for water/wastewater, manufacturing, marine, construction, and oil and gas applications.

QUICK FACTS

What's included with this package

  • Load ratings up to 5440kg
  • Manual or power winch operation
  • Rotates 360º
  • Available in 5 finishes with pedestal, flush or wall-mounted bases
  • 2-Year Standard Warranty
  • DOC and CE Marked

Enhanced Portability

#Disassemble and reassemble easily, using quick-release hardware and pins for quick transport or storage—no tools required.

Move your crane to another location while keeping the wire rope attached to the load using #the quick-disconnect feature. Insert the swaged-ball end of the wire rope into the keyhole slot on the tab of the pedestal base or into an optional wire rope keeper.

Durable Construction & Finish

Heavy-duty welded structural steel pipe and tubing limit deflection and met/exceeded ASTM standards. Corrosion-resistant, powder-coated frame, mast cap, and stainless-steel fasteners resist the elements for long service life. Galvanized, epoxy and 304 or 316 stainless-steel finishes are available for corrosive environments.

Flexible Configurations

Various base and mounting options, including pedestal, flush, and wall-mount, as well as wheel-base, help meet various lifting needs. A quick-mount winch bracket is standard (no tools required) and accommodates several Thern winches. Optional base extension provides additional height without affecting the crane’s load rating. Ideal for wall- or flush-mount situations to create additional crane height for obstacle clearance or other needs when 15 inches (381 mm) of additional height is required.

360° Rotation & Flexible Operation

Nylatron® bushing at the base enhances smooth, 360-degree rotation under load for precise load placement. Optional rotation lock maintains load position for easier unloading. Choose from manual, drill-drive, or powered winch (electric, pneumatic, or hydraulic motors) operation to accommodate a variety of light or heavy loads and travel distances. DC motors and various voltage AC motors are available.

STANDARD CONFIGURATIONS  Rated up to 540 kg capacity

5PT10 powder-coat crane with M4312PB-K spur gear hand winch
5PT10G-M1 Galvanized crane with M4312PB-K spur gear hand winch
5PT10-M2 Powder-coat crane with 4WM2-K worm gear hand winch
5PT10G-M2 Galvanized crane with 4WM2-K worm gear hand winch
5PT10S-M3 Stainless-steel crane with M4312PBSS-K spur gear hand winch
5PT10-E2 Powder-coat crane with 4WP2-K electric winch
5PT10S-E2XStainless-steel crane with grey-epoxy 4WP2EGRA-K electric winch

Base Options PLEASE NOTE:
It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use.

Commander 1000 Pedestal Base
5BP10
5BP10G
5BP10S
5BP10S316

Commander 1000 Flush-Mount Base
5BF10
5BF10G
5BF10S
5BF10316
5BF10X

Commander 1000 Wall-Mount Base
5BW10
5BW10G
5BW10S
5BW10S316
5BW10X

Commander 1000 Wheel Base
5BR10 5BR10X

 PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use.

Roller Ball Bearing for 5PT10 Series Crane

Model Description
5PT10BRG Red electrostatic, powder-coat paint finish
5PT10BRG-S 304 stainless-steel, electro-polished finish for added protection against corrosion
5PT10BRG-S316 Stainless-steel, electro-polished finish for maximum protection against corrosion
5PT10BRG-SS 304 stainless steel, for use with stainless-steel base only
5PT10BRG-SS316 316 stainless steel, for use with stainless-steel base only,

Electric winch limit switch

Wire ropes
Galvanized aircraft cable with swivel hook and swaged ball fitting
304 stainless steel wire rope with SS swivel hook and swaged ball fitting

Headache Ball
Model Description
HB10-12-25 Red enamel painted 10 lb fits 1/8” to 1/4” rope
HB10-25-38 Red enamel painted 10 lb fits 1/4” to 3/8” rope
HB10S-12-25 Stainless-steel 10 lb fits 1/8” to 1/4” rope
HB10S-25-38 Stainless-steel 10 lb fits 1/4” to 3/8” rope

Base Extension
Model Description - increase base height by 381mm
5BE5-15 Available on 5PF5, 5PT5, 5PT10, and 5PT20 with powder-coat, galvanized,
5BE10-15 304 & 316 stainless-steel and epoxy finishes
5BE20-15

NOTICE: These products are not for lifting people or things over people.
