Commander 2000 Pedestal Base
5BP20
5BP20G
5BP20S
5BP20S316
Thern Commander Series 2000 Lifting Davit System up to 907 kg capacity - Thern Lifting Davits - Full Range - Thern Lifting Davits and Cranes - Thern - By Brand
In stock
SKU
TC2000LDS

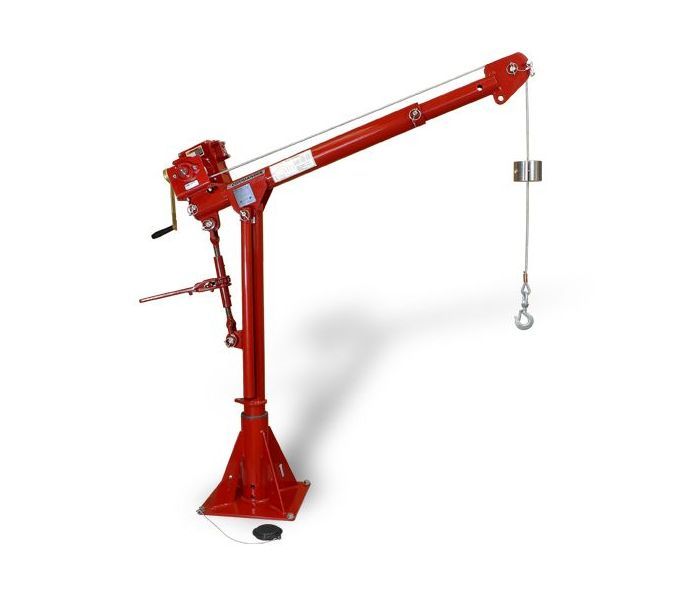

Thern Commander Series 2000 Lifting Davit System up to 907 kg capacity
Shipped directly from manufacturer partner - Delivery generally takes two weeks - For prices, carriage and lead time, request a quotation to your address - Please download the PDF E-form below for a quotation with all configurations and optional extras.
Thern Commander 2000 Configurations and Optional Extras |
Price on Request
Key Features
- 907 kg capacity - 360 degree rotation
- Choice of finish, bases and manual or electric winch
- Adjustable height and reach
- 2-Year Standard Warranty
- Declaration of conformity
Delivery Options
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Commander 2000 Lifting Davit/Crane System
HEAVY LIFTING POWER with Enhanced Flexibility and Portability
The 5PT20 Commander 2000 portable davit crane (up to 907 kg) is one of Thern’s largest portable davit cranes. A maximum hook height (with a pedestal base) of 97 inches allows it to hoist large loads and reach over walls, rails, and obstacles. It is designed to lift, lower, and rotate loads 360 degrees easily and smoothly. Add an optional rotation bearing and 12-position lock system to ease movement and stabilize unloading.
Easy disassembly and reassembly with quick-release hardware and pins maximize portability. A variety of base options, manual or power operation, and telescoping boom with adjustable boom angles make it perfect for water/wastewater, manufacturing, marine, construction, and oil and gas applications.
QUICK FACTS
What's included with this package
- Load ratings up to 907 kg
- Manual or power winch operation
- Rotates 360º
- Available in 5 finishes with pedestal, flush or wall-mounted bases
- 2-Year Standard Warranty
- DOC and CE Marked
Enhanced Portability
Disassemble and reassemble easily, using quick-release hardware and pins for quick transport or storage—no tools required.
Move your crane to another location while keeping the wire rope attached to the load using #the quick-disconnect feature. Insert the swaged-ball end of the wire rope into the keyhole slot on the tab of the pedestal base or into an optional wire rope keeper.
Durable Construction & Finish
Heavy-duty welded structural steel pipe and tubing limit deflection and met/exceeded ASTM standards. Corrosion-resistant, powder-coated frame, mast cap, and stainless-steel fasteners resist the elements for long service life. Galvanized, epoxy and 304 or 316 stainless-steel finishes are available for corrosive environments.
Flexible Configurations
Various base and mounting options, including pedestal, flush, and wall-mount, as well as wheel-base, help meet various lifting needs. A quick-mount winch bracket is standard (no tools required) and accommodates several Thern winches. Optional base extension provides additional height without affecting the crane’s load rating. Ideal for wall- or flush-mount situations to create additional crane height for obstacle clearance or other needs when 15 inches (381 mm) of additional height is required.
360° Rotation & Flexible Operation
Nylatron® bushing at the base enhances smooth, 360-degree rotation under load for precise load placement. Optional rotation lock maintains load position for easier unloading. Choose from manual, drill-drive, or powered winch (electric, pneumatic, or hydraulic motors) operation to accommodate a variety of light or heavy loads and travel distances. DC motors and various voltage AC motors are available.
STANDARD CONFIGURATIONS Rated up to 907 kg capacity
5PT20 powder-coat crane with M4312PB-K spur gear hand winch
5PT20G-M1 Galvanized crane with M4312PB-K spur gear hand winch
5PT20-M2 Powder-coat crane with 4WM2-K worm gear hand winch
5PT20G-M2 Galvanized crane with 4WM2-K worm gear hand winch
5PT20S-M3 Stainless-steel crane with M4312PBSS-K spur gear hand winch
5PT20-E2 Powder-coat crane with 4WP2-K electric winch
5PT20S-E2XStainless-steel crane with grey-epoxy 4WP2EGRA-K electric winch
Base Options PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use.
Commander 2000 Flush-Mount Base
5BF20
5BF20G
5BF20S
5BF20316
5BF20X
Commander 2000 Wall-Mount Base
5BW20
5BW20G
5BW20S
5BW20S316
5BW20X
Commander 2000 Wheel Base
5BR20 5BR20X
PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use.
Roller Ball Bearing for 5PT20 Series Crane
Model Description
5PT20BRG Red electrostatic, powder-coat paint finish
5PT20BRG-S 304 stainless-steel, electro-polished finish for added protection against corrosion
5PT20BRG-S316 Stainless-steel, electro-polished finish for maximum protection against corrosion
5PT20BRG-SS 304 stainless steel, for use with stainless-steel base only
5PT20BRG-SS316 316 stainless steel, for use with stainless-steel base only
Electric winch limit switch
Wire ropes
Galvanized aircraft cable with swivel hook and swaged ball fitting
304 stainless steel wire rope with SS swivel hook and swaged ball fitting
Headache Ball
Model Description
HB10-12-25 Red enamel painted 10 lb fits 1/8” to 1/4” rope
HB10-25-38 Red enamel painted 10 lb fits 1/4” to 3/8” rope
HB10S-12-25 Stainless-steel 10 lb fits 1/8” to 1/4” rope
HB10S-25-38 Stainless-steel 10 lb fits 1/4” to 3/8” rope
HB10S-44-50 Stainless-steel 10 lb fits 7/16” to 1/2” rope
Base Extension
Model Description - increase base height by 381mm
5BE5-15 Available on 5PF5, 5PT5, 5PT10, and 5PT20 with powder-coat, galvanized,
5BE10-15 304 & 316 stainless-steel and epoxy finishes
5BE20-15
NOTICE: These products are not for lifting people or things over people.
See Product attachments for full specification
Some products may require a longer delivery time
