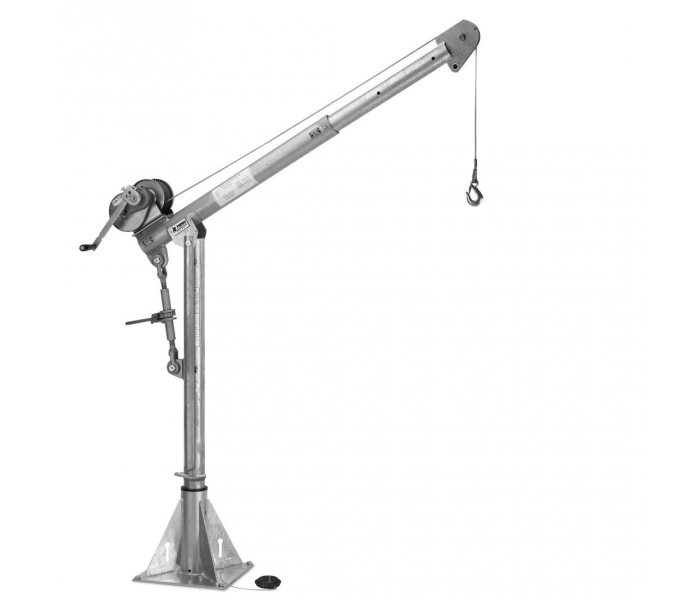

- Load ratings up to 544 kg
- Galvanised finish davit and pedestal base
- M4312PB-CE spur gear hand winch
- 6.4 mm dia x 13.7 m galvanised rope with painted hook.
- Davit manual operation
- Rotates 360º
- 2-Year Standard Warranty
- DOC and CE Marked
Technical data
|
Max. load |
544 kg |
| Max. load 1 (at jib length mm) | 558 mm – 544 kg |
| Max. load 2 (at jib length mm) | 736 mm – 430 kg |
| Max. load 3 (at jib length mm) | 914 mm – 340 kg |
| Max. load 4 (at jib length mm) | 1092 mm – 295 kg |
| Overall width | 1676 mm |
| Overall height | 2159 mm |
| Overall length | 1676 mm |
| Lifting height max. cantilever arm extended | 2159 mm |
| Max. crane arm length | 1676 mm |
| Min. crane arm length | 558 mm |
| Finish | galvanised davit and pedestal base |
| Winch | Spur Gear Hand Winches - Double Reduction - zinc plated |
| Max. hook height with max. crane arm angle | 2159 mm |
| Max. hook height with min. crane arm angle | 1066 mm |
| Weight | 96 kg |
| Product type | Lifting Davit |
| Supplied | pre-assembled, final assembly by customer |
For more finishes and or winch options, see the Commander 1000 full range page for a quotation. CLICK HERE
Enhanced Portability—The unit disassembles and reassembles easily, using quick-release hardware and pins for quick transport or storage—no tools are required.
PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use. These products are not for lifting people or things over people.
See Product attachments for full specifications.
Additional/Optional accessories for 5PT10G-M1+ are offered below

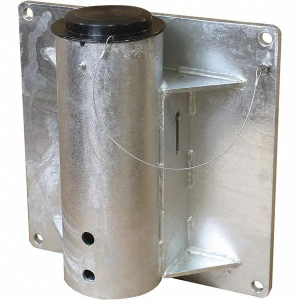

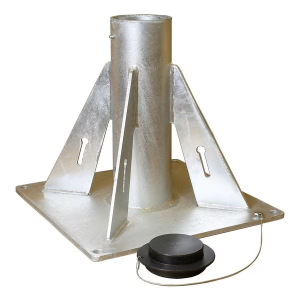

- Additional davit sockets - pedestal mount, flush mount or wall mounts for multi-locations.

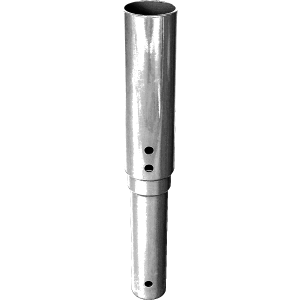

- Base Extension - increase base height by 381mm
- Extra wire ropes - Quick disconnect from winch - For faster pump retrieval.
- Headache ball - keeps the rope taut with no load.
- Roller bearing for easy 360-degree rotation - With lock holds Davit in position.
