Thern Commander 5PT20-E2+ Lifting Davit with 230V 1ph 50Hz electric winch and Base - Thern Lifting Davits - Popular Configurations

In stock
SKU
5PT20-E2

Thern Commander 5PT20-E2+ Lifting Davit with 230V 1ph 50Hz electric winch and Base

Shipped directly from the Manufacturer's hub, Despatched from warehouse stock. For carriage and lead time, request a quotation to your delivery address.

£9,072.00 £7,560.00
In stock
Quantity

Key Features

  • Lifting davit with painted finish with 230V 1ph 50Hz electric winch and paintedBase
  • Up to 905 kg capacity - 360 degree rotation - Adjustable height and reach
  • WP2-KL-CE electric winch 230V 1ph 50Hz with 1.8m pendant control with galvanised rope with hook
  • 2-Year Standard Warranty
  • Declaration of conformity
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

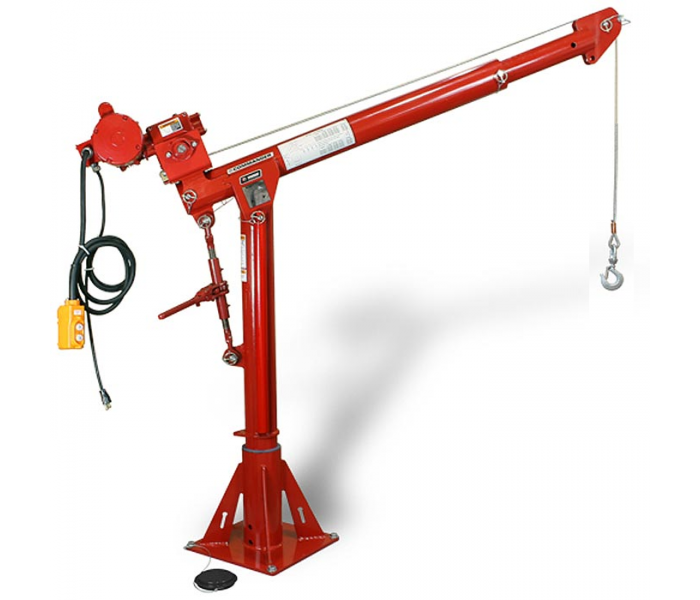

Thern Commander 5PT20-E2+ Lifting Davit with 4WP2-KL-CE electric winch  230V 1ph 50Hz, galvanised rope and 5BP20 Pedestal Base

HEAVY LIFTING POWER with Enhanced Flexibility and Portability

The 5PT20 Commander 2000 portable Davit crane up to 905 kg is one of Thern’s largest portable Davit cranes. A maximum hook height (with a pedestal base) of 97 inches allows it to hoist large loads and reach over walls, rails, and obstacles.

t is designed to lift, lower, and rotate loads 360 degrees easily and smoothly. Add an optional rotation bearing and 12-position lock system to ease movement and stabilize unloading. Easy disassembly and reassembly with quick-release hardware and pins maximize portability. Various base options, manual or power operation, and a telescoping boom with adjustable boom angles make it perfect for water/wastewater, manufacturing, marine, construction, and oil and gas applications.

It is supplied here with a red-powder-coated davit crane, 4WP2-KL-CE electric winch  230V 1ph 50Hz, a red-powder-coated base mount platform, and galvanised steel rope with load hook. Ø 6.4 mm in length and 13.7 m in diameter.

Quick Facts

  • Load ratings up to 905kg
  • Painted finish davit and pedestal base
  • 4WP2-KL-CE electric winch  230V 1ph 50Hz - red painted
  • 6.4 mm dia x 13.7 m galvanised rope with painted hook.
  • Davit manual operation
  • Rotates 360º
  • 2-Year Standard Warranty
  • DOC and CE Marked


Technical specification

Max. load 905 kg
Max. load 1 (at jib length mm) 711 mm – 905 kg
Max. load 2 (at jib length mm) 914 mm – 860 kg
Max. load 3 (at jib length mm) 1143 mm – 680 kg
Max. load 4 (at jib length mm) 1346 mm – 590 kg
Overall width 2082 mm
Overall height 2463 mm
Overall length 2082 mm
Lifting height max. cantilever arm extended 2463 mm
Max. crane arm length 2082 mm
Min. crane arm length 711 mm
Finish powder coated
Winch 4WP2-KL-CE electric winch  230V 1ph 50H
Max. hook height with max. crane arm angle 2463 mm
Max. hook height with min. crane arm angle 1092 mm
Weight 143 kg
Product type slewing cranes
Supplied pre-assembled, final assembly by customer


Winch Specification

4WP2-KL-CE Thern Atlas Series portable electric winch 230V 1ph 50 Hz

     Load rating for winch only (lbs/ kg)

  • 1st layer rating:  2000/ 900
  • Mid drum rating: 1500/ 680
  • Full drum rating: 1200/ 540

    Line speeds (fpm/ mpm)
  • 1st layer speed:  6/ 1.8
  • Mid drum speed: 9/ 2.7#
  • Full drum speed: 11/ 3.4

  • 1.5 HP, TEFC, 230/1/50 motor
  • Automatic internal load brake
  • Pressure plate with a corrosion-resistant finish
  • Frame constructed of mild steel
  • Frame, motor and primary reducer finished with primed red enamel
  • Gear reducer and drum constructed of cast aluminium
  • Gear reducer and drum finished with red electrostatic powder coat
  • Slot for swaged ball end on wire rope assembly to allow for quick disconnect option.
  • Pendant and Power cord included
  • 6 ft/1.8m pendant control with E-STOP
  • 8-ft/ 2.4m power cord with CEE 7/7 Type E Plug
  • Upper travel limit switch ready with quick connect plug and override switch
  • CE Marked with Declaration of Conformity
  • Recommended wire rope dia: 1/4 inch/ 6mm
  • Synthetic oil will provide operating temperatures from -30C up to +40C

Davit arm limit switch for electric winch available, sold separately - see bottom of this page

For more finishes and or winch options, see the Commander 2000 full range page for a quotation. CLICK HERE

Enhanced Portability—The unit disassembles and reassembles easily, using quick-release hardware and pins for quick transport or storage—no tools are required.

PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use.  These products are not for lifting people or things over people.

See Product attachments for full specifications.

Additional/Optional accessories for 5PT20-E2+ are offered below

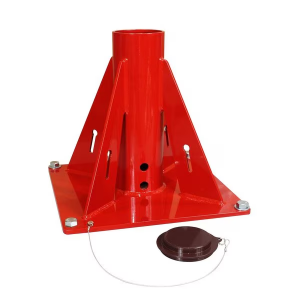

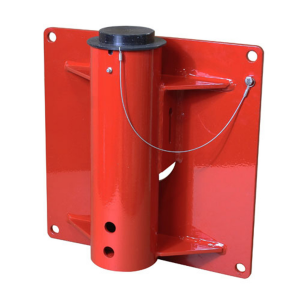

  • Additional davit sockets - pedestal mount, flush mount or wall mounts for multi-locations.

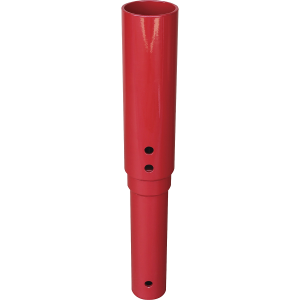

  • Base Extension - increase base height by 381mm
  • Extra wire ropes - Quick disconnect from winch - For faster pump retrieval.
  • Headache ball - keeps the rope taut with no load.
  • Roller bearing for easy 360-degree rotation  - With lock holds Davit in position
  • Limit switch ready electric winch option  NOTE: Requires purchase of Limit Switch and Headache Ball (sold separately)

Click links for prices and add to your quote request.
