- Load ratings up to 905kg
- Painted finish davit and pedestal base
- 4WM2-K-CE worm gear hand winch - red painted
- 6.4 mm dia x 13.7 m galvanised rope with painted hook.
- Davit manual operation
- Rotates 360º
- 2-Year Standard Warranty
- DOC and CE Marked
Thern Commander 5PT20-M2+ Lifting Davit With Worm Gear (Drill Driveable) Hand Winch And Base - Thern Lifting Davits - Popular Configurations
Thern Commander 5PT20-M2+ Lifting Davit With Worm Gear (Drill Driveable) Hand Winch And Base
Shipped directly from the Manufacturer's hub, Despatched from warehouse stock. For carriage and lead time, request a quotation to your delivery address.
Key Features
- Lifting davit with painted finish with worm gear (Drill driveable) hand winch and painted pedestal base
- Up to 905 kg capacity - 360 degree rotation - Adjustable height and reach
- 4WM2-K-CE worm gear hand winch with galvanised rope with hook
- 2-Year Standard Warranty
- Declaration of conformity
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

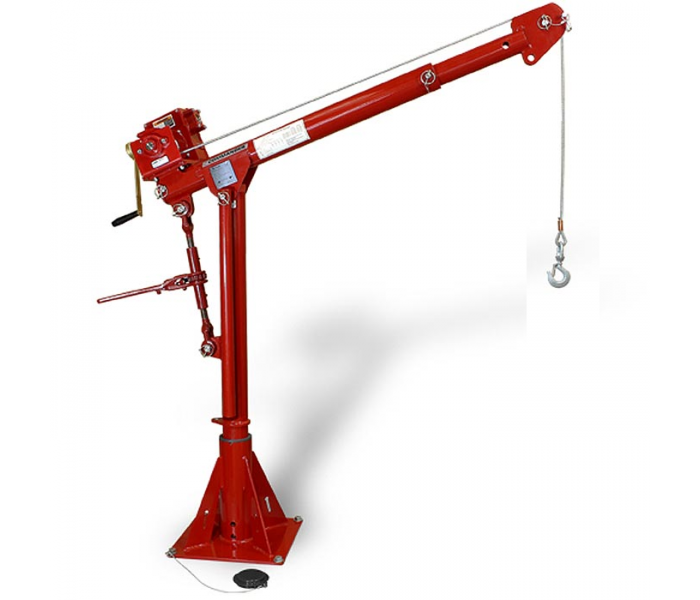

Thern Commander 5PT20-M2+ Red Enamel Lifting Davit with 4WM2-K-CE worm gear hand winch powder coat (Drill driveable), galvanised rope and 5BP20 Red Enamel Pedestal Base.
HEAVY LIFTING POWER with Enhanced Flexibility and Portability
The 5PT20 Commander 2000 portable Davit crane up to 905 kg is one of Thern’s largest portable Davit cranes. A maximum hook height (with a pedestal base) of 97 inches allows it to hoist large loads and reach over walls, rails, and obstacles.
t is designed to lift, lower, and rotate loads 360 degrees easily and smoothly. Add an optional rotation bearing and 12-position lock system to ease movement and stabilize unloading. Easy disassembly and reassembly with quick-release hardware and pins maximize portability. Various base options, manual or power operation, and a telescoping boom with adjustable boom angles make it perfect for water/wastewater, manufacturing, marine, construction, and oil and gas applications.
It is supplied here with a red-powder-coated davit crane, 4WM2-K-CE worm gear hand winch, a red-powder-coated base mount platform, and galvanised steel rope with load hook. Ø 6.4 mm in length and 13.7 m in diameter.
Quick Facts
Technical specification
Max. load | 905 kg |
Max. load 1 (at jib length mm) | 711 mm – 905 kg |
Max. load 2 (at jib length mm) | 914 mm – 860 kg |
Max. load 3 (at jib length mm) | 1143 mm – 680 kg |
Max. load 4 (at jib length mm) | 1346 mm – 590 kg |
Overall width | 2082 mm |
Overall height | 2463 mm |
Overall length | 2082 mm |
Lifting height max. cantilever arm extended | 2463 mm |
Max. crane arm length | 2082 mm |
Min. crane arm length | 711 mm |
Finish | powder coated |
Winch | 4WM2-K-CE worm gear hand winch |
Max. hook height with max. crane arm angle | 2463 mm |
Max. hook height with min. crane arm angle | 1092 mm |
Weight | 143 kg |
Product type | slewing cranes |
Supplied | pre-assembled, final assembly by customer |
For more finishes and or winch options, see the Commander 2000 full range page for a quotation. CLICK HERE
Enhanced Portability—The unit disassembles and reassembles easily, using quick-release hardware and pins for quick transport or storage—no tools are required.
PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use. These products are not for lifting people or things over people.
See Product attachments for full specifications.
Additional/Optional accessories for 5PT20-M2+ are offered below
- Additional davit sockets - pedestal mount, flush mount or wall mounts for multi-locations.
- Base Extension - increase base height by 381mm
- Extra wire ropes - Quick disconnect from winch - For faster pump retrieval.
- Headache ball - keeps the rope taut with no load.
- Roller bearing for easy 360-degree rotation - With lock holds Davit in position.
Click links for prices and add to your quote request.
