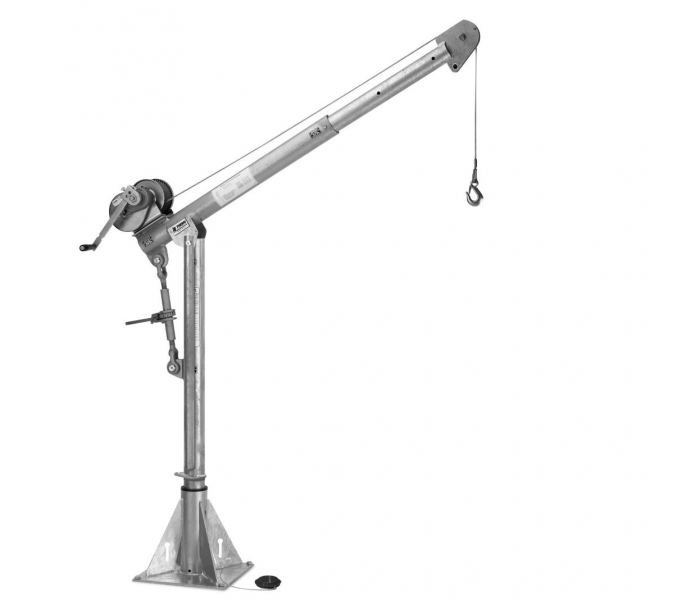

- Load ratings up to 905kg
- Galvanised finish davit and pedestal base
- M4312PB-CE spur gear hand winch zinc plated
- 6.4 mm dia x 13.7 m galvanised rope with painted hook.
- Davit manual operation
- Rotates 360º
- 2-Year Standard Warranty
- DOC and CE Marked
Technical specification
| Max. load | 905 kg |
| Max. load 1 (at jib length mm) | 711 mm – 905 kg |
| Max. load 2 (at jib length mm) | 914 mm – 860 kg |
| Max. load 3 (at jib length mm) | 1143 mm – 680 kg |
| Max. load 4 (at jib length mm) | 1346 mm – 590 kg |
| Overall width | 2082 mm |
| Overall height | 2463 mm |
| Overall length | 2082 mm |
| Lifting height max. cantilever arm extended | 2463 mm |
| Max. crane arm length | 2082 mm |
| Min. crane arm length | 711 mm |
| Finish | galvanised davit and pedestal base |
| Winch | Zinc plated spur gear hand winch |
| Max. hook height with max. crane arm angle | 2463 mm |
| Max. hook height with min. crane arm angle | 1092 mm |
| Weight | 143 kg |
| Type | Lifting Davit |
| Supplied | pre-assembled, final assembly by customer |
For more finishes and or winch options, see the Commander 2000 full range page for a quotation. CLICK HERE
Enhanced Portability—The unit disassembles and reassembles easily, using quick-release hardware and pins for quick transport or storage—no tools are required.
PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use. These products are not for lifting people or things over people.
See Product attachments for full specifications.
Additional/Optional accessories for 5PT20G-M1+ are offered below

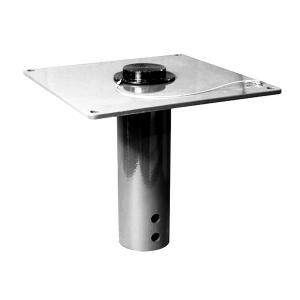

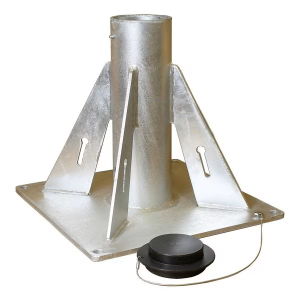

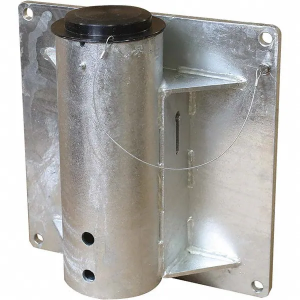

- Additional davit sockets - pedestal mount, flush mount or wall mounts for multi-locations.

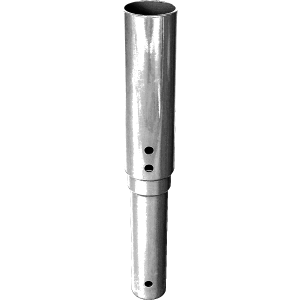

- Base Extension - increase base height by 381mm
- Extra wire ropes - Quick disconnect from winch - For faster pump retrieval.
- Headache ball - keeps the rope taut with no load.
- Roller bearing for easy 360-degree rotation - With lock holds Davit in position.
Click links for prices and add to your quote request.
