Thern Commander 5PT5-M2+ Lifting Davit with Worm Gear Hand Winch and Base - Thern Lifting Davits - Popular Configurations

In stock
SKU
5PT5-M2+

Thern Commander 5PT5-M2+ Lifting Davit with Worm Gear Hand Winch and Base

Shipped directly from Manufacturer's hub, Despatched from warehouse stock. For carriage and lead time, request a quotation to your delivery address.

£3,202.80 £2,669.00
In stock
Quantity

Key Features

  • Lifting davit with painted finish with painted worm gear hand winch and painted pedestal base
  • Up to 300 kg capacity - 360 degree rotation
  • 4WM2-K-CE painted worm gear hand winch (Drill driveable) with galvanised rope with hook
  • 2-Year Standard Warranty
  • Declaration of conformity
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

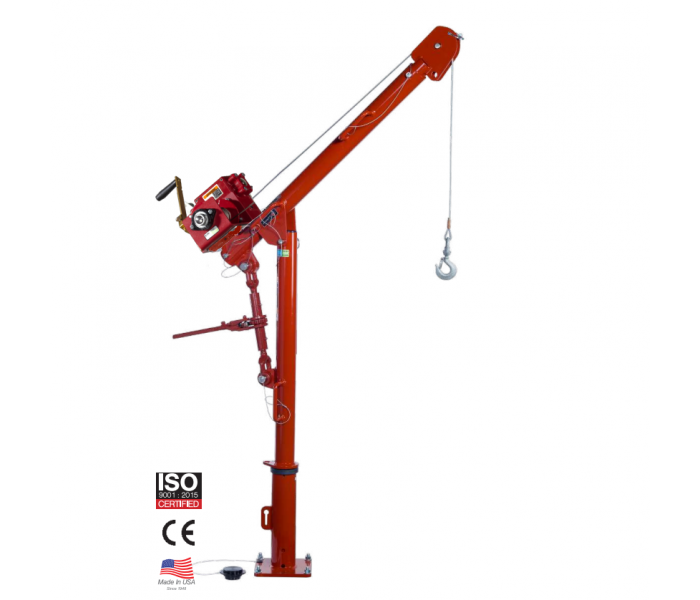

Thern Commander 5PT5-M2+ Red Enamel Lifting Davit with 4WM2-K-CE worm gear hand winch powder coat (Drill driveable), galvanised rope and 5BP5 Red Enamel Pedestal Base.

HEAVY-DUTY FEATURES in a Light-Duty Package

The 5PT5 Commander 500 portable davit crane (up to 300 kg) is packed with features, giving it the same versatility and flexibility of its larger cousins.

It is designed to lift, lower, and rotate loads 360 degrees easily and smoothly. Easy disassembly and reassembly with quick-release hardware and pins maximize portability.

A telescoping boom with adjustable boom angles makes it perfect for water/wastewater, manufacturing, marine, construction, and oil and gas applications.

Supplied complete with davit crane powder-coated in red, 4WM2-K-CE – worm gear hand winch with powder coat, red powder-coated base mount platform, and galvanised steel rope with load hook. Ø 6.3 mm, length 13.7 m.

Quick Facts

  • Load ratings up to 300 kg
  • Painted finish davit and pedestal base
  • 4WM2-K-CE – worm gear hand winch powder coat (Drill driveable)
  • 6.3 mm dia x 13.7 m galvanised rope with painted hook.
  • Davit manual operation
  • Rotates 360º
  • 2-Year Standard Warranty
  • DOC and CE Marked


Technical data

Max. load

300 kg
Max. load 1 (at jib length mm) 584 mm – 300 kg
Max. load 2 (at jib length mm) 762 mm – 235 kg
Max. load 3 (at jib length mm) 940 mm – 190 kg
Max. load 4 (at jib length mm) 1117 mm – 160 kg
Overall width 1676 mm
Overall height 2159 mm
Overall length 1676 mm
Lifting height max. cantilever arm extended 2159 mm
Max. crane arm length 1676 mm
Min. crane arm length 584 mm
Finish Red painted davit and base
Winch Red painted worm gear (Drill driveable)
Max. hook height with max. crane arm angle 2159 mm
Max. hook height with min. crane arm angle 1066 mm
Weight 59 kg
Product type lifting davit crane
Supplied pre-assembled, final assembly by customer

For more finishes and or winch options, see ECommander 500 full range page for a quotation. CLICK HERE

Enhanced Portability—The unit disassembles and reassembles easily, using quick-release hardware and pins for quick transport or storage—no tools are required.

PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use.  These products are not for lifting people or things over people.

See Product attachments for full specifications.

Additional/Optional accessories for 5PT5-M2+ are offered below

  • Additional davit sockets - pedestal mount, flush mount or wall mounts for multi-locations.

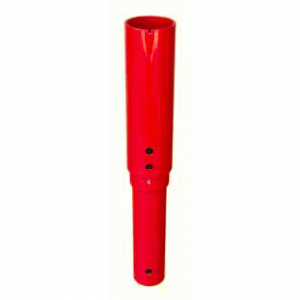

  • Base Extension - increase base height by 381mm
  • Extra wire ropes - Quick disconnect from winch - For faster pump retrieval.
  • Headache ball - keeps the rope taut with no load.
  • Rotational lock - Holds Davit in position.

Click links for prices and add to your quote request.
