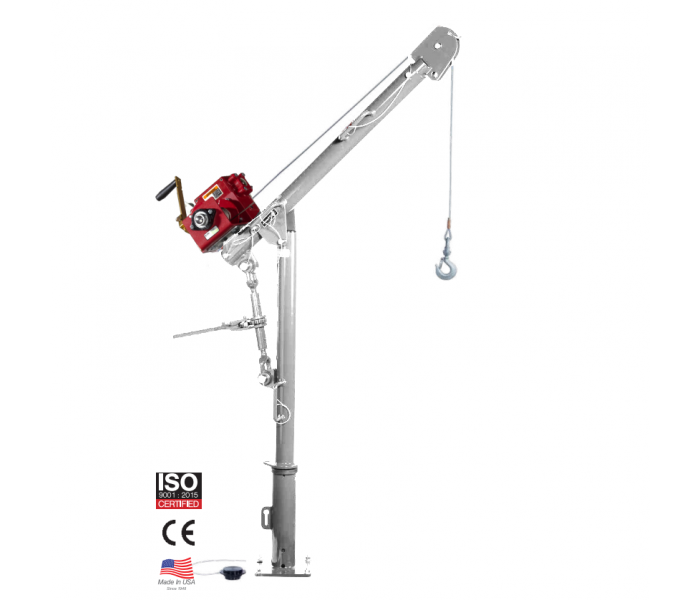

- Load ratings up to 300 kg
- galvanised finish davit and pedestal base
- 4WM2-K-CE – worm gear hand winch powder coat (Drill driveable)
- 6.3 mm dia x 13.7 m galvanised rope with painted hook.
- Davit manual operation
- Rotates 360º
- 2-Year Standard Warranty
- DOC and CE Marked
Technical data
|
Max. load |
300 kg |
| Max. load 1 (at jib length mm) | 584 mm – 300 kg |
| Max. load 2 (at jib length mm) | 762 mm – 235 kg |
| Max. load 3 (at jib length mm) | 940 mm – 190 kg |
| Max. load 4 (at jib length mm) | 1117 mm – 160 kg |
| Overall width | 1676 mm |
| Overall height | 2159 mm |
| Overall length | 1676 mm |
| Lifting height max. cantilever arm extended | 2159 mm |
| Max. crane arm length | 1676 mm |
| Min. crane arm length | 584 mm |
| Finish | galvanised davit and base |
| Winch | Red painted worm gear (Drill driveable) |
| Max. hook height with max. crane arm angle | 2159 mm |
| Max. hook height with min. crane arm angle | 1066 mm |
| Weight | 59 kg |
| Product type | lifting davit crane |
| Supplied | pre-assembled, final assembly by customer |
For more finishes and or winch options, see the Commander 500 full range page for a quotation. CLICK HERE
Enhanced Portability—The unit disassembles and reassembles easily, using quick-release hardware and pins for quick transport or storage—no tools are required.
PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use. These products are not for lifting people or things over people.
See Product attachments for full specifications.
Additional/Optional accessories for 5PT5G-M2+ are offered below

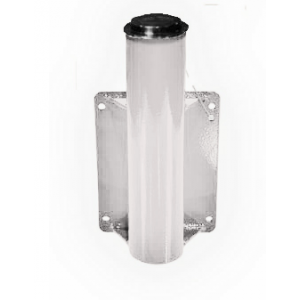

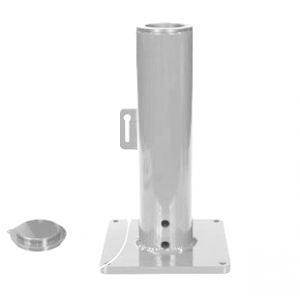

- Additional davit sockets - pedestal mount, flush mount or wall mounts for multi-locations.

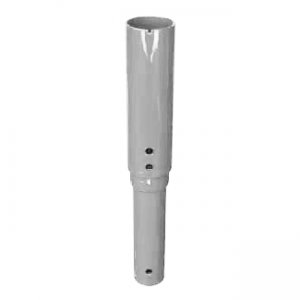

- Base Extension - increase base height by 381mm
- Extra wire ropes - Quick disconnect from winch - For faster pump retrieval.
- Headache ball - keeps the rope taut with no load.
- Rotational lock - Holds Davit in position.
Click links for prices and add to your quote request.
