Ensign Pedestal Base
5BP10
5B10G
5BP10S
5BP10S316
Thern Ensign 1000 Series Lifting Davit System up to 544 kg capacity - Thern Lifting Davits - Full Range - Thern Lifting Davits and Cranes - Thern - By Brand
In stock
SKU
TE1000LDS
Thern Ensign 1000 Series Lifting Davit System up to 544 kg capacity
Shipped directly from manufacturer partner - Delivery generally takes two weeks - For prices, carriage and lead time, request a quotation to your address - Please download the PDF E-form below for a quotation with all configurations and optional extras.
Thern Ensign 1000 Configurations and Optional Extras |
Price on Request
Key Features
- 554 kg capacity - 360 degree rotation
- Choice of finish, bases and manual or electric winch
- Adjustable height and reach for tall obstacles
- 2-Year Standard Warranty
- Declaration of conformity
Delivery Options
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

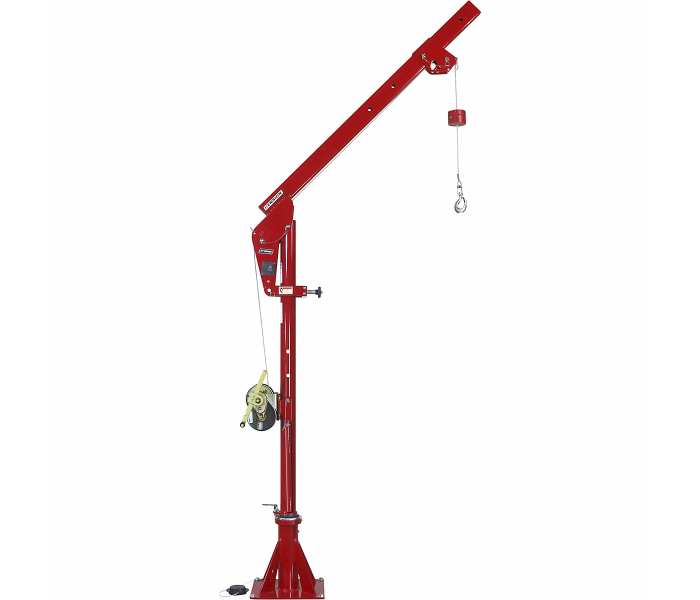

Ensign 1000 Lifting Davit/Crane System
PORTABLE LIFTING POWER for Tall Obstacles
The 5PA10 Ensign 1000 portable Davit crane (up to 544 kg) is designed to lift and smoothly rotate heavier, taller loads 360 degrees, with minimal boom adjustment. A longer mast and boom provide the extra hook height (up to 2565 mm) with a pedestal base) required to clear safety gates, rails, and other obstacles.
An ergonomic design, winch options, quick-disconnect feature, and boom adjustment knob make it extremely user-friendly. Included on all standard models, roller-ball bearings and rotation lock enhance unloading. Easy disassembly and reassembly with quick-release hardware and pins maximise portability for storage or use with other bases. Ideal for water/wastewater applications.
QUICK FACTS
What's included with this package
- Load ratings up to 544 kg
- Manual or power winch operation
- Rotates 360º
- Available in 5 finishes with pedestal, flush or wall-mounted bases
- 2-Year Standard Warranty
- DOC and CE Marked
Enhanced Portability
Disassemble and reassemble easily, using quick-release hardware and pins for quick transport or storage—no tools required.
Move your crane to another location while keeping the wire rope attached to the load using #the quick-disconnect feature. Insert the swaged-ball end of the wire rope into the keyhole slot on the tab of the pedestal base or into an optional wire rope keeper.
Durable Construction & Finish
Heavy-duty welded structural steel pipe and tubing limit deflection and met/exceeded ASTM standards. Corrosion-resistant, powder-coated frame, mast cap, and stainless-steel fasteners resist the elements for long service life. Galvanized, epoxy and 304 or 316 stainless-steel finishes are available for corrosive environments.
Flexible Configurations
Various base and mounting options, including pedestal, flush, and wall-mount, as well as wheel-base, help meet various lifting needs. A quick-mount winch bracket is standard (no tools required) and accommodates several Thern winches. Optional base extension provides additional height without affecting the crane’s load rating. It is ideal for wall- or flush-mount situations.
360° Rotation & Flexible Operation
Nylatron® bushing at the base enhances smooth, 360-degree rotation under load for precise load placement. Optional rotation lock maintains load position for easier unloading. Choose from manual, drill-drive, or powered winch (electric, pneumatic, or hydraulic motors) operation to accommodate a variety of light or heavy loads and travel distances. DC motors and various voltage AC motors are available.
STANDARD CONFIGURATIONS Rated up to 544 kg capacity
Description
5PA10-M1 Powder-coat crane with M4022PB-K spur gear hand winch
5PA10G-M1 Galvanized crane with M4022PB-K spur gear hand winch
5PA10-M2 Powder-coat crane with 4WM2V-K worm gear hand winch
5PA10G-M2 Galvanized crane with 4WM2V-K worm gear hand winch
5PA10S-M3 Stainless-steel crane with M4042PBSS-K spur gear hand winch
5PA10-E2 Powder-coat crane 4WP2V-K electric winch
5PA10X-E2X Epoxy-grey crane with epoxy-grey 4WP2VEGRA-K electric winch
Base Options PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use.
Ensign Flush-Mount Base
5BF10
5BF10G
5BF10S
5BF10316
5BF10X
Ensign Wall-Mount Base
5BW10
5BW10G
5BW10S
5BW10S316
5BW10X
PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use.
Roller Ball Bearing for 5PT10 Series Crane
Model Description
5PT10BRG Red electrostatic, powder-coat paint finish
5PT10BRG-S 304 stainless-steel, electro-polished finish for added protection against corrosion
5PT10BRG-S316 Stainless-steel, electro-polished finish for maximum protection against corrosion
5PT10BRG-SS 304 stainless steel, for use with stainless-steel base only
5PT10BRG-SS316 316 stainless steel, for use with stainless-steel base only
Electric winch limit switch
Wire ropes
Galvanized aircraft cable with swivel hook and swaged ball fitting
304 stainless steel wire rope with SS swivel hook and swaged ball fitting
Headache Ball
Model Description
HB10-12-25 Red enamel painted 10 lb fits 1/8” to 1/4” rope
HB10S-12-25 Stainless-steel 10 lb fits 1/8” to 1/4” rope
NOTICE: These products are not for lifting people or things over people.
See Product attachments for full specification
Some products may require a longer delivery time
