Ensign 500 Pedestal Base
5BP5
5B5G
5BP5S
5BP5S316
Thern Ensign 500 Series Lifting Davit System up to 226 kg capacity - Thern Lifting Davits - Full Range - Thern Lifting Davits and Cranes - Thern - By Brand
In stock
SKU
TE500LDS
Thern Ensign 500 Series Lifting Davit System up to 226 kg capacity
Shipped directly from manufacturer partner - Delivery generally takes two weeks - For prices, carriage and lead time, request a quotation to your address - Please download the PDF E-form below for a quotation with all configurations and optional extras.
Thern Ensign 500 Configurations and Optional Extras |
Price on Request
Key Features
- 226 kg capacity - 360 degree rotation
- Choice of finish, bases and manual or electric winch
- Adjustable height and reach for tall obstacles
- 2-Year Standard Warranty
- Declaration of conformity
Delivery Options
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Ensign 500 Lifting Davit/Crane System
PORTABLE LIFTING POWER for Tall Obstacles

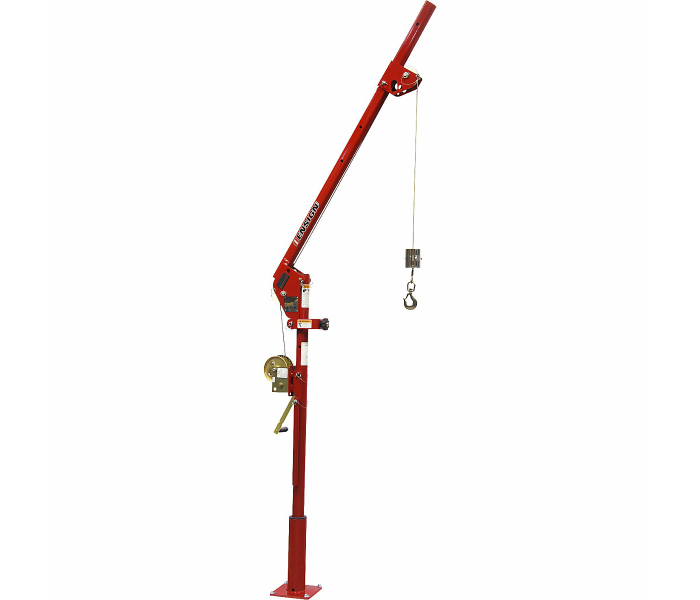

The 5PA5 Ensign 500 portable Davit crane (up to 226 kg) is designed to lift and smoothly rotate taller loads 360 degrees with minimal boom adjustment. A longer mast and boom provide the extra hook height (up to 2565 mm) with a pedestal base) required to clear safety gates, rails, and other obstacles.
An ergonomic design, winch options, quick-disconnect feature, and boom adjustment knob make it extremely user-friendly. Add an optional rotation lock to enhance unloading further. Easy disassembly and reassembly with quick-release hardware and pins maximize portability for storage or use with other bases. Ideal for water/wastewater applications.
QUICK FACTS
What's included with this package
- Load ratings up to 226 kg
- Manual or power winch operation
- Rotates 360º
- Available in 5 finishes with pedestal, flush or wall-mounted bases
- 2-Year Standard Warranty
- DOC and CE Marked
Enhanced Portability
Disassemble and reassemble easily, using quick-release hardware and pins for quick transport or storage—no tools required.
Move your crane to another location while keeping the wire rope attached to the load using #the quick-disconnect feature. Insert the swaged-ball end of the wire rope into the keyhole slot on the tab of the pedestal base or into an optional wire rope keeper.
Durable Construction & Finish
Heavy-duty welded structural steel pipe and tubing limit deflection and met/exceeded ASTM standards. Corrosion-resistant, powder-coated frame, mast cap, and stainless-steel fasteners resist the elements for long service life. Galvanized, epoxy and 304 or 316 stainless-steel finishes are available for corrosive environments.
Flexible Configurations
Various base and mounting options, including pedestal, flush, and wall-mount, as well as wheel-base, help meet various lifting needs. A quick-mount winch bracket is standard (no tools required) and accommodates several Thern winches. Optional base extension provides additional height without affecting the crane’s load rating. It is ideal for wall- or flush-mount situations.
360° Rotation & Flexible Operation
Nylatron® bushing at the base enhances smooth, 360-degree rotation under load for precise load placement. Optional rotation lock maintains load position for easier unloading. Choose from manual, drill-drive, or powered winch (electric, pneumatic, or hydraulic motors) operation to accommodate a variety of light or heavy loads and travel distances. DC motors and various voltage AC motors are available.
STANDARD CONFIGURATIONS Rated up to 226 kg capacity
Description
5PA5-M1 Powder-coat crane with M4022PB-K spur gear hand winch
5PA5G-M1 Galvanized crane with M4022PB-K spur gear hand winch
5PA5-M2 Powder-coat crane with 4WM2V-K worm gear hand winch
5PA5G-M2 Galvanized crane with 4WM2V-K worm gear hand winch
5PA5S-M3 Stainless-steel crane with M4042PBSS-K spur gear hand winch
5PA5-E2 Powder-coat crane 4WP2V-K electric winch
5PA5X-E2X Epoxy-grey crane with epoxy-gray 4WP2VEGRA-K electric winch
Base Options PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use.
Ensign 500 Flush-Mount Base
5BF5
5BF5G
5BF5S
5BF5316
5BF5X
Ensign 500 Wall-Mount Base
5BW5
5BW5G
5BW5S
5BW5S316
5BW5X
PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use.
Rotational lock
5P5LCK For pedestal, wall, and flush-mount bases, 316 stainless steal—available for use 5PA5, 5PF5, and 5PT5
Electric winch limit switch
Wire ropes
Galvanized aircraft cable with swivel hook and swaged ball fitting
304 stainless steel wire rope with SS swivel hook and swaged ball fitting
Headache Ball
Model Description
HB10-12-25 Red enamel painted 10 lb fits 1/8” to 1/4” rope
HB10S-12-25 Stainless-steel 10 lb fits 1/8” to 1/4” rope
NOTICE: These products are not for lifting people or things over people.
See Product attachments for full specification
Some products may require a longer delivery time
