- Load ratings up to 544kg
- galvanised finish davit and pedestal base
- M4312PB-CE spur gear hand winch
- 6.4 mm dia x 13.7 m galvanised rope with painted hook.
- Roller ball bearing
- Davit manual operation
- Rotates 360º
- 2-Year Standard Warranty
- DOC and CE Marked

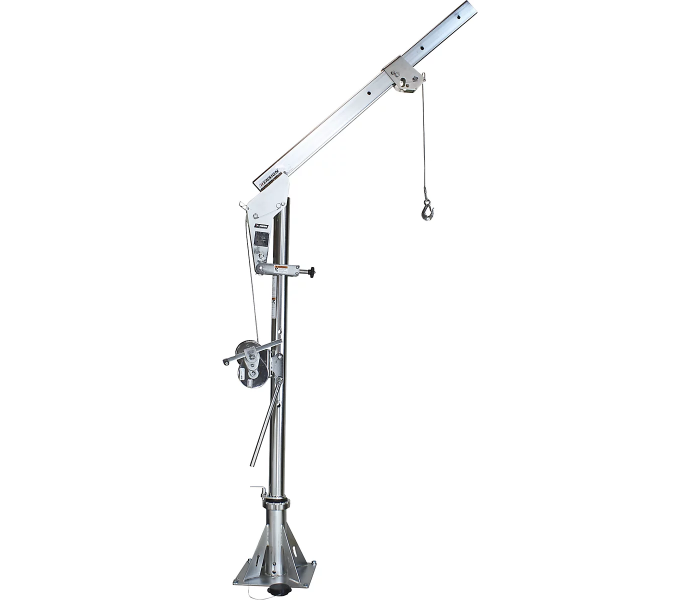

Thern Ensign 5PA10G-M1+ Lifting Davit with Spur Gear Hand Winch and Base - Thern Lifting Davits - Popular Configurations
In stock
SKU
5PA10G-M1+
Thern Ensign 5PA10G-M1+ Lifting Davit with Spur Gear Hand Winch and Base
Shipped directly from the Manufacturer's hub, Despatched from warehouse stock. For carriage and lead time, request a quotation to your delivery address.
£4,513.50
£3,761.25
Key Features
- 554 kg capacity - 360 degree rotation - Galvanised finish
- Adjustable height and reach for tall obstacles
- Complete with spur gear hand winch with rope and pedestal base
- 2-Year Standard Warranty
- Declaration of conformity
Delivery Options
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Thern Ensign 5PA10G-M1+ Galvanised Lifting Davit with M4312PB-CE spur gear hand winch, galvanised rope and 5BP10G Galvanised Pedestal Base.
PORTABLE LIFTING POWER for the Tallest Jobs
The 5PA10G Ensign 1000 portable Davit crane up to 544 kg is designed to lift and smoothly rotate heavier, taller loads 360 degrees, with minimal boom adjustment.
A longer mast and boom provide the extra hook height of 3048 mm with a pedestal base) required to clear safety gates, rails, and other obstacles. An ergonomic design, winch options, quick-disconnect feature, and boom adjustment knob make it extremely user-friendly.
All standard models include roller-ball bearings and rotation locks, which enhance unloading. Easy disassembly and
reassembly with quick-release hardware and pins maximizes portability for storage or use with other bases.
Ideal for water/wastewater applications.
Supplied complete with galvanised crane, manual wire rope winch with zinc-plated spur gear transmission, galvanised pedestal base, Roller ball bearing, which comes standard on the 5PA10 series crane, steel rope with load hook, galvanised rope, Ø 6.4 mm, length 13.7 m.
Quick Facts
Technical data
|
Max. load |
544 kg |
| Max. load 1 (at jib length mm) | 558 mm – 544 kg |
| Max. load 2 (at jib length mm) | 660 mm – 453 kg |
| Max. load 3 (at jib length mm) | 812 mm – 362 kg |
| Max. load 4 (at jib length mm) | 990 mm – 294 kg |
| Overall width | 1219 mm |
| Overall height | 3048 mm |
| Overall length | 1219 mm |
| Lifting height max. cantilever arm extended | 3048 mm |
| Max. crane arm length | 1219 mm |
| Min. crane arm length | 558 mm |
| Finish | galvanised davit and base |
| Winch | spur gear hand winch |
| Max. load 1 (at position mm) | 660 mm – 544 kg |
| Max. load 2 (at position mm) | 812 mm – 453 kg |
| Max. load 3 (at position mm) | 990 mm – 362 kg |
| Max. load 4 (at position mm) | 1219 mm – 294 kg |
| Max. hook height with max. crane arm angle | 3048 mm |
| Max. hook height with min. crane arm angle | 2362 mm |
| Weight | 105 kg |
| Product Type | Lifting Davit |
| Supplied | pre-assembled, final assembly by customer |
For more finishes and or winch options, see the Ensign 1000 full range page for a quotation. CLICK HERE
Enhanced Portability—The unit disassembles and reassembles easily, using quick-release hardware and pins for quick transport or storage—no tools are required.
PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use. These products are not for lifting people or things over people.
See Product attachments for full specifications.
Additional/Optional accessories for 5PA10G-M1+ are offered below
- Additional davit sockets - pedestal mount, flush mount or wall mounts for multi-locations.
- Extra wire ropes - Quick disconnect from winch - For faster pump retrieval.
- Headache ball - keeps the rope taut with no load.
Click links for prices and add to your quote request.
