- Load ratings up to 226kg

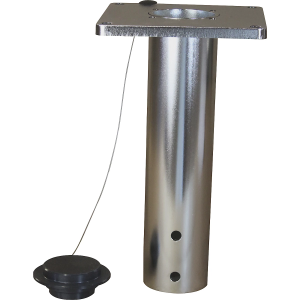

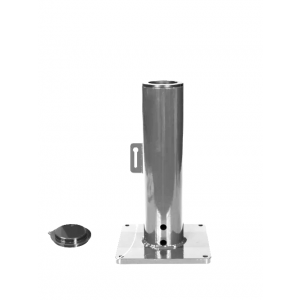

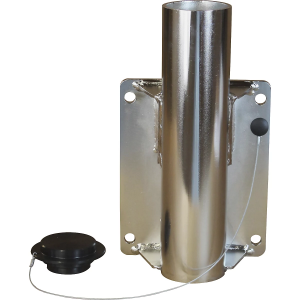

- 304 stainless steel finish davit and pedestal base
- M4042PBSS-CE stainless steel spur gear hand winch
- 4.8 mm dia x 13.7 m stainless steel rope with hook.
- Davit manual operation
- Rotates 360º
- 2-Year Standard Warranty
- DOC and CE Marked
Technical data
| Max. load | 227 kg |
| Max. load 1 (at jib length mm) | 355 mm – 227 kg |
| Max. load 2 (at jib length mm) | 431 mm – 181 kg |
| Max. load 3 (at jib length mm) | 558 mm – 136 kg |
| Max. load 4 (at jib length mm) | 711 mm – 113 kg |
| Overall width | 914 mm |
| Overall height | 2565 mm |
| Overall length | 914 mm |
| Lifting height max. cantilever arm extended | 2565 mm |
| Max. crane arm length | 914 mm |
| Min. crane arm length | 355 mm |
| Finish | 304 stainless steel Davit and base |
| Winch | M4042PBSS-CE spur gear hand winch |
| Max. load 1 (at position mm) | 431 mm – 225 kg |
| Max. load 2 (at position mm) | 558 mm – 181 kg |
| Max. load 3 (at position mm) | 711 mm – 136 kg |
| Max. load 4 (at position mm) | 914 mm – 113 kg |
| Max. hook height with max. crane arm angle | 2565 mm |
| Max. hook height with min. crane arm angle | 1879 mm |
| Weight | 51 kg |

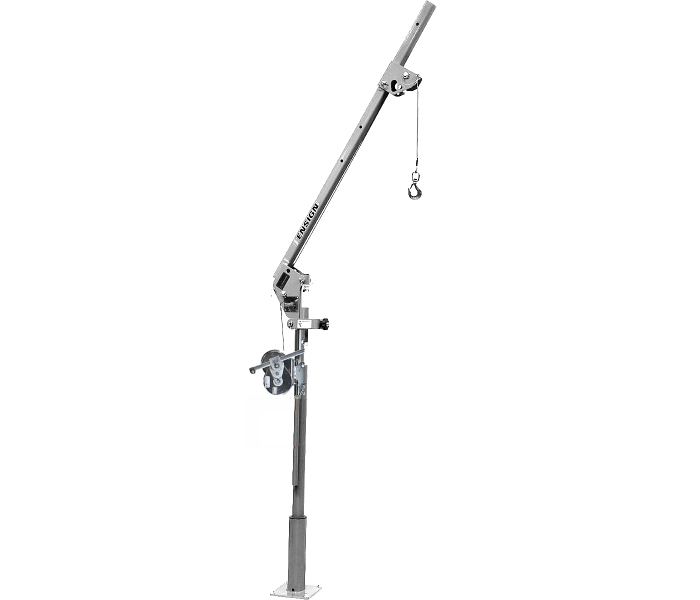

| Product type | Lifting davit crane |
| Supplied | pre-assembled, final assembly by customer |
For more finishes and or winch options, see Ensign 500 full range page for a quotation. CLICK HERE
Enhanced Portability—The unit disassembles and reassembles easily, using quick-release hardware and pins for quick transport or storage—no tools are required.
