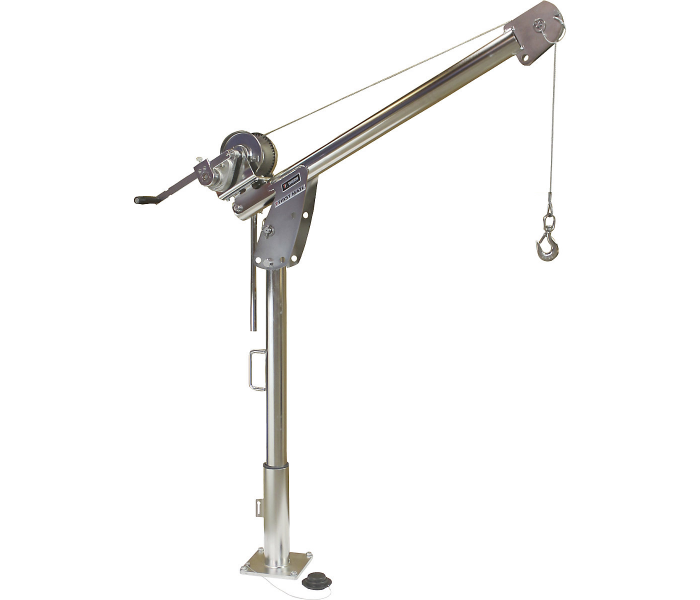

- Load ratings up to 385 kg
- 304 stainless steel finish davit and pedestal base
- M4042PBSS-CE spur gear hand winch stainless steel
- 6.3 mm dia x 13.7 m 304 stainless steel with hook
- Manual operation
- Rotates 360º
- 2-Year Standard Warranty
- DOC and CE Marked
Technical data
| Maximum load rating | 385 kg |
| Max. load 1 (at jib length mm) | 609 mm – 385 kg |
| Max. load 2 (at jib length mm) | 889 mm – 272 kg |
| Max. load 3 (at jib length mm) | 1066 mm – 225 kg |
| Overall width | 1066 mm |
| Overall height | 1778 mm |
| Overall length | 1066 mm |
| Lifting height max. cantilever arm extended | 1778 mm |
| Max. crane arm length | 1066 mm |
| Min. crane arm length | 609 mm |
| Finish | 304 stainless steel Davit and socket |
| Winch | M4042PBSS-CE spur gear hand winch stainless steel |
| Max. hook height with max. crane arm angle | 1778 mm |
| Max. hook height with min. crane arm angle | 1016 mm |
| Total Weight | 44 kg |
| Supplied | pre-assembled, final assembly by customer |
For more finishes and or winch options, see First Mate's full range page for a quotation. CLICK HERE
Enhanced Portability—The unit disassembles and reassembles easily, using quick-release hardware and pins for quick transport or storage—no tools are required.
