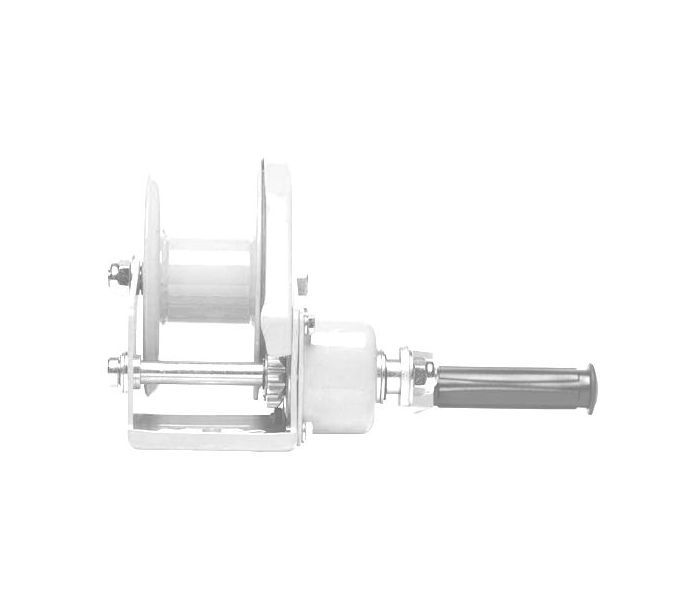

Tiger Brake Hand Winch Model BHW 1200N-OCP Noiseless 275 kg Lifting Capacity
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Rated lifting capacity 275 kg last layer.
Main Features
- High quality multi-purpose winch
- Automatic load-actuated brake can hold the load in any position
- Compact, light-weight and rugged construction
- Gears and brakes fully covered to prevent dust, dirt and rain contamination
- Heat treated gears
- Very low operator effort required for easy operation
- Universal mounting plate
- For cable and strap ( Not included )
- This model is protected by our unique coating – OCP (Organic Compound Protection)
- Ratchet handle/Ceiling mount options available
- Noiseless 1200lb model
Download full technical data sheet
Technical Data
| Product Code | Pulling Capacity (lbs/kg) | Lifting Capacity (lbs/kg) | Gear Ratio | Hub Diameter (mm) | Handle Length (mm) | Unit Weight (kg) | Cable Diameter (mm/inch) | Cable Storage Cap. (m) | Strap Storage Cap. (m) | ||
| 1st Layer | 3rd Layer | Last Layer | |||||||||
| BHW-1200 | 1200/550 | 1200/550 | 864/392 | 600/275 | 4.1:1 |  50 | 210 | 3.3 |  4.8/ 3/16 | 23 | 8.5 |
Tiger Brake Winch
The Tiger Brake Winch is a high quality multi-purpose winch. The twin pawl automatic brake ensures the load remains suspended when the crank is released and avoids unchecked descent of the load. These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009.
Certification:
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Noiseless 1200lb model:
This model is equipped with a patented quiet brake design that is virtually silent and fully automatic. Best suited to those locations where quiet is required, such as schools, hospitals and theatres.
Corrosion Protection Option:
This model is protected by our unique coating – OCP (Organic Compound Protection)
The uniqueness of this coating gives unprecedented long term reliability and superior corrosion resistance and protection in the most severe conditions. The OCP coating provides excellent friction protection and has been proven to be effective through at least 1000 hours of the ASTM B 117 Salt Spray Test. The coating gives the properties of stainless steel without the cost implications.
