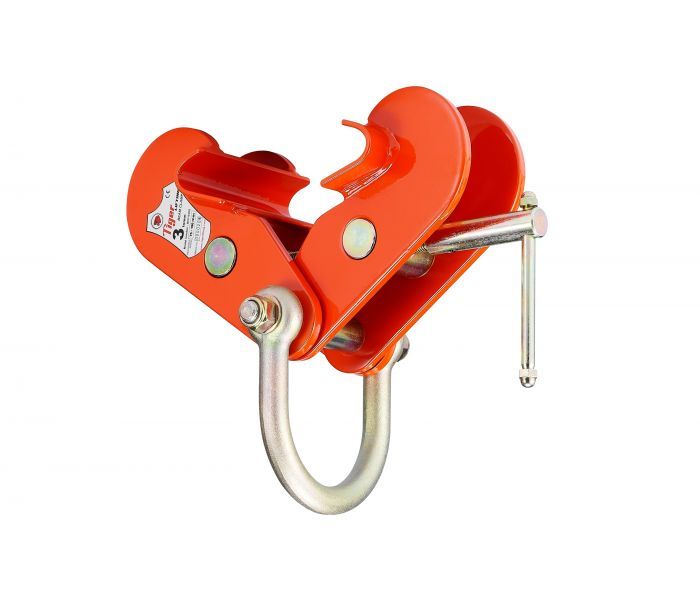

Tiger Fixed Jaw Heavy Duty Beam Clamp with Shackle type BCF
Key Features
- Range from 1.0 t to 10t capacity
- Quick and versatile rigging point for hoisting equipment
- Shackle suspension point - Suitable for pulling and lifting at angles across the beam
- Up to 90° side loading with no deration - 15° cross loading with no deration
- Highly flexible – for lifting, pulling or as a semi-permanent anchor point
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Tiger Fixed Jaw Heavy-Duty Beam Clamp with Shackle BCF
Range from 1.0 t to 10t
- Quick and versatile rigging point for hoisting equipment
- Shackle suspension point
- Suitable for pulling and lifting at angles across the beam
- Up to 90° side loading with no deration
- 15° cross-loading with no deration
- Highly flexible – for lifting, pulling or as a semi-permanent anchor point
- Evenly distributed loads achieved through maximum jaw surface area
- Multidirectional adjusting screw spindle ensures a high clamping force to the various flange sizes within its capacity
- Beam width range 75mm to 457mm
- Operating temperature of -50°C to +50°C
- 4:1 factor of safety
- These units meet and exceed all the requirements within BS EN 13155:2003+A2:2009 and AS4991.
Certification:
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Technical Data
| Product Code | Capacity (tonne) | Beam range adjustment mm | |
| Net weight kg | |||
| BCF-0100 | 1.0 | 75-195 | 5.5 |
| BCF-0200 | 2.0 | 75-195 | 6.5 |
| BCF-0300 | 3.0 | 100-350 | 12.0 |
| BCF-030S | 3.0 | 75-190 | 9.5 |
| BCF-0500 | 5.0 | 100-310 | 14.5 |
| BCF-050S | 5.0 | 75-190 | 11.0 |
| BCF-1000 | 10.0 | 120-350 | 26.5 |
