Topal TI Clamps for Lifting Laying Pipes in Trenches
Key Features
- Lifting capacities 500 kg and 1,000 kg
- Semi-automatic and fully automatic models
- Clamps pipe diameters 230 mm to 900 mm
- Semi-automatic model: manual grab action and automatic locking of the grab in the open position
- Automatic model: the grab and laying down operation is performed without any manual operation from the operator on the grab.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Topal TI Clamps for Lifting Laying Pipes in Trenches
For lifting and laying pipes, bars, tubes designed to accommodate a wide variety of materials.
Specification
| Part No: | Type | Capacity (kg) | Opening (mm) |
| TIS05 230-400 | Semi-automatic clamp | 500kg | 230-400mm |
| TIA05 230-400 | Automatic clamp | 500kg | 230-400mm |
| TIS05 380-650 | Semi-automatic clamp | 500kg | 380-650mm |
| TIA05 380-650 | Automatic clamp | 500kg | 380-650mm |
| TIS1450-900 | Semi-automatic clamp | 1000kg | 450-900mm |
| TIA1 450-900 | Automatic clamp | 1000kg | 450-900mm |

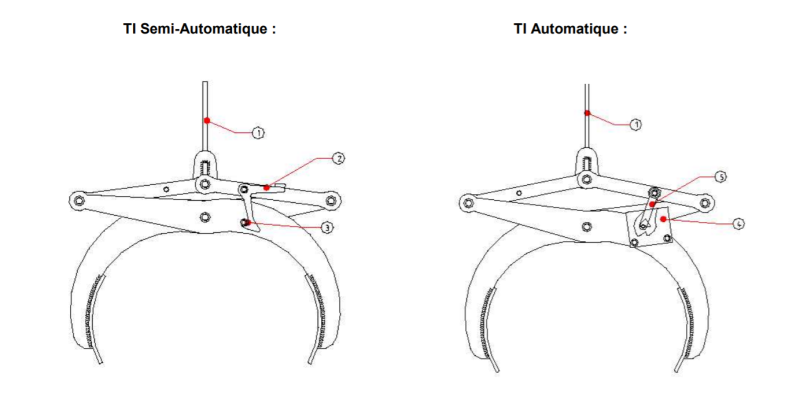

Semi-automatic clamp
The clamp is locked open. To carry out the lift, activate the lever (manual unlocking) and hold it up whilst starting off the lift. When laying down, the clamp automatically locks itself open.
Automatic clamp (double-effect lock)
Allows load handling without operator intervention. To operate, lower the clamp onto the load, this willdisengage the mechanism and lift theload. When lowering: lower the load to the resting point and continue to lower until the locking mechanism is engaged, locking the clamp open. The clamping is proportional to the load to minimise the risk of deformation.
Ve rtical lifting only. Check the load is horizontally level when lifting with a single clamp. Use in pairs with a lifting beam for lifting long pipes. It is possibile to add a covering on the bearing parts for fragile surfaces.
Operating temperature: -20° to + 100° C.
• Two available models: semi-automatic and automatic.
• Wide bearing surface for better handling.
• Proportional clamping to minimise any damage to the load.
