Yale CPS Electric Chain Hoists 125 - 250 kg 110/230/400V - Yale Hoists - Yale - By Brand
Yale CPS Electric Chain Hoists 125 - 250 kg 110/230/400V
Key Features
- Easy installation and maintenance - IP54 as standard - 48v Control voltage.
- Ideal for jibs and light crane systems
- Two year warranty, repair and full after-sales service
- We recommend this excellent product with confidence
- Rugged construction with loads of features make this your ideal choice
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
One big little hoist.
It keeps lifting and lifting.
The CPS electric chain hoist lifts loads up to 250kgs - yet weighs from only 12kgs.
Trolley not included (sold separately)
keeps lifting and lifting - up to 240 motor starts per hour. It’s easy to
install and maintain making it ideal for jib and light crane systems.
like all Yale products) and offers unequalled levels of build quality
and reliability. Our two year warranty, repair and full after-sales
service will allow you to recommend this excellent new product with
confidence.
- Easy installation and maintenance.
- IP54 as standard.
- 48v Control voltage.
- Overload protection device as standard.
- 10-pocket oblique-lay lift wheel for smooth chain operation,
constant chain speed and reduced chain wear. - Optional impact-resistant chain container.
- Gear train lifetime lubricated with non-oxidising grease.
- Alloy load chain for smooth operation and maximum chain life.
- Thermally protected hoist duty motor.
- Dual braking system - D.C. plus regenerative.
- Rugged cast aluminium alloy hoist frame.
- 5 : 1 factor of safety.
- Small, compact design for commercial applications.
- Rigid latch-style upper hook prevents tangling of power cord.
- Hardened forged steel latch-style lower hook rotates 3600.
- Totally enclosed non-ventilated hoist frame protects the
motor from environmental contamination. - True vertical lift.
- Precision bearings used in the hoist.
- Two year warranty.
- Designed and manufactured by Yale.
| Model | Capacity (SWL) (kg) |
Power Supply | Lifting Speed (m/min) |
ED Duty (%) | **Weight (kg) |
| CPS 110/1-4 | 125kg | 110v 1ph 50hz | 4mpm | 40 | 12 |
| CPS 230/1-4 | 125kg | 230v 1ph 50hz | 4mpm | 40 | 12 |
| CPS 400/1-4 | 125kg | 400v 3ph 50hz | 4mpm | 40 | 12 |
| CPS 400/1-10 | 125kg | 400v 3ph 50hz | 10mpm | 40 | 12 |
| CPS 110/2-2 | 250kg | 110v 1ph 50hz | 2mpm | 40 | 14 |
| CPS 230/2-2 | 250kg | 230v 1ph 50hz | 2mpm | 40 | 14 |
| CPS 400/2-2 | 250kg | 400v 3ph 50hz | 2mpm | 40 | 14 |
| CPS 400/2-5 | 250kg | 400v 3ph 50hz | 5mpm | 40 | 14 |
| **Standard 3m HOL (Height of Lift) | |||||

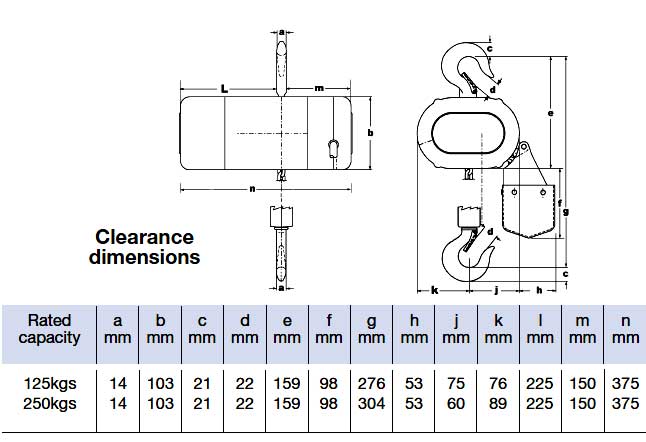

See the product attachment for more details (PDF download)
