Yale CPV Electric Chain Hoist Full Range upto 5,000 kg 400V
Key Features
- Fixed suspension and manual and powered travel trolley options
- Single speed or dual speed lifting
- Main line contactor for increased safety
- Thermal Overload Protection as standard across the range
- Many optional extras available
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Capacities 250 - 5.000 kg
Standard height of lift is 3 metres - For longer lift show your requirement in:Special requirements
Request a quotation for all models on this page or to buy online popular models at discounted prices.
The electric chain hoist model YaleVigo combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications. The integrated limit switch for the highest and lowest hook position considerably extends the working life span of the slip clutch, motor, and gearbox.
Features
- Classification 1 Am. As required (with appropriate changes to lifting capacity resp. duty cycle) the model YaleVigo can also be re-classified up to 3 m.
- Mains contactor as standard, for increased safety.
- 2-year warranty (excluding wear parts) and a lifetime lubricated gearbox.
- Thermal overload protection as a standard for the whole range. Optimised housing for improved cooling.
- Duty cycle 50 % ED for single speed.
- Electromagnetic spring pressure brake holds the load safely even in the event of power failure.
- The externally adjustable slip clutch is designed to guarantee a permanent connection between the load and the brake.
- Motor protected to IP 55 (ACC. to VDE 0530), against ingress of dust or water.
- Standard operating voltage: 400 V, 3-phase, 50 Hz, alternatively 460 V, 3-phase, 60 Hz. Single speed motors re-connectable to 230 V, 3-phase, 50 Hz.
- Increased operating safety through 42 V control voltage (low voltage control) and an encapsulated pendant control to IP 65.
- Suspension lug for compact dimensions and easy integration in closed-eye constructions.
- Chain guide made of fibre coated polyamide for increased wear resistance.
- The standard, oil bath lubricated and case hardened gearbox has a helical gearing for particularly smooth running and enhanced lifetime.
Options:
- Suspension hook
- Flexible chain container.
- Manual and electric trolleys.
- Festooned cable system.
- Stainless steel load chain.
- Remote control (in combination with integrated trolley).
- Other operating voltages
Lug Suspended, Hook Suspension, Push and Powered Trolley Hoists
Model |
Capacity |
Number of Chain Falls | Chain Dimension d x p (mm) | FEM Classification |
Lifting speed main lift m/min | Lifting speed fine lift m/min |
Hoist motor kW | Motor rating ED% | Net weight * suspension lug (kg) | Net weight* push trolley** (kg) |
| CPV 2-8 |
250 | Discontinued | ||||||||
| CPVF 2-8 |
250 | 1 | 4 x 12.2 | 1 Am | 8/2 | 2 | 0.37/0.09 | 33/17 | 25 | 40 |
| CPV 5-4 |
500 | 2 | Discontinued | |||||||
| CPVF 5-4 |
500 | 2 | 4 x 12.2 | 1 Am | 4/1 | 1 | 0.37/0.09 | 33/17 | 26 | 41 |
| CPV 5-8 |
500 | 1 | 5 x 15.1 | 1 Am | 8 | - | 0.75 | 50 | 26 | 41 |
| CPVF 5-8 |
500 | 1 | 5 x 15.1 | 1 Am | 8/2 | 2 | 0.75/0.18 | 33/17 | 27 | 42 |
| CPV 10-4 |
1000 | 2 | 5 x 15.1 | 1 Am | 4 | - | 0.75 | 50 | 28 | 43 |
|
CPVF |
1000 | 2 | 5 x 15.1 | 1 Am | 4/1 | 1 | 0.75/0.18 | 33/17 | 29 | 44 |
|
CPV |
1000 | 1 | 7.1 x 20.5 | 1 Am | 8 | - | 1.5 | 50 | 58 | 77 |
| CPVF 10-8 |
1000 | 1 | 7.1 x 20.5 | 1 Am | 8/2 | 2 | 1.5/0.37 | 33/17 | 59 | 78 |
| CPV 20-4 |
2000 | 2 | 7.1 x 20.5 | 1 Am | 4 | - | 1.5 | 50 | 63 | 82 |
| CPVF 20-4 |
2000 | 2 | 7.1 x 20.5 | 1 Am | 4/1 | 1 | 1.5/0.37 | 33/17 | 64 | 83 |
| CPVF 25-8 |
2500 | 1 | 11 x 31 | 1 Am | 8/2 | 2 | - | - | - | 161 |
| CPVF 50-4 |
5000 | 2 | 11 x31 | 1 AM | 4/1 | 1 | - | - |
TBA |
|

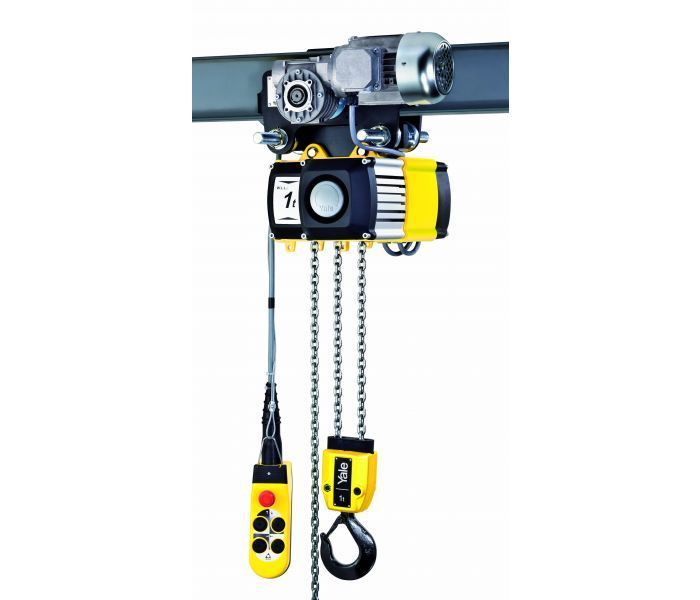

*Model Yale Vigo CPV/CPVF with integrated electric trolley
| Suitable for Model | Capacity (kg) | Beam Flange Width (b) (mm) | Beam Flange Thickness (t .max) (mm) | Curve Radius (min) (m) | Electric Trolley Travel Speed (m/min @ 50Hz) | Electric Trolley Motor (kW @ 50Hz) |
| from CPV 2-8 up to CPVF 10-4 | 1000kg | 58 - 180 | 19 | 0.9 | 18 or 18/4.5 | 0.18 or 0.18/0.06 |
| from CPV 2-8 up to CPVF 10-4 | 1000kg | 80 - 300 | 19 | 0.9 | 18 or 18/4.5 | 0.18 or 0.18/0.06 |
| from CPV 10-8 up to CPVF 20-4 | 2000kg | 58 - 180 | 19 | 1.15 | 18 or 18/4.5 | 0.18 or 0.18/0.06 |
| from CPV 10-8 up to CPVF 20-4 | 2000kg | 80 - 300 | 19 | 1.15 | 18 or 18/4.5 | 0.18 or 0.18/0.06 |
| From CPVF 25-8 up to CPVF50-4 | 5000kg | 80 - 300 | 19 | - | 18 or 18/4.5 | 0.18 or 0.18/0.06 |
* Weight for standard 3 m lift. Other lifting heights on request.
** For trolleys type A and B: Additional weight for geared trolley (VTG): 2.5 kg.
*** For electric trolley (VTE) with 2 speeds +2.0 kg.
