Pressure gauges model GGY
The use of pressure gauges is recommended when the operating pressure (the force of the connected cylinder) should be monitored. Yale pressure gauges are equipped with a stainless steel housing and an acrylic plastic face cover plate.
To absorb pressure shocks gauges are glycerine-filled, thus contributing to long service life. Also, when fitted to a motor pump, the pointer will stay jitter-free.
For the calculation of applied cylinder forces corresponding converting charts (pressure vs. force) can be supplied for all Yale hydraulic cylinders free of charge. (Contact us)
Technical data Pressure gauge only model GGY-631
GGY pressure gauges. For use when the operating pressure (the force of the connected cylinder) needs to be monitored. To absorb shock loading, these Yale gauges are glycerine filled. Also available calibrated as an optional extra.(Contact us)
Model | EAN-No. 4025092* |
Pressure range bar |
Scale diameter mm |
Glycerine-damped | Oil port DIN 16288 |
Spanner size |
Accuracy class % |
---|---|---|---|---|---|---|---|
GGY-631 | *154796 | 0-1000 | 63 | yes | G 1/4 | 14 | 1.6 |

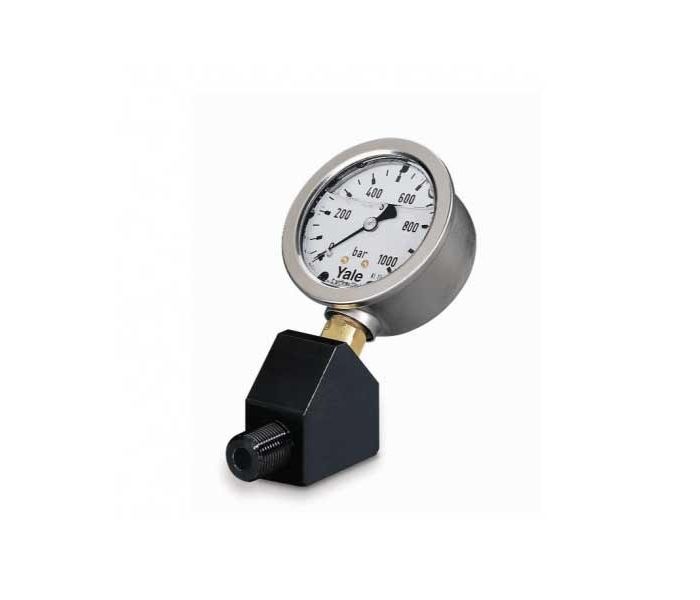

Technical data Pressure gauge set model GYA-63:
GYA pressure gauge set. Suitable for connection to all HPS hand pumps. Assembled and ready to use. Consists of pressure gauge and corresponding gauge adaptor.
