Yale Handy Ratchet Lever Hoist (stamped steel)
Key Features
- Yale's Smallest & Lightest Ratchet Lever Hoist
- 250 & 500 kg Capacity
- Standard Height of Lift 1.5M, Contact Sales For Longer Height of Lift
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
We say: " Ideal tool box hoist - Extremely lightweight and compact - Have one ready for those lifting and pulling jobs."
Download specification (PDF) in CMCO Catalogue online
Features
- The enclosed design protects the internal parts from contamination.
- The short hand lever is fitted with an ergonomic rubber grip.
- All parts of the disc type load brake are manufactured from high-quality materials and are corrosion protected.
- Standard free chaining device to quickly attach the load or to pull the chain through the hoist in both directions.
- Alloyed steel link chain with zinc-plated resp. yellow chromated finish, in accordance with national and international standards and regulations.
- Drop forged suspension and load hooks are made from non-aging, high tensile steel, and fitted with robust safety latches.
The extremely low tare weight and very compact design make the hoist easy to use even in very confined working conditions. The standard free chaining device serves to quickly attach the load or to pull the chain through the hoist in both directions.
|
Model
|
Capacity (SWL)
kgs
|
Falls of Load chain
|
Height of Lift
(metres) |
Article No.
|
Closed
Height mm |
Weight
@ std Height of lift kgs |
|
Yalehandy 250
|
250
|
1
|
1.5
|
N02300018
|
240
|
2.2
|
|
Yalehandy 500
|
500
|
1
|
1.5
|
N02300070
|
282
|
2.8
|

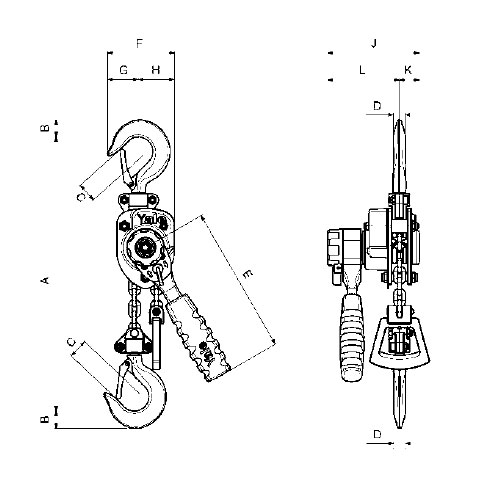

| Model | Yalehandy 250 | Yalehandy 500 |
| A min., mm | 240 | 282 |
| B, mm | 20 | 17 |
| C, mm | 21 | 24 |
| D, mm | 14 | 12 |
| E, mm | 160 | 160 |
| F, mm | 72 | 104 |
| G, mm | 33 | 38 |
| H, mm | 39 | 66 |
| J, mm | 98 | 116 |
| K, mm | 21 | 36 |
| L, mm | 77 | 80 |
